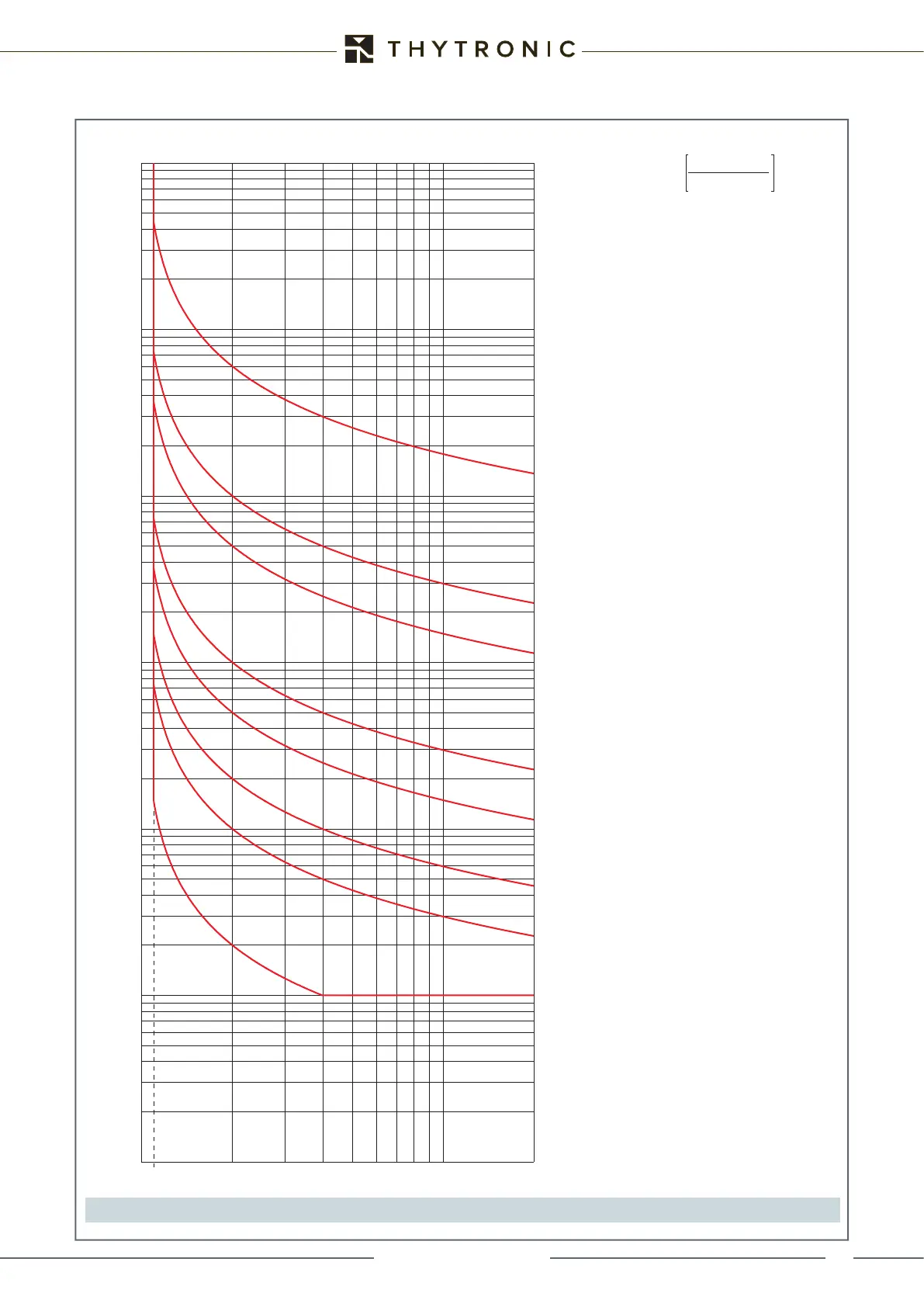

Thytronic DMC3S - DMC3 S - IEC Normal Inverse Curves (Type A)

99
DMC3S - Manual - 08 - 2021
F_51-IECA-Char.ai
1.1
2 3 4 5 6 7 8 9 10 20
I /I>inv
0.01
0.1
1
10
100
1000
10000
t [s]
10 s
60 s
t>inv
5 s
1 s
0.5 s
0.2 s
0.1 s
0.02 s
t =
t>inv
·
[(I/I>inv)0.02-1]
0.14
Note: the set operating time refers to a ratio I/I>inv = 700
— DMC3S - IEC normal inverse curves (type A)
