CHAPTER 3: FOOTRESTS

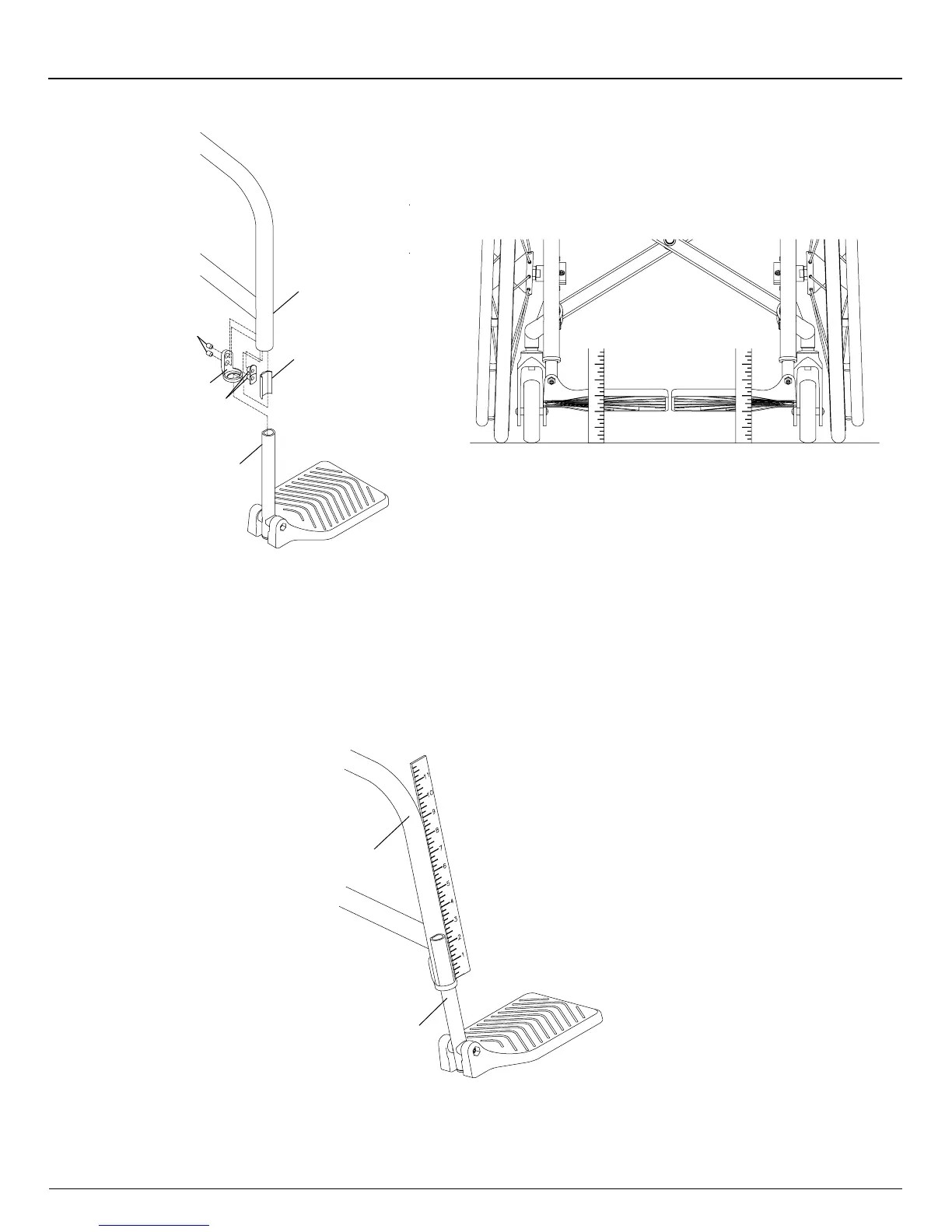

Figure 3-3
Footrest Height Adjustment
Figure 3-2
Replacing the Footrest
Frame
Wedge
T-Nuts
Clamp Cover
Allen Screws
Extension Tube
Note: When adjusting the height of the footrest, make sure that at least 1-3/4” of the extension tube remains up inside
the frame tube. See Figure 3-4.
4. Repeat the procedure from Step 2 on the right side of the footrest.
5. When both sides are set at an equal distance from the oor, fully tighten the two Allen screws into the two T-Nuts
securing the footrest to the frame, making sure the clamp covers remain securely butted up against the end of the frame
tube.
Figure 3-4
Footrest Height Adjustment
Extension
Tube
Frame
