2GX/AERO X Owner’s Manual
CHAPTER 3: FOOTRESTS
Swing Away Hangers
The swing away hangers can be rotated inward or outward to be removed or positioned out of the way.
To swing the hanger inward or outward, push the release lever and push the hanger inward or outward. See Figure 3-12.
To remove the hanger from the wheelchair swing it outward and pull it upward.
To replace the hanger on the frame:
1. Align the frame plug with the frame hole.
2. Holding the hanger, not the release lever, swing the hanger until the pivot bushing locks into place in the pivot receiver.

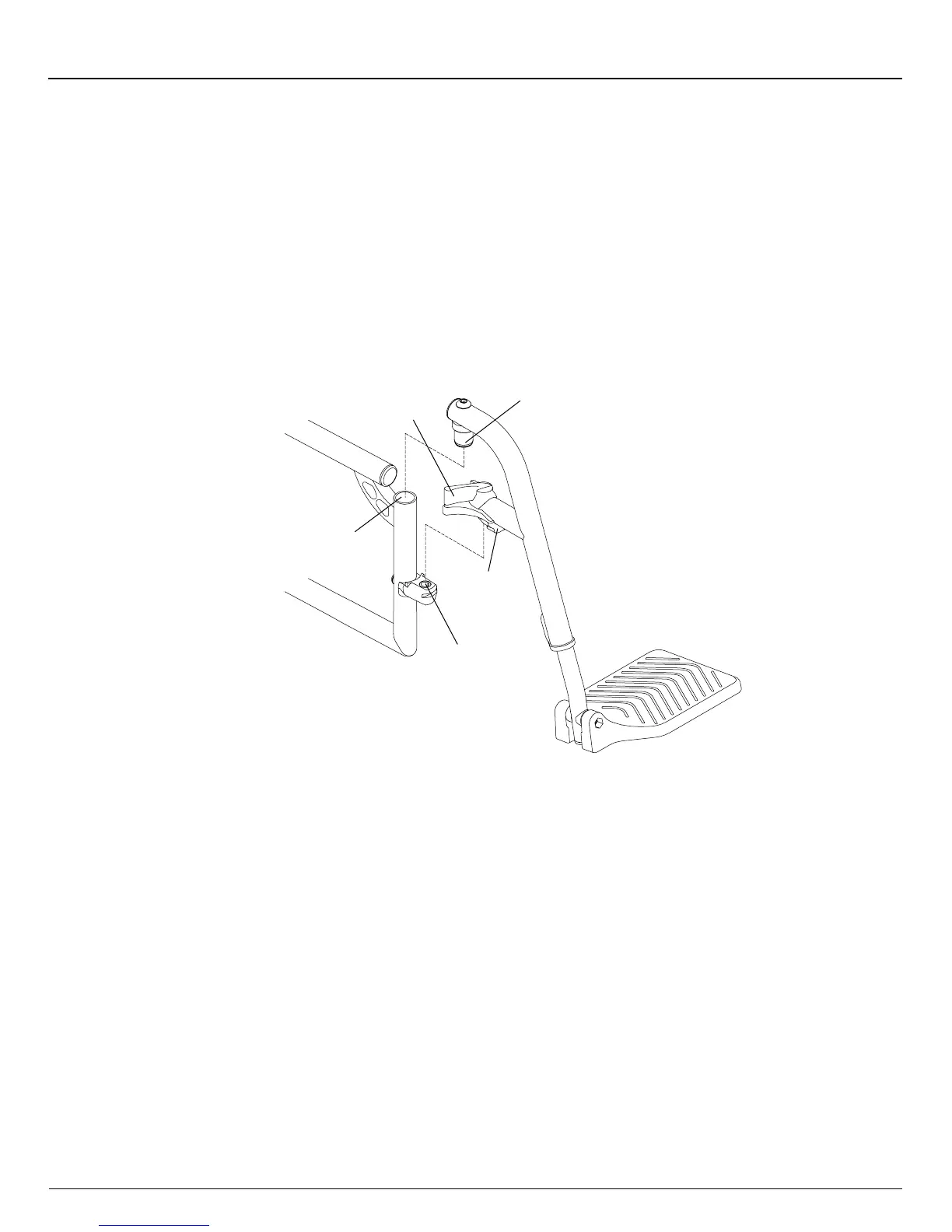

Figure 3-12
Swing Away Hanger
Pivot
Bushing
Pivot
Receiver
Frame
Plug
Frame
Hole
Release
Lever
1-Piece, Over-Center Folding Footrest
Note: The 1-Piece, Over-Center Folding Footrest is not available on 2GX or Aero X chairs with swing away hangers.
Adjusting the Height/Replacing
You can adjust the height of, or replace, the footrest by using the tools and following the procedures for adjusting the height
of, or replacing, a ip up footrest as set forth under “Flip-Up Footrest; Angle Adjustable Flip-Up Footrest; Depth Adjustable
Flip-Up Footrest; and Depth and Angle Adjustable Flip-Up Footrest” on pages 3-1 to 3-3.
Note: In following those procedures, it will be necessary to adjust both sides of the frame simultaneously because the left
and right footrests are attached to operate as a 1-piece footrest. See Figure 3-13.
Adjusting the Angle
You can adjust the height and the angle of the footrest by using the tools and following the procedures for adjusting the
angle of the Angle Adjustable Flip-Up Footrest as set forth under “Flip-Up Footrest; Angle Adjustable Flip-Up Footrest;
Depth Adjustable Flip-Up Footrest; and Depth and Angle Adjustable Flip-up Footrest” on pages 3-1 to 3-3.
