TiLite Aero X - Changing the Backrest Angle

4-2
2GX/AERO X Owner’s Manual
OM_2GX/AERO X_0413RevA
CHAPTER 4: BACKRESTS, PUSH HANDLES AND STROLLER HANDLES

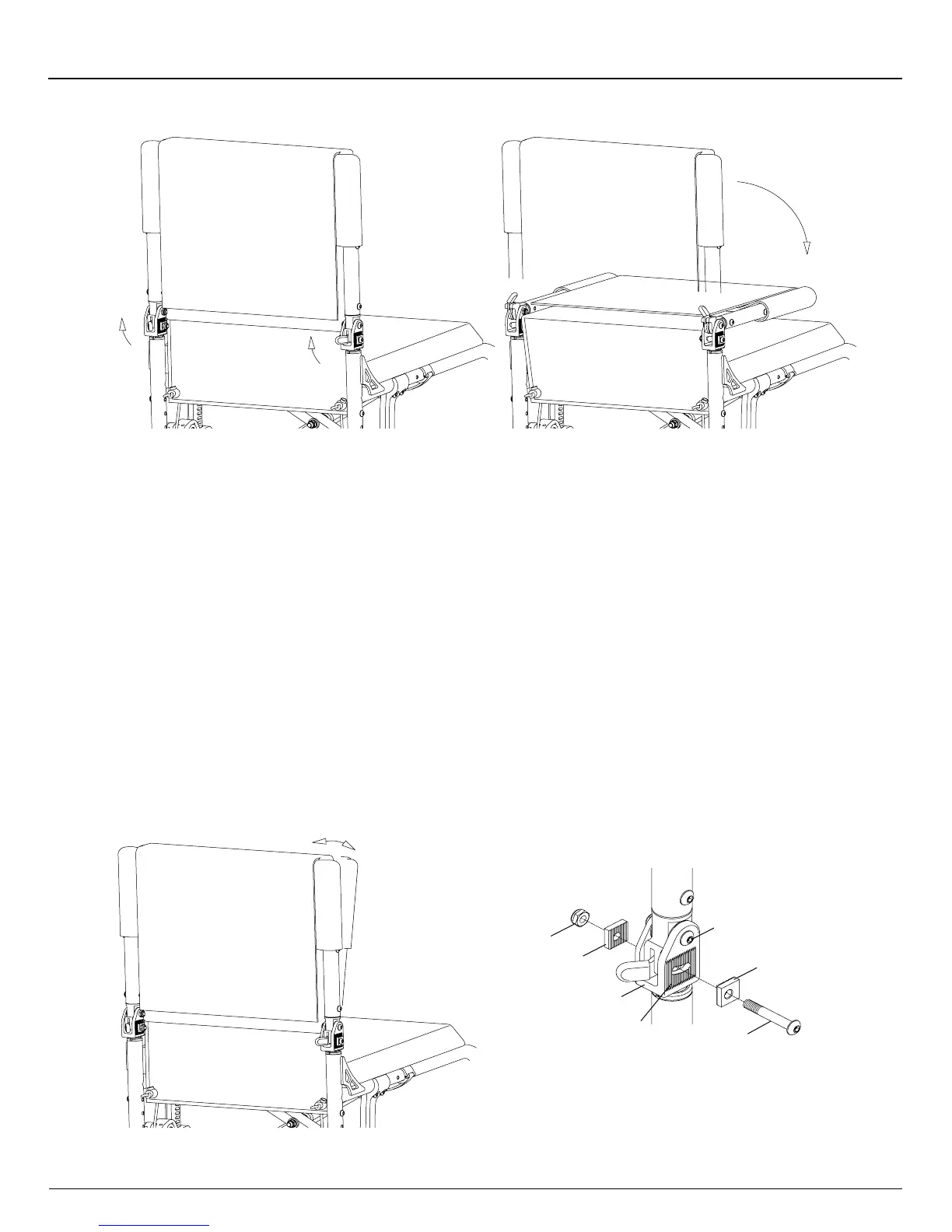

Figure 4-2
Angle Adjustable Fold Down
Figure 4-3
Folding the Backrest
Changing the Backrest Angle
Tools Needed:
• 5/32” Allen Wrench
• 7/16” Open End Wrench
1. Lock the backrest in the unfolded, upright position. See Figure 4-4.
2. Loosen, but do not remove the lower Allen screw. See Figure 4-5. This Allen screw must be sufciently loose
so that both locking blocks can disengage from the locking grooves on the backrest pivot bracket.
3. Adjust the angle of the backrest to the desired angle.
4. Carefully re-engage both locking blocks, being extremely careful to ensure that ALL of the grooves in the locking blocks
are engaged in grooves on the backrest pivot bracket. Make sure that no part of either locking block overhangs past the
front or rear of the backrest pivot bracket.
5. Securely tighten the lower Allen screw.
6. Disengage the backrest latches and fold down the backrest. If the backrest does not fold easily, you may need to
loosen the upper Allen screw (but not the lower Allen screw). See Figure 4-5.
7. Repeat Steps 1 through 6 with the backrest cane on the opposite side of the chair.
Figure 4-4
Changing the Backrest Angle
Figure 4-5
Changing the Backrest Angle
Locknut
Locking
Block
Upper
Allen
Screw
Locking
Block
Backrest Pivot
Bracket
Locking
Grooves
Lower Allen
Screw
