CHAPTER 5: ARMRESTS

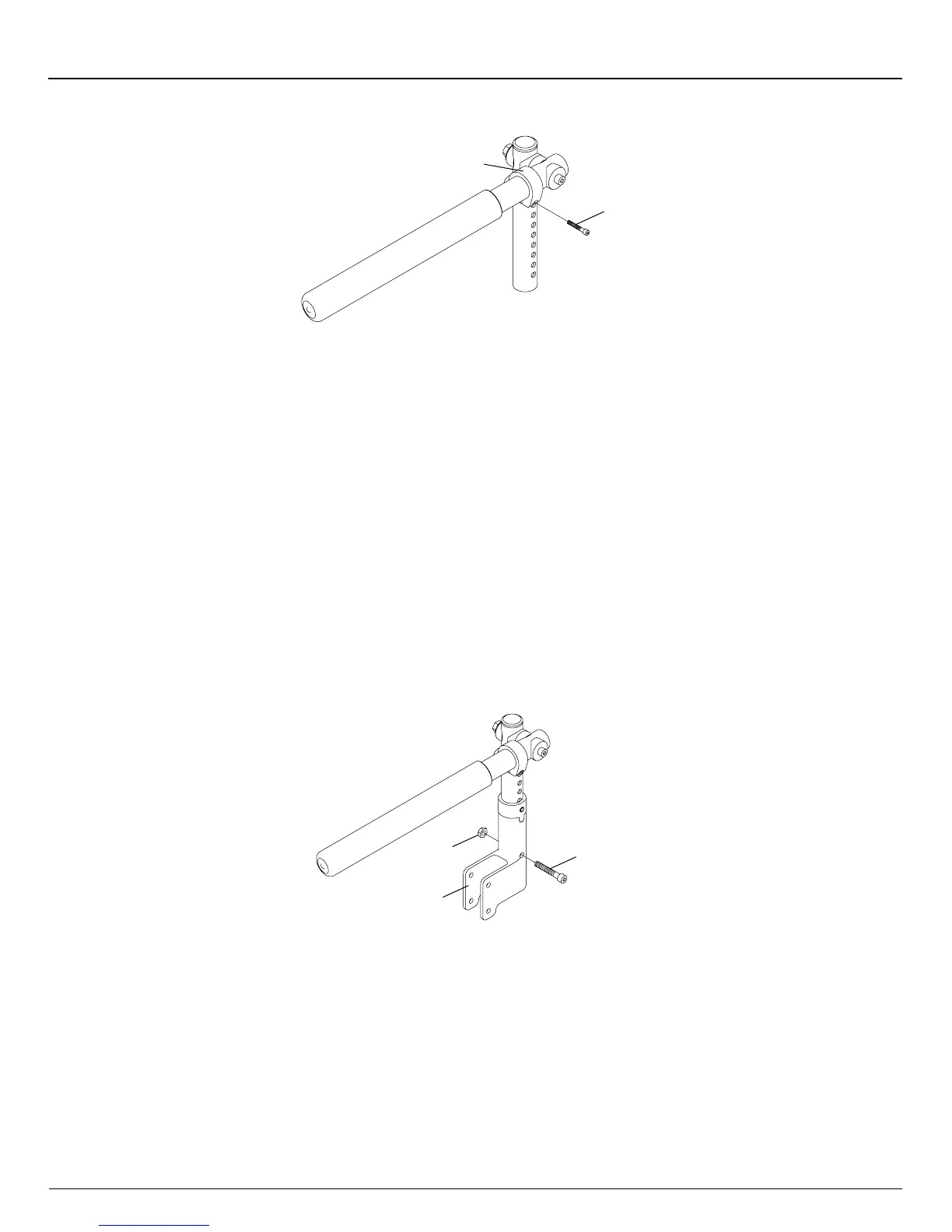

Figure 5-9
Adjusting the Armrest Angle
Allen
Screw
Stop Clamp
Locking the Armrest in Place
(Adjustable Depth)
Tools Needed:
• 3/16” Allen Screw
• 7/16” End Wrench
1. To lock the armrest in place after the armrest is seated in the receiver in the desired position, insert the locking Allen
Screw through the armrest receiver and the armrest. See Figure 5-10.
2. Securely tighten the locknut to the locking Allen screw.
Note: TiLite wheelchairs do not ship with locking Allen screws and locknuts. If you require the locking Allen screws and
locknuts, please contact TiLite Customer Service.
Note: Locking the armrest in place only prevents the armrest from swinging away. The armrest will still ip back.
Note: Depending on the conguration of your chair (including rear wheel height and armrest height) it may not be possible
to lock the armrest in place.
Figure 5-10
Locking the Armrest in Place
Allen
Screw
Receiver
Locknut
