CHAPTER 12: REAR WHEELS
Tools needed:
• 7/8” Open End Wrench
• Two 3/4” Open End Torque Wrenches
1. Place one of the 7/8” open end wrench onto the camber plug and use the second 3/4” open end torque wrench to
remove the axle sleeve. See Figure 12-5.
Note: If you have only one washer and do not have a lock washer, your rear wheel spacing package will include a lock
washer. Always use a lock washer.
2. Add or remove the spacers you need to increase/ decrease your rear wheel spacing, keeping the two washers against
the head of the axle sleeve.
3. After you have adjusted your rear wheel spacing, reinstall the axle sleeve in the camber plug and hand-tighten.
4. Using a torque wrench, tighten the axle sleeve to 230 inch-pounds.

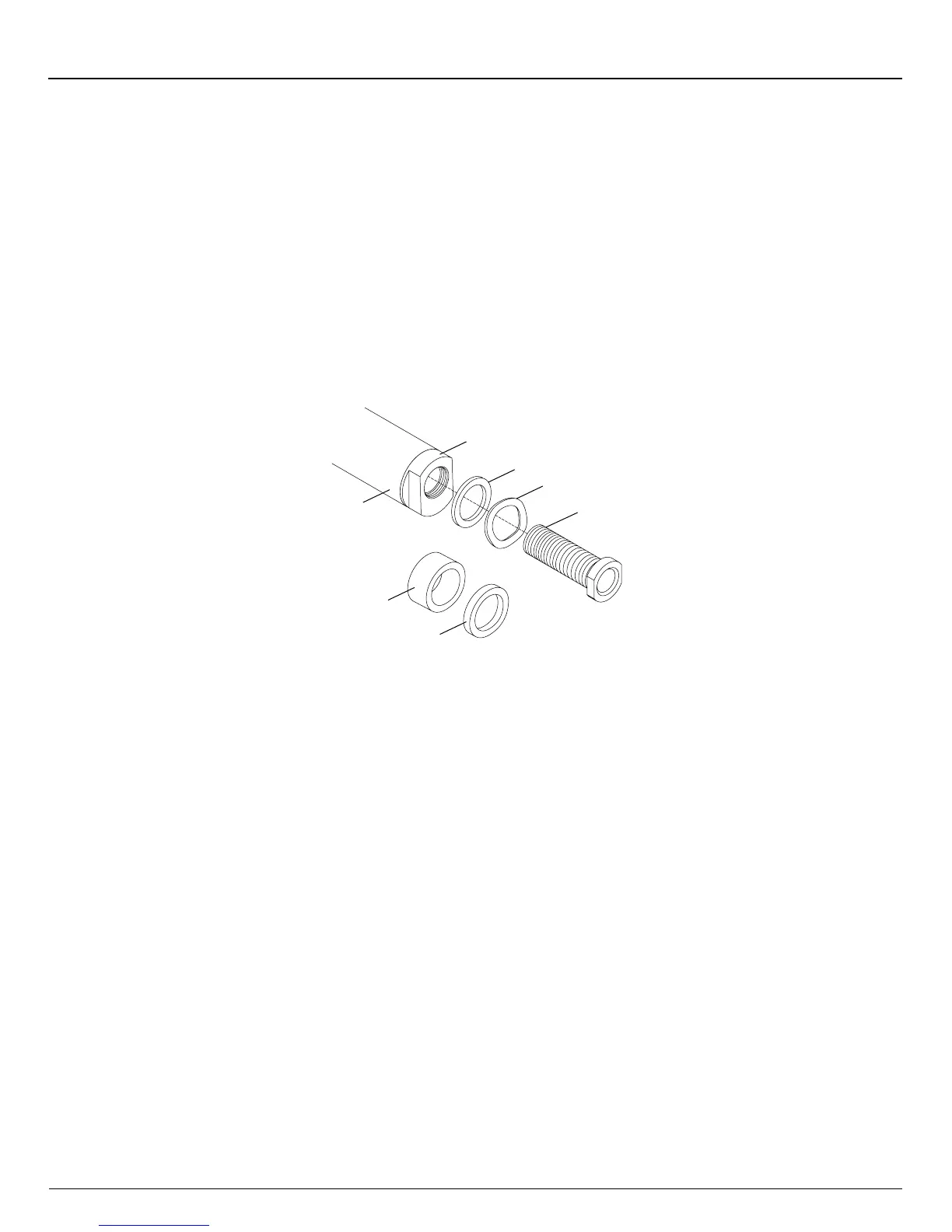

Figure 12-5
Adjusting the Rear Wheel Spacing
Camber Plug
Washer
Lock Washer
Axle
Sleeve
Camber
Tube
1/2” Spacer
1/8” Spacer
