TiLite Aero X - Page 92

13-3
OM_2GX/AERO X_0413RevA
2GX/AERO X Owner’s Manual
CHAPTER 13: ANTI-TIPS

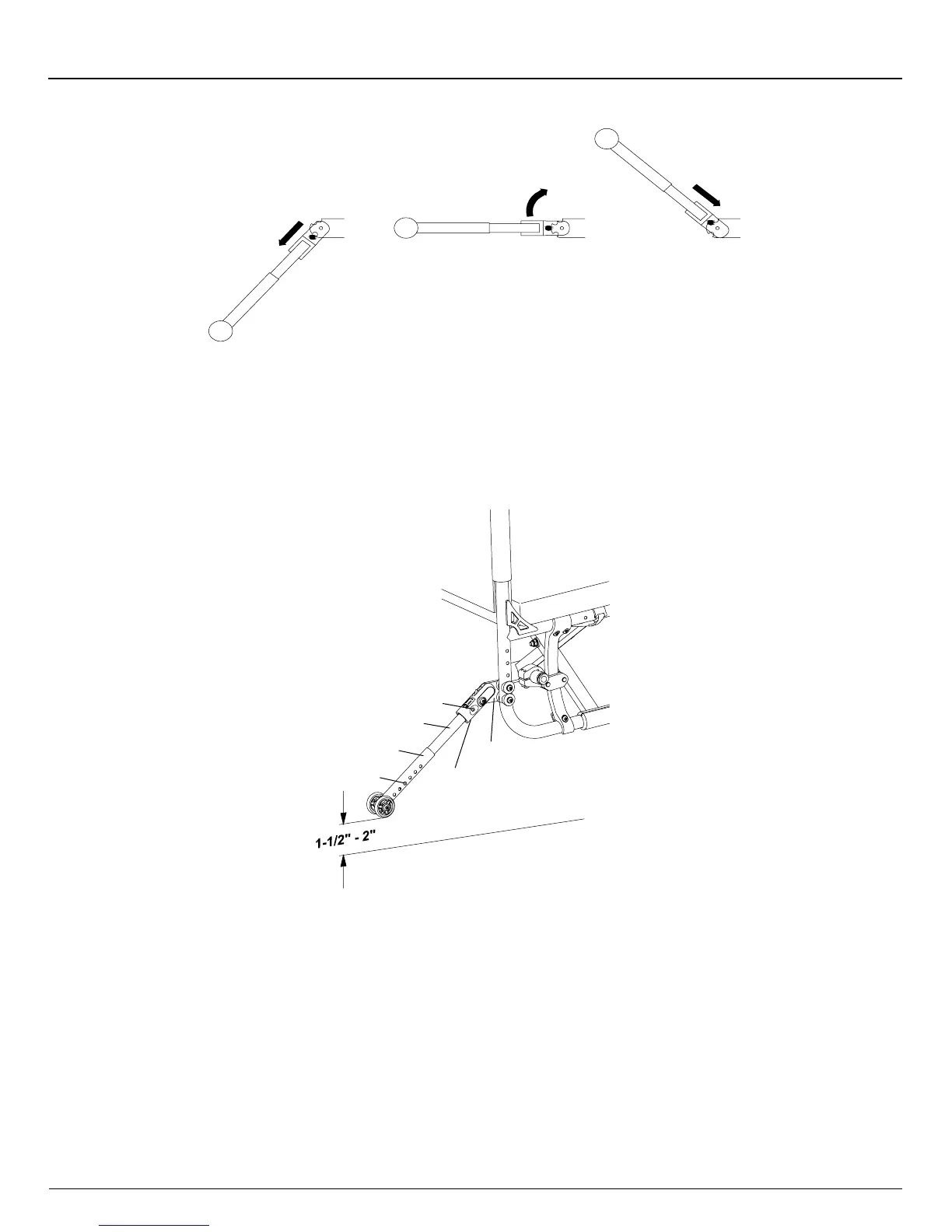

Figure 13-5
Disengaging
Adjusting
To adjust the height of the User-Friendly Anti-Tip, press the two release buttons on the telescoping lower tube and adjust
the height of the lower tube until the wheels are within 1-1/2” to 2” off the ground. See Figure 13-6.
Figure 13-6
Adjusting
Mounting Plate
Release
Button
Upper Tube
Lower Tube
Release Button
Receiver
Removing
To remove the User-Friendly Anti-Tip extension tube, press the release buttons on the anti-tip receiver and pull the upper
extension tube out of the anti-tip receiver. See Figure 13-6.
Mounting
I
WARNING
Only an authorized TiLite dealer or qualied technician should install the anti-tip receiver. If you ignore this Warning, you
may fall, tip over or lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair.
I WARNING
Do NOT disassemble the anti-tip mounting assembly (see Figure 13-7). If you ignore this Warning, you may fall, tip over or
lose control of the wheelchair and seriously injure yourself or others or damage the wheelchair.
