Assembly instructions
This operation is irreversible. It must be done with great care following the method described. We
advise you to have it done by a professional!

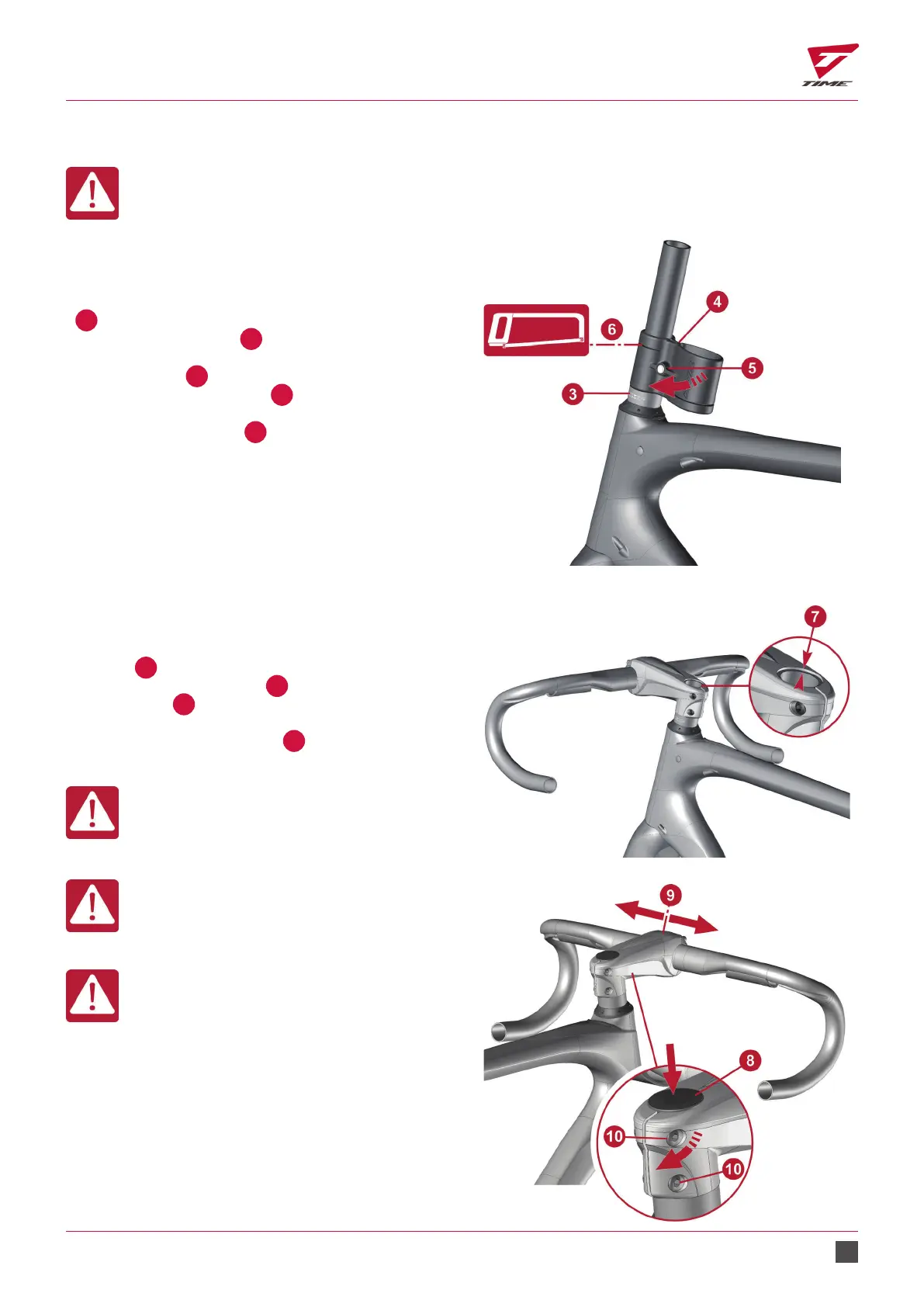

Cutting of the fork pivot in the case of a TIME
stem:
- Determine the pivot length that needs to be cut.
- Remove the stem (without removing any spacers
3
that have been selected).
- Position the cutting tool
4
Ref: 55008073
provided.
- Tighten the tool
5
taking care that it attens on the
directional bowl or the shims
3
.
- Cut the pivot taking care not to deviate (use a saw
blade in good condition)
6
.
- Clean the burrs and sawdust.
Scylon 20.jpg
Replace the stem
- Position the stem and check that the top of the pivot
is well back by 0.5 to 2 mm from the upper face of
the stem
7
.
- Insert the compression cap
8
inside the pivot.
- Align the stem
9
.
- Tighten the stem on the pivot with a tightening
torque of 5 Nm on each screw
10
, using a torque
wrench.
The compression cap is specic to the
Scylon model.
No other model of compression cap
should be used.
Exceeding the recommended torque
does not improve the handling of the
stem, but may instead irreversibly
destroy the fork pivot.
Detailed instructions for mounting the
TIME MONOLINK stem are also available.
If you are installing a stem from a manufacturer
other than TIME:
- Raise the height of the stem shaft.
- Subtract 1 mm from the elevation.
- Position the standard cutting tool at a distance of 1 mm.
- Cut the pivot, taking care not to deviate (use a saw
blade in good condition).
- Clean the burrs and sawdust.
Scylon 21.jpg
Scylon 22.jpg
