Assembly instructions

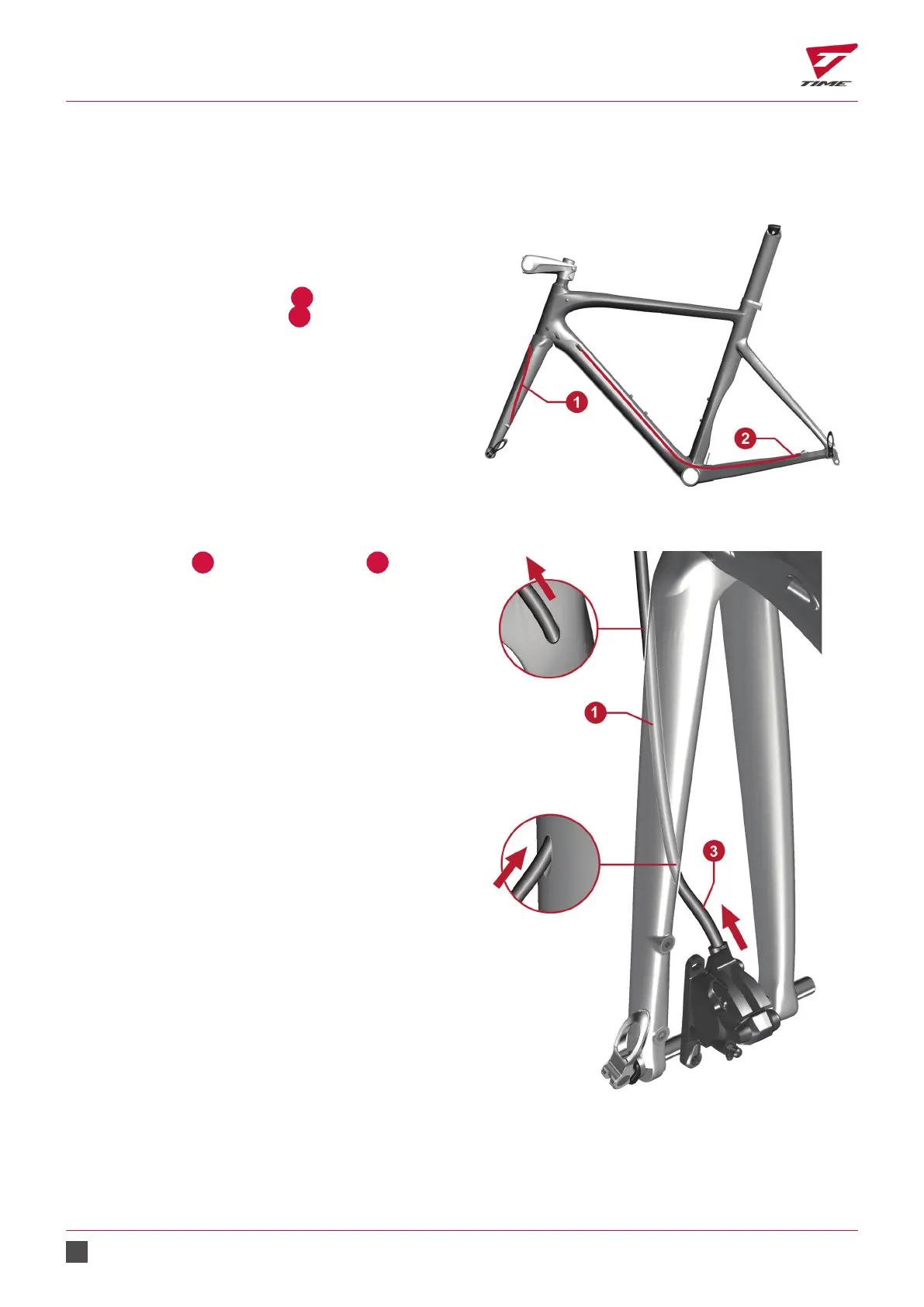

5.8.2 Mounting disc brake callipers, Scylon frame discs.
Before the assembly, read the technical instructions by the brake system manufacturer.
The routing of the hydraulic sheaths is done
internally, and to facilitate their assembly and the
replacement, sheath guides are pre-assembled at the
factory:
- Front brake inner sheath guide
1
.
- Rear brake inner sheath guide
2
.
Scylon 75.jpg
Assembly of the sheath and the brake calliper:
- Feed the sheath
3
into the sheath guide
1
of the
fork.
Scylon 76.jpg
