Time Scylon - Page 37

Assembly instructions

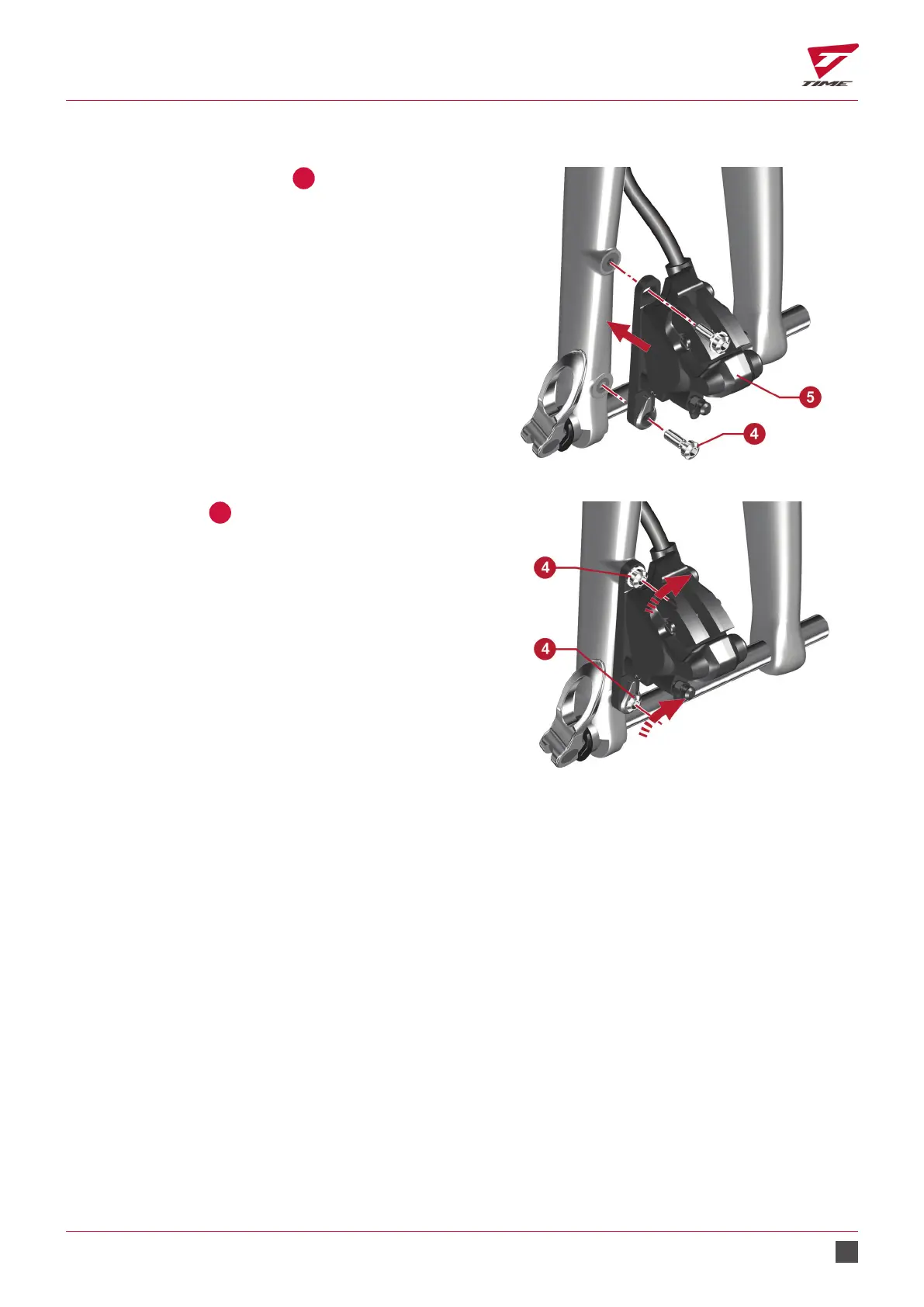

- Position the front brake calliper
5
.
- Align the calliper with the disc mounted on the
wheel.
Scylon 77.jpg
- Tighten the screws
4
to a torque of 7 Nm using a
torque wrench.
- Refer to the manufacturer's instruction manual,
for cutting to length and connect the sheath to the
brake lever, adjusting the calliper on the disc, and
bleeding the brake system.
Scylon 78.jpg
NIM_Scylon-01
37
EN
