Assembly instructions

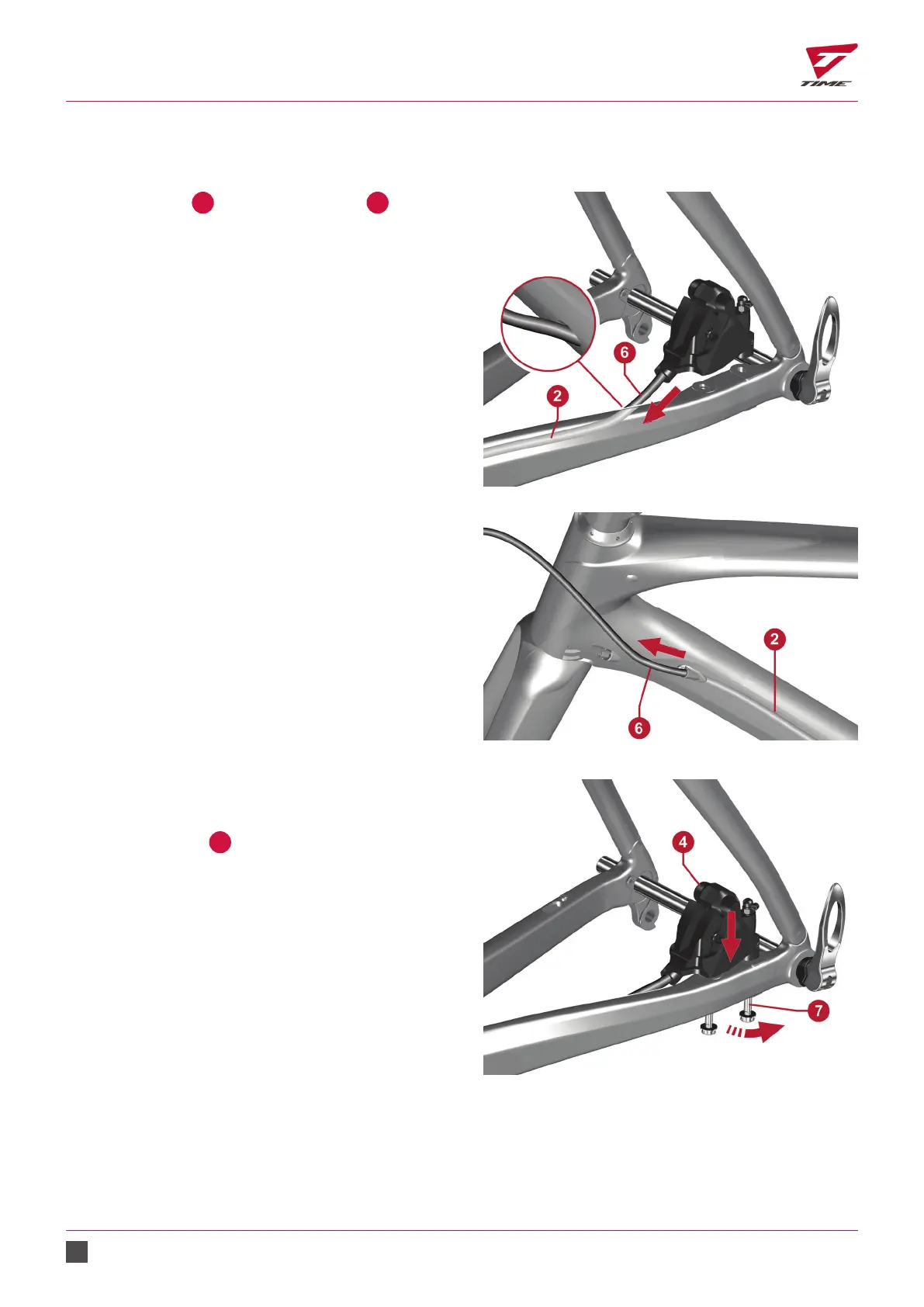

Assembly of the sheath and rear brake calliper:
- Feed the sheath
6
into the sheath guide
2
of the frame.
Scylon 79.jpgScylon 80.jpg
- Position the rear brake calliper.
- Align the calliper with the disc mounted on the
wheel.
- Tighten the screws
7
to a torque of 7 Nm using a
torque wrench.
- Refer to the manufacturer's instruction manual, for
cutting to length and connecting the sheath to the
brake lever, adjusting the calliper on the disc, and
bleeding the brake system.
