Time Scylon - Assembly of an Electric Transmission

Assembly instructions

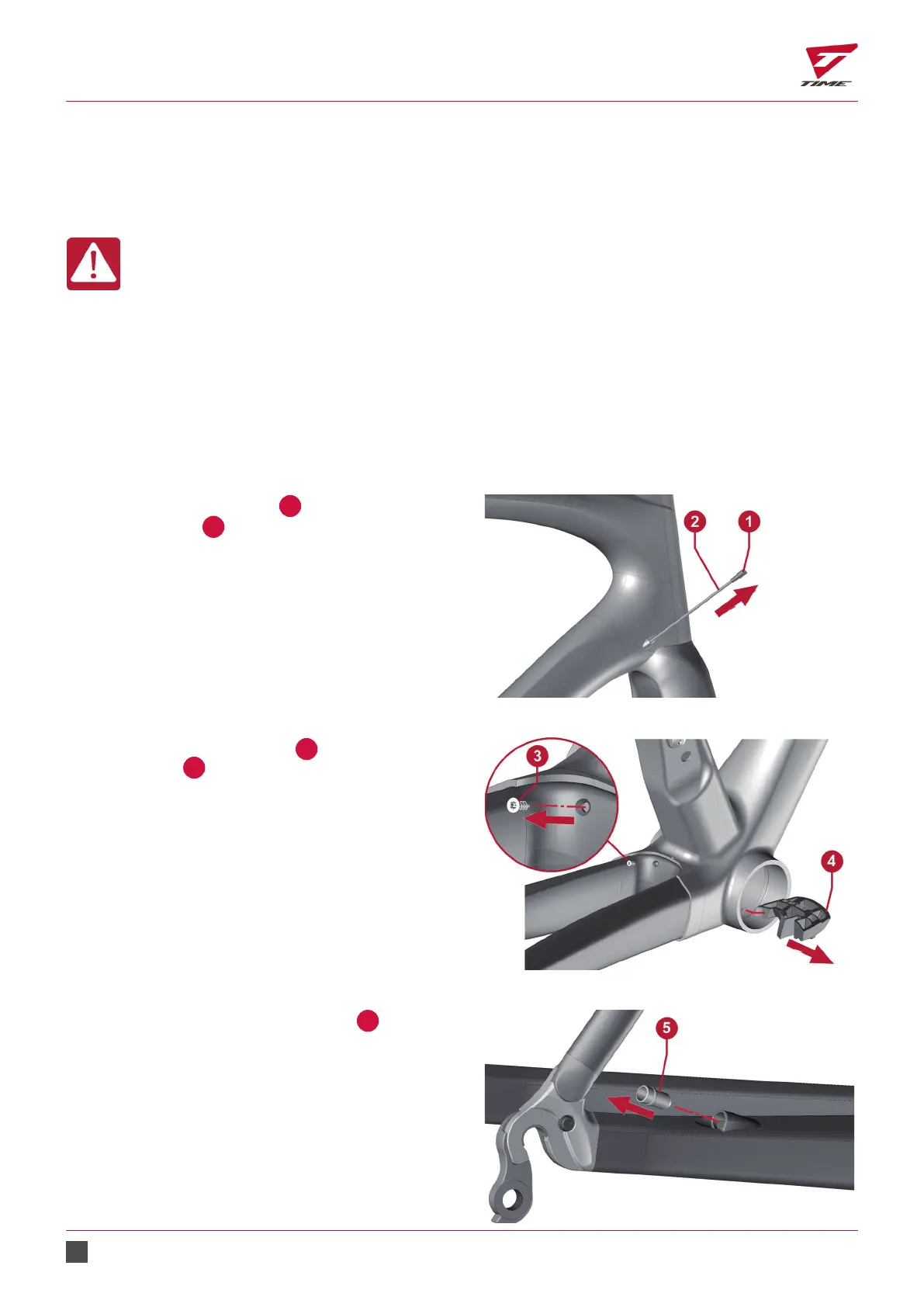

Preparation, disassembly of components for mechanical derailleurs:
- Remove the sheath stoppers
1
as well as internal
cable guide tubes
2
by just sliding them o󰀨.
Scylon 29.jpg
- You can also remove the screw
3
and the internal
cable grommet
4
, But this is not mandatory.
Scylon 30.jpg
- Remove the sheath stopper on the base
5
.
Scylon 31.jpg
5.4.2 Assembly of an electric transmission
The routing of the cables for the derailleurs is done internally, and to facilitate their assembly and the replacement,
cable guides are pre-installed at the factory.
The electrical wiring of a frame is a delicate operation that must be carried out by a competent
person, such as a Time authorised specialist dealer, distributor, etc.
For any question specic to the electrical elements that does not involve the frame, refer to the
manuals and technical manuals of the unit manufacturer.
TIME Scylon frames come with a pre-assembly for a mechanical unit.
To assemble your bike with a power unit, you must rst remove the components specically for mechanical
derailleurs.
A specic kit ref: 55007941 should also be used to ensure the perfect t with the di󰀨erent units available SHIMANO
Di2 , CAMPAGNOLO EPS and SRAM eTAP .
NIM_Scylon-01
18
EN
