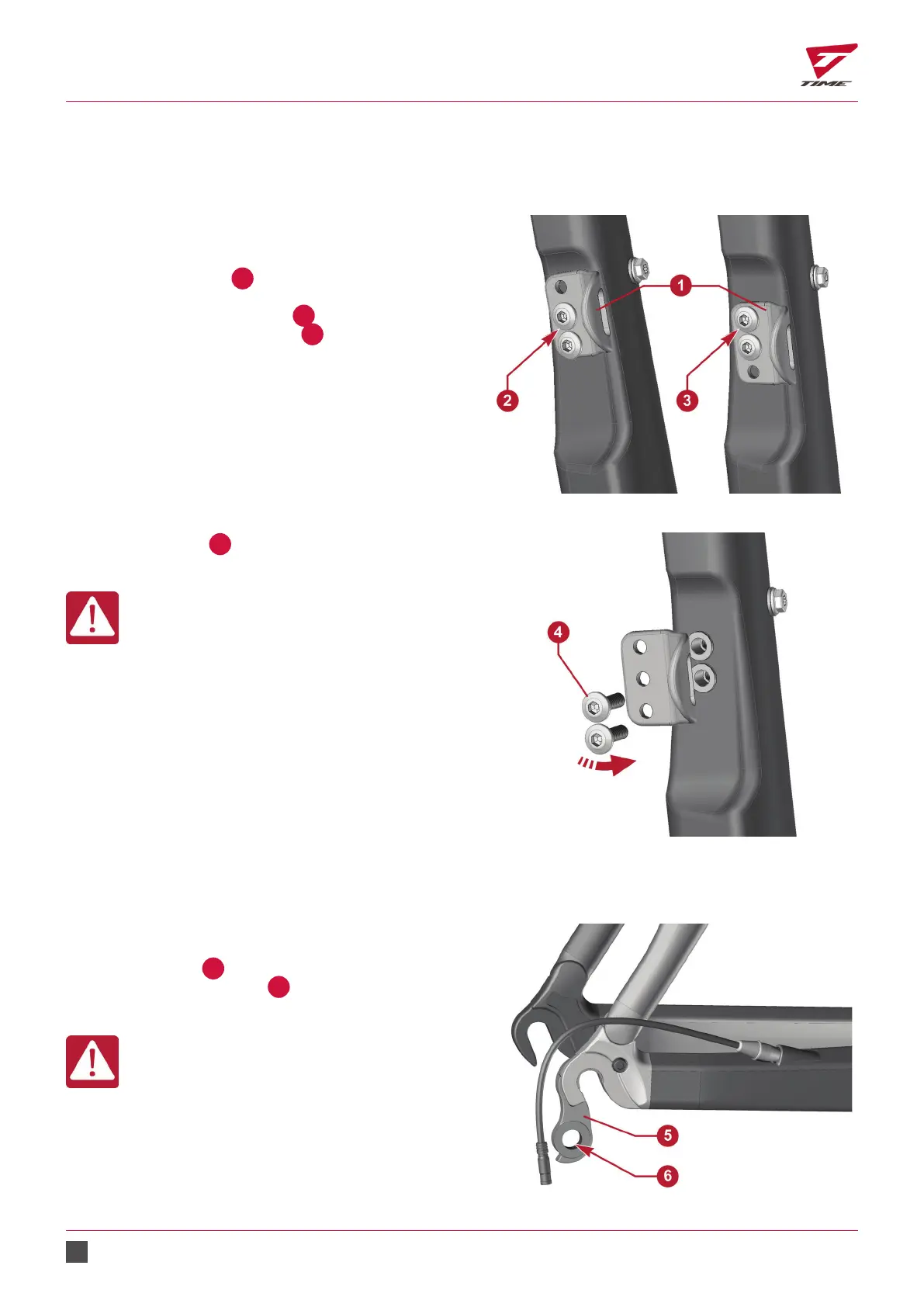

5.5 Assembly of the front derailleur
Before the assembly, read the technical instructions by the manufacturer of the front derailleur.
The TIME Scylon frame is designed to receive a front
derailleur "for soldering".
The derailleur bracket
1
is adjustable in 2
positions:
- High position for classic pedals
2
, tray of 53 teeth.
- Low position for compact pedals
3
, tray of 50
teeth.
Scylon 72.jpg
- Tighten the screws
4
Ref: 600045041, to a torque
of 7 Nm using a dynanometric key.
In no case should you force the position
of the derailleur hanger, as this can
damage the frame irreparably.
Scylon 73.jpg
5.6 Assembly of the rear derailleur
Before the assembly, read the technical instructions by the manufacturer of the rear derailleur.
The TIME frame is compatible with the 10- and
11-speed derailleurs on the market:
- Derailleur support
5
.
- Standard thread M10 x 100
6
.
- Lightly grease the xing screw before assembly.
If the hanger has to be aligned, this
should be done by a professional who
will use the appropriate tools.
Excessive or repeated deformation may
weaken the derailleur hanger bracket.
