Assembly instructions

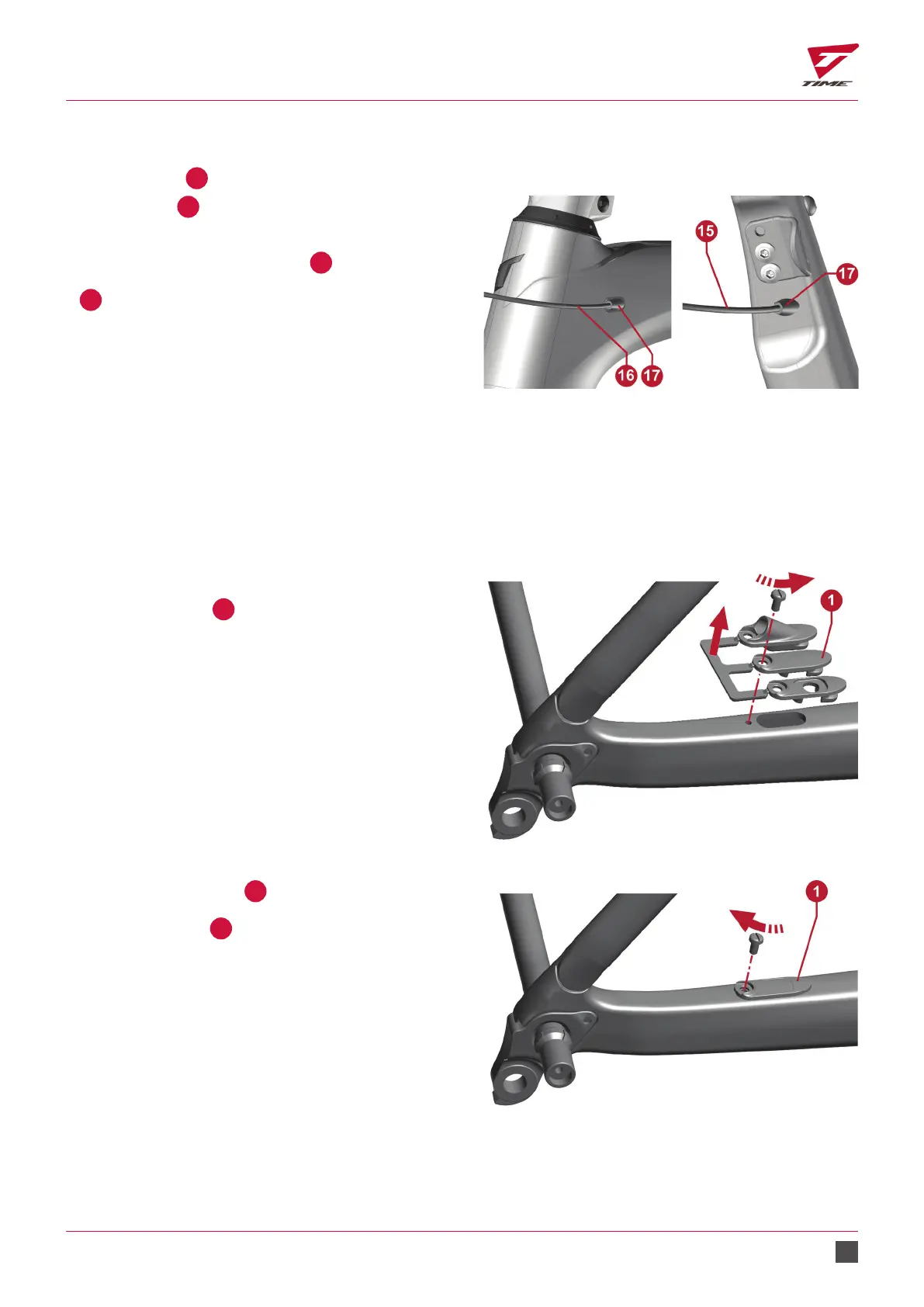

Assembling the
17
CAMPAGNOLO grommets
Place the set of
17
CAMPAGNOLO grommets on
the entry holes of the front and rear derailleur wires
(top of the diagonal tube):
- Direction sleeve, on the red cable
16
.
- Seat tube to front derailleur foot, on yellow cable
15
.
Scylon 63.jpg
The unit is now ready to be installed. Refer to CAMPAGNOLO recommendations for derailleur installation and
adjustments.
Scylon frame rear derailleur disc:
- Remove the array of guides and the sheath stopper
from the rear base.
- Use the cable guide
1
.
Scylon 91.jpg
- Position the cable guide
1
in its housing on the
rear base.
- Fix the cable guide
1
onto the rear base, and
tighten moderately.
Scylon 92.jpg
Mounting procedure for a SRAM eTAP wireless unit.
Refer to SRAM's recommendations for installing this wireless unit and its settings.
