Assembly instructions
Scylon frame rear derailleur disc:

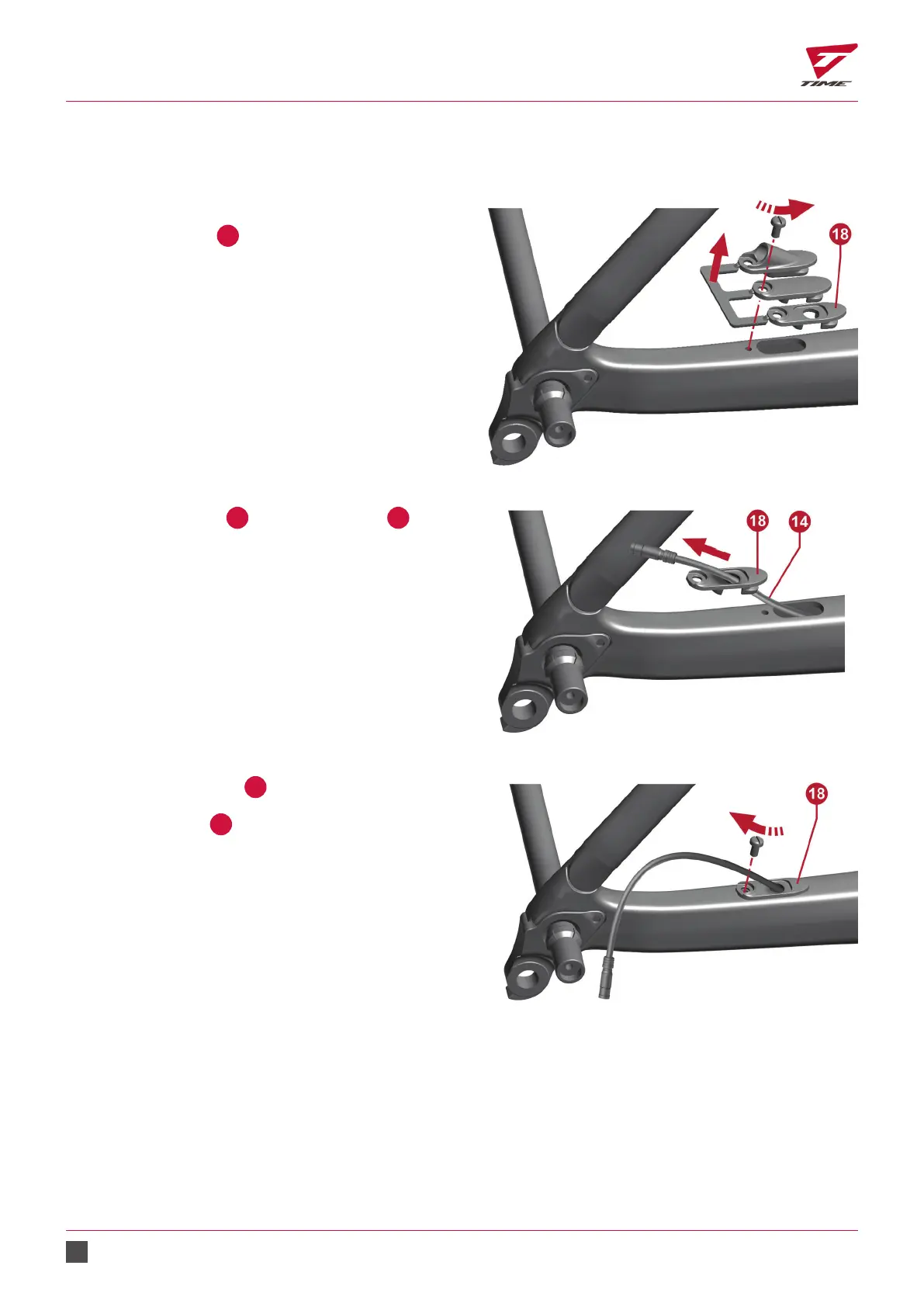

- Remove the array of guides and the sheath stopper
from the rear base.
- Use the cable guide
18
with a suitable
CAMPAGNOLO grommet.
Scylon 64.jpg
- Feed the green cable
14
into the cable guide
18
.
Scylon 65.jpg
- Position the cable guide
18
in its housing on the
rear base.
- Fix the cable guide
18
on the rear base, and tighten
moderately.
Scylon 66.jpg
