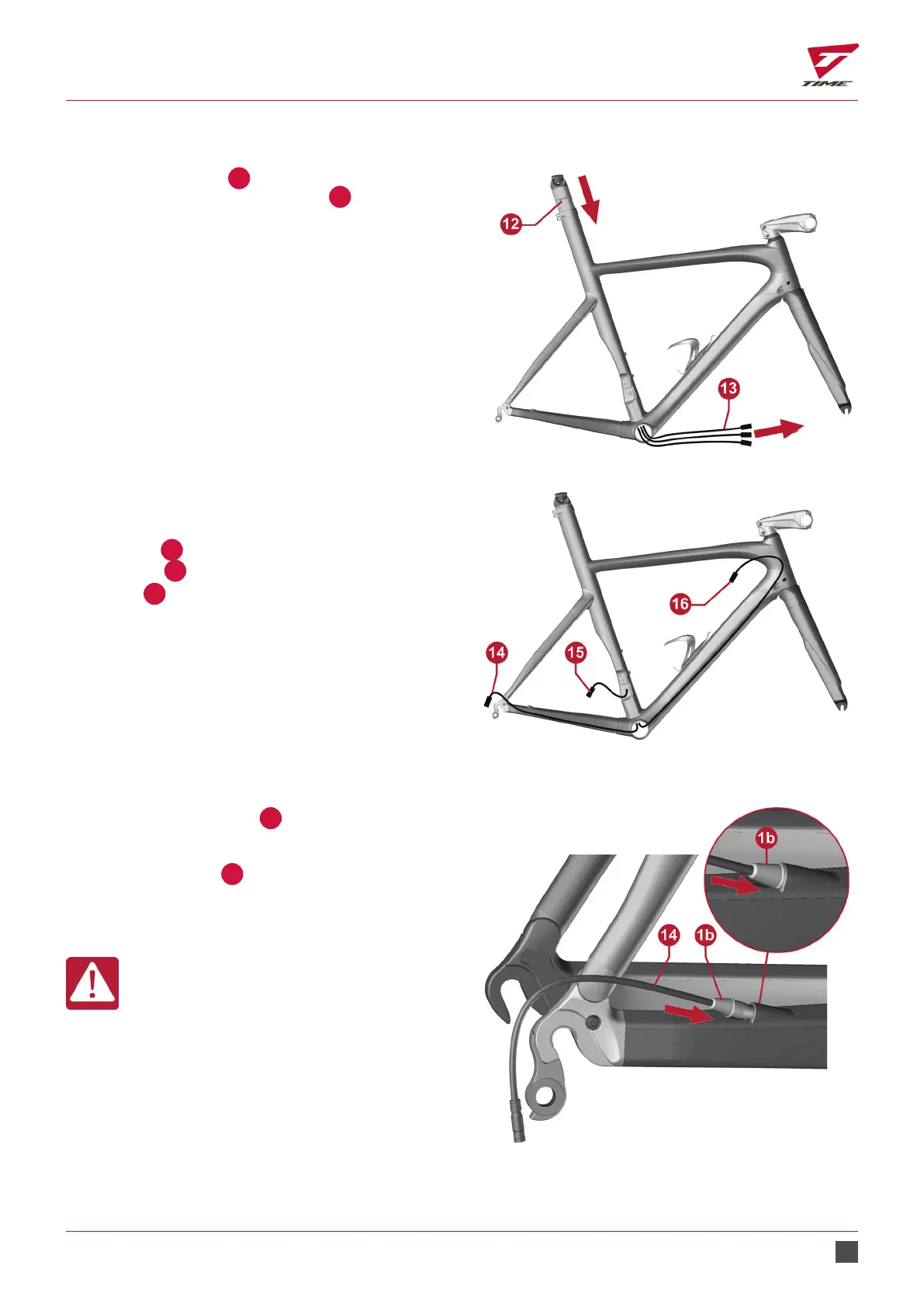

Assembly instructions
- Position the seat post
12
in the seat tube taking
care that the control cables descend
13
.
Scylon 59.jpg
Using the TIME nylon threads already positioned,
or the magnetic tool provided by CAMPAGNOLO,
complete the routing of the control cables:
- green cable
14
rear derailleur.
- yellow cable
15
front derailleur.
- red cable
16
control.
Scylon 60.jpg
Scylon frame rear derailleur:
- Place the TIME Ø 3.1 mm
1b
grommet on the right
rear base.
- Open the grommet at the slot and slide the piece
onto the green cable
14
.
- Position the grommet at the desired distance.
- Moisten or lightly grease the grommet to facilitate its
positioning in the housing.
Orient the grommet (slot towards the
base), then push it rmly into its
housing.
Scylon 62.jpg
NIM_Scylon-01
29
EN
