Assembly instructions
5.10 Settings and maintenance

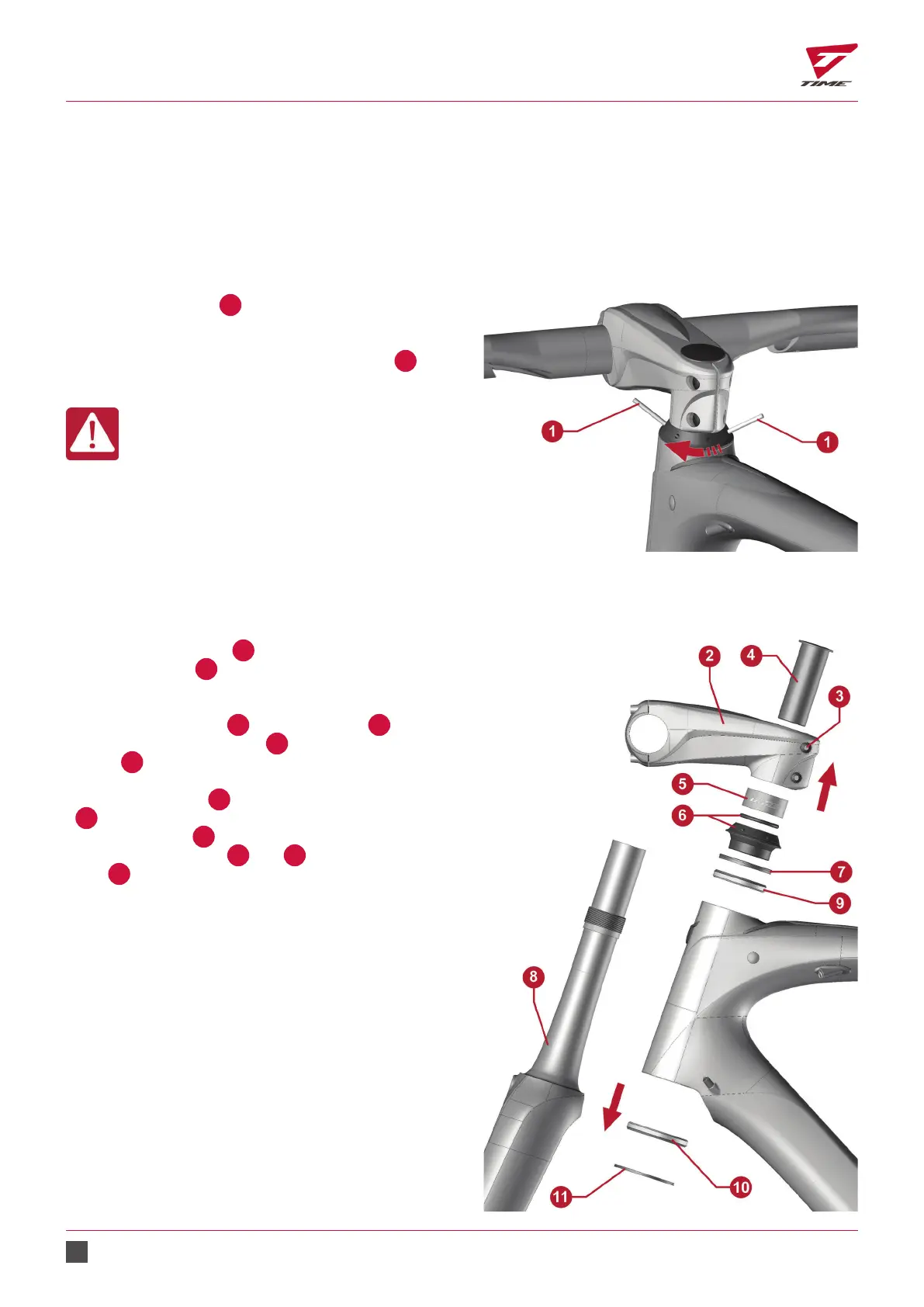

5.10.1 Setting the steering
TIME frames are equipped with the Quickset headset system.
Although this is preset in the factory, it is normal for there to be some play after a break-in period.
To stop this play, proceed as follows:
- Use the small levers
1
Ref: 60003067 which come
with the frame.
- Position them in the circlet.
- Immobilise the fork and turn the levers slightly
1
clockwise to eliminate the play.
Do not overload the bearings, which
could make the steering unpleasant to
use and prematurely damage the
bearings.
Scylon 93.jpg
Disassembly:
- Disassemble the stem
2
by loosening the
fastening screws
3
(if necessary, remove the
brake and derailleur cables).
- Slide the stem upwards taking care not to damage
the compression plug
4
and the spacers
5
.
- Loosen the Quickset circlet
6
using the small
levers
1
Ref: 60003067, which come with the
frame.
- Remove the circlet
6
and its seal and the deector
7
, from the pivot by sliding them.
- Release the fork
8
from the frame.
- Remove the bearings
9
and
10
and the protective
skirt
11
.
- Clean the set of spans and then re-grease them
with cycle grease.
Scylon 94.jpg
5.10.2 Replacement of steering bearings
