Time Scylon - Page 43

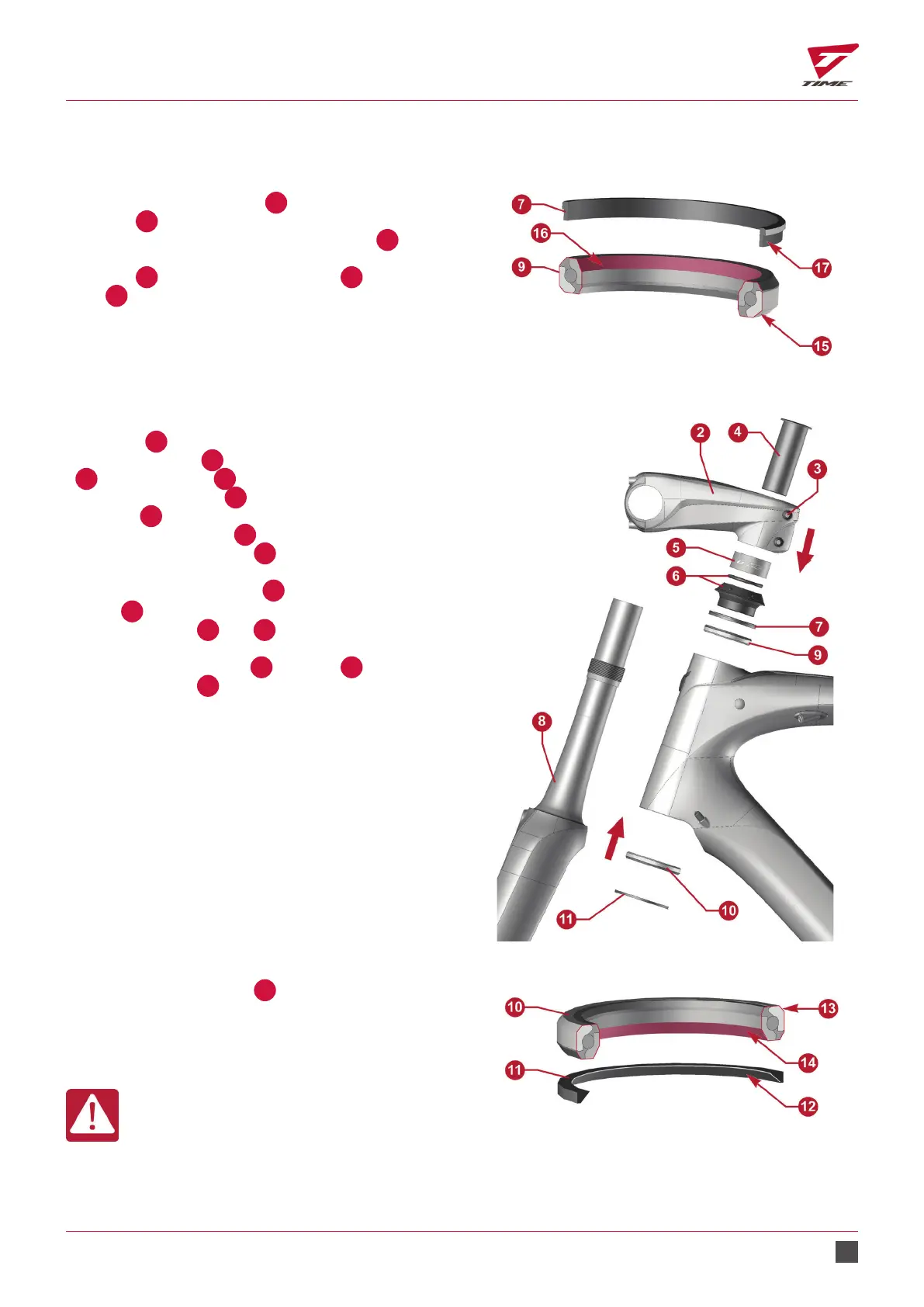

Assembly instructions
Reassembly:
- Position the protective skirt
11
Ref: 55007795
chamfer
12
down on the fork.
- Position the lower steering wheel Ø 52 mm
10
Ref: 61007475 taking care to orient the outer
chamfer
13
upward, the bracket cone
14
on the
fork
8
.
Scylon 96.jpg
Insert the fork into the frame:
- Position the upper steering wheel
Ø 45 mm
9
Ref: 61005887 taking care to orient
the outer chamfer
15
down, with the support cone
16
on the Quickset
6
circlet.
- Position the deector
7
Ref: 55007796 for
Quickset
6
bowl Ref: 55007796 on the direction
sleeve, small diameter
17
down.
- Slide the Quickset circlet
6
onto the pivot until it
comes in contact with the threaded ring.
- Screw the Quickset circlet
6
using the small
levers
1
Ref: 60003067 until it comes in contact
with the bearings
9
and
10
.
- Fine tune the play in the direction.
- Reassemble the spacers
5
, the stem
2
and the
compression cap
4
.
Scylon 95.jpg
- Tighten the xing screws
3
to the tightening
torque of 5 Nm in the case of a TIME stem (if the
stem is not a TIME stem: observe the tightening
torque recommended by the manufacturer), (see
Chapter 5.3).
The bearings of TIME frames are
specic!
Do not install any adaptable bearings or
you could make the bike unsafe to use
and irreversibly damage your frame.
Scylon 97.jpg
NIM_Scylon-01
43
EN
