Time Scylon - After-Sales Service; Spare Parts; Composition of the TIME Scylon Frame; Technical Characteristics of the TIME Scylon Frame; Standard

Assembly instructions

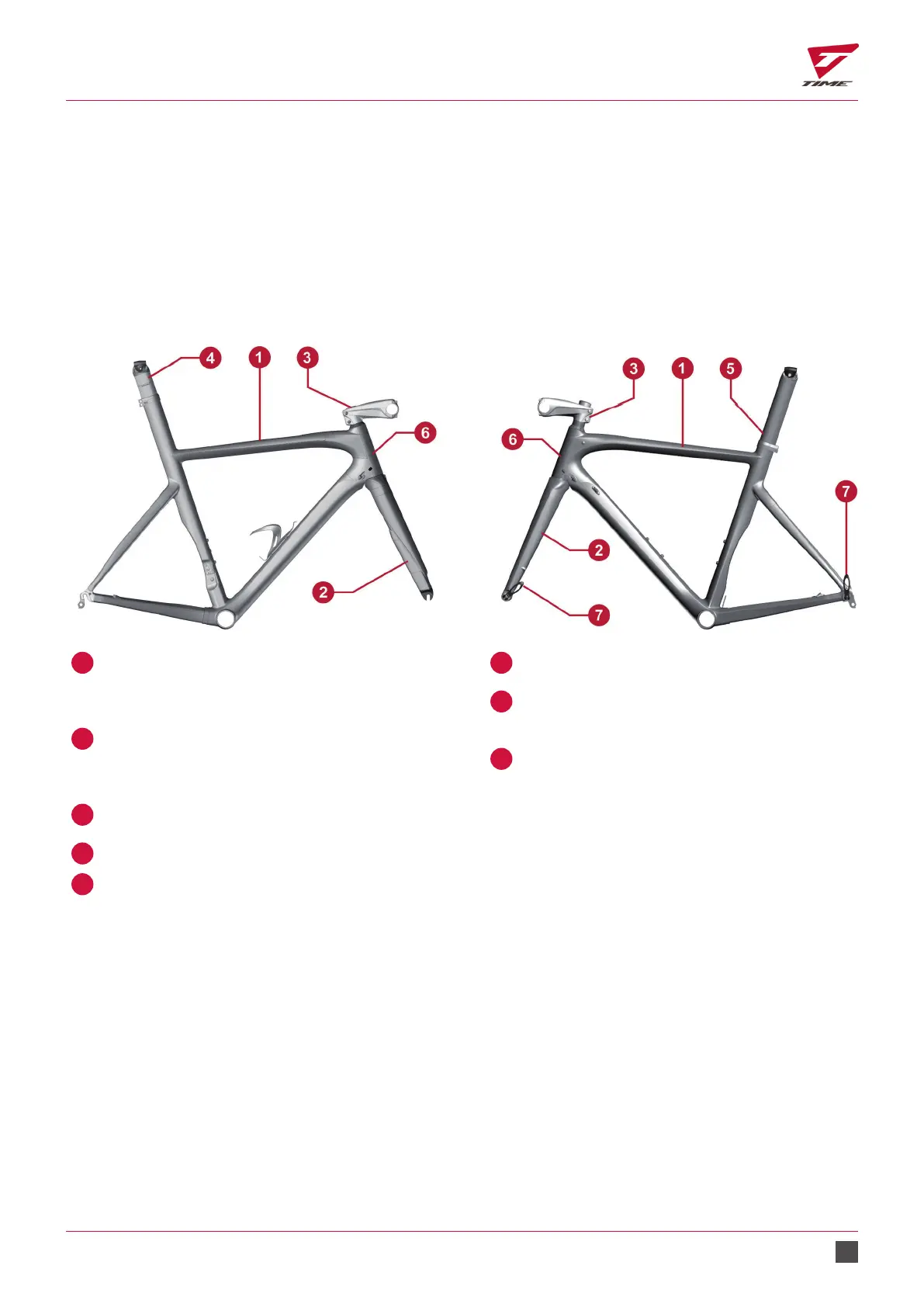

1
Frame:
- RTM carbon HM
- VIBRASER Technology
- CMT carbon rear legs
2
Fork:
- RTM carbon Monoblock
- CMT carbon legs
- TIME QuickSet system
3
Stem:
- Monolink Full carbon RTM
4
Translink proled seat post
5
Standard seat post
Scylon 03.jpg
Scylon 04.jpg
2. After-sales service / spare parts
For any service request, you must contact a specialist dealer.
In accordance with Decree No. 2014-1482 of 9 December 2014 on the information and supply obligations
concerning spare parts that are indispensable for the use of an item, TIME ensures a period of availability of these
spare parts up to 2 years after the end of the sale of the product by TIME to its distributors.
3. Composition of the TIME Scylon frame
6
Headset:
- Quick Set with di󰀨erentiated bearings
7
Scylon discs:
- "Thru-Axle" wheel axle front Ø 12
- "Thru-Axle" wheel axle rear Ø 12
8
Accessories:
- Compression cap
- Stem extension kit
- Front and rear brake nuts - Quick Set
adjustment levers
3.1 Technical characteristics of the TIME Scylon frame
- Wheel diameter: 700C
- Max section of the tyres: 700 x 25
- Scylon front hub width: 100 mm
- Scylon rear hub width: 130 mm
- Width of the front hub Scylon disc: 100 mm
- Width of the rear hub Scylon disc: 142 mm
- Width of the bottom bracket: 86.5 mm
- Bottom bracket: Standard BB386
- Double line chain ring: 43.5 mm.
- Triple line chain ring: 46.5 mm
- Seat post: Specic
- Type of front derailleur: Solder
- Rear derailleur support: M10 x 100
- Scylon brakes: Standard callipers (Route 39/50)
- Scylon disc brakes:
- Rear disc recommendation: R140 mm min.
- Front disc recommendation: R160 mm
- Steering: Integrated.
3.2 Standard
The TIME Scylon frame complies with ISO 4210 . It is protected by the following patents:
- Quick Set headset: EP 1 569 843 and US 7 237 787.
- Fork: EP 2 060 481.
