Time Scylon - Replacing the Rear Derailleur Hanger

Assembly instructions

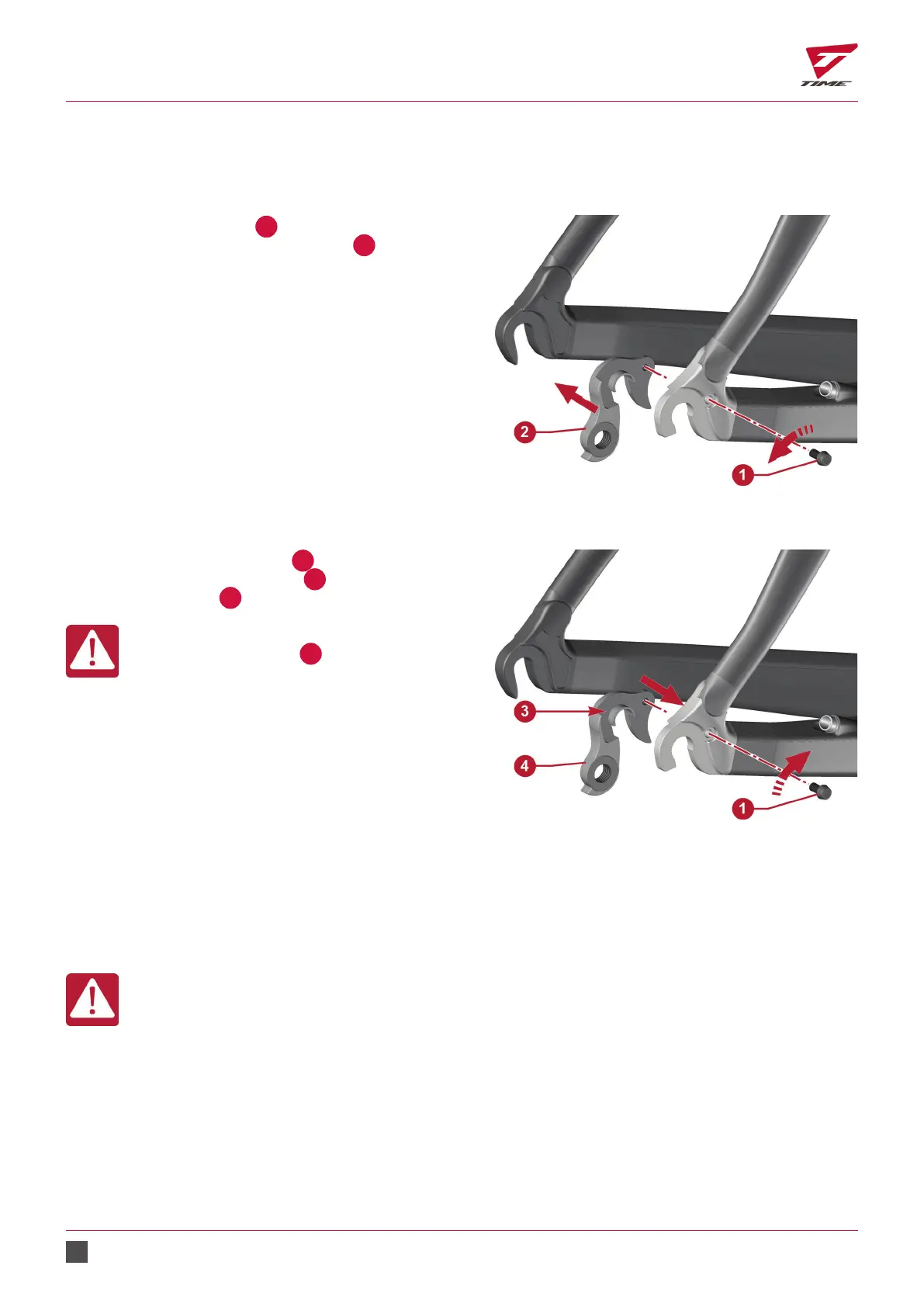

Disassembly:
- Unscrew the CHC M4 screw
1
with number 3 Allen key.
- Remove the damaged derailleur hanger
2
.
Scylon 98.jpg
Reassembly:
- Lightly grease the support face
3
on the frame.
- Position the new derailleur hanger
4
Ref: 55007735.
- Screw the M4 screw
1
ref: 60007825.
After a few tens of kilometres, check the
tightness of the screw
1
M4 CHC.
Scylon 99.jpg
Cleaning:
- Use neutral products that are safe for the
environment.
- Do not use a pressure washer
- Wipe the frame with a soft cloth.
Do not use abrasive products such as
polish. Traces of grease will be
eliminated using a white spirit type
solvent.
