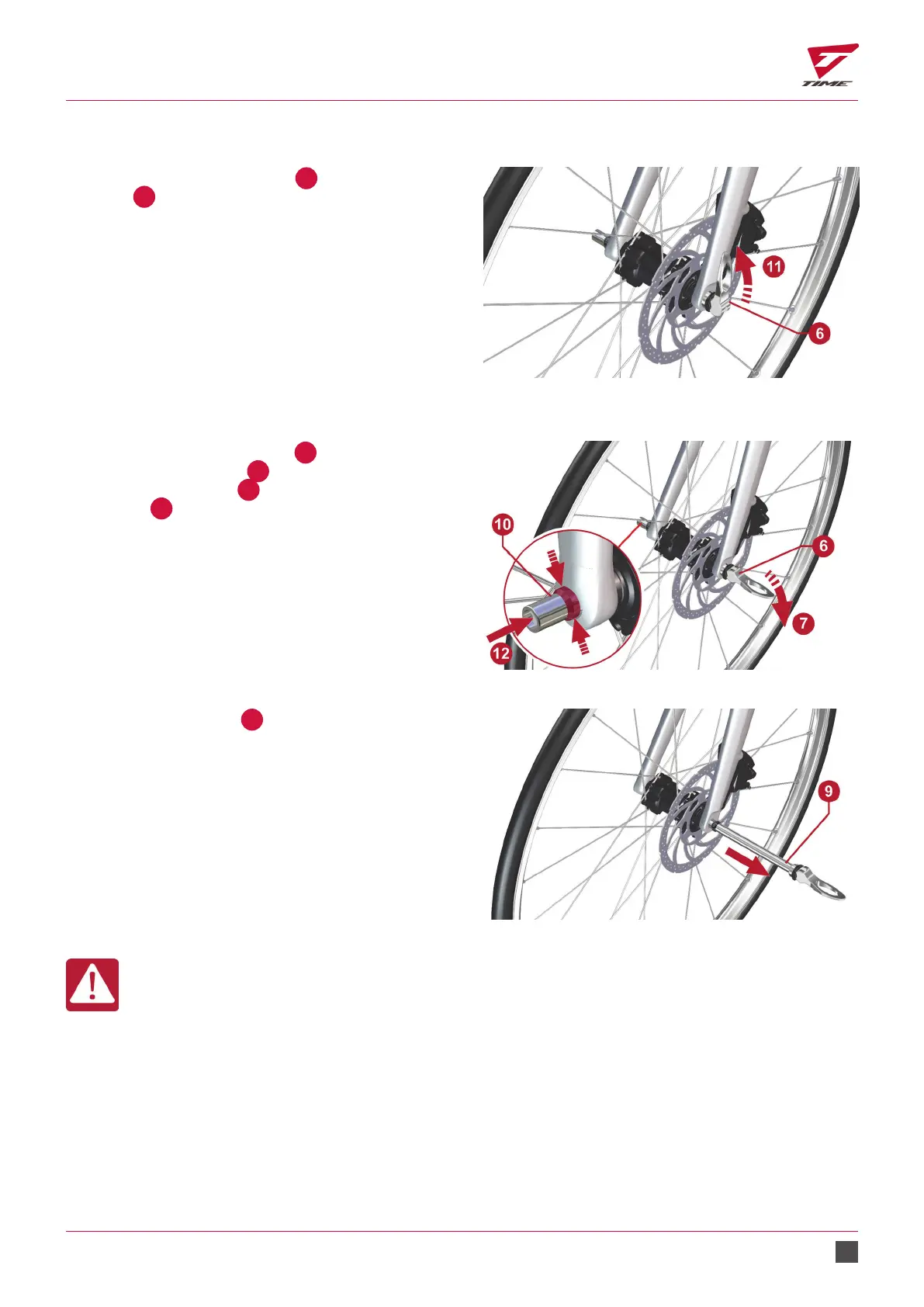

Assembly instructions
- Operate the quick release lever
6
in closed
position
11
: the clamping force must be correct,
then lock this lever.
If the clamping force is not correct, follow the setting
instructions on the lever on delivery.
Scylon 88.jpg
Removing the wheels:
- Position the quick release lever
6
of the wheel
axle in the open position
7
.
- Press the adjusting nut
10
, and push it inside the
wheel hub
12
.
Scylon 89.jpg
- Remove the wheel axle
9
, the hub and the fork.
- Remove the wheel.
Scylon 90.jpg
Always check the tightness of your wheels before each ride.
