Time Scylon - Page 28

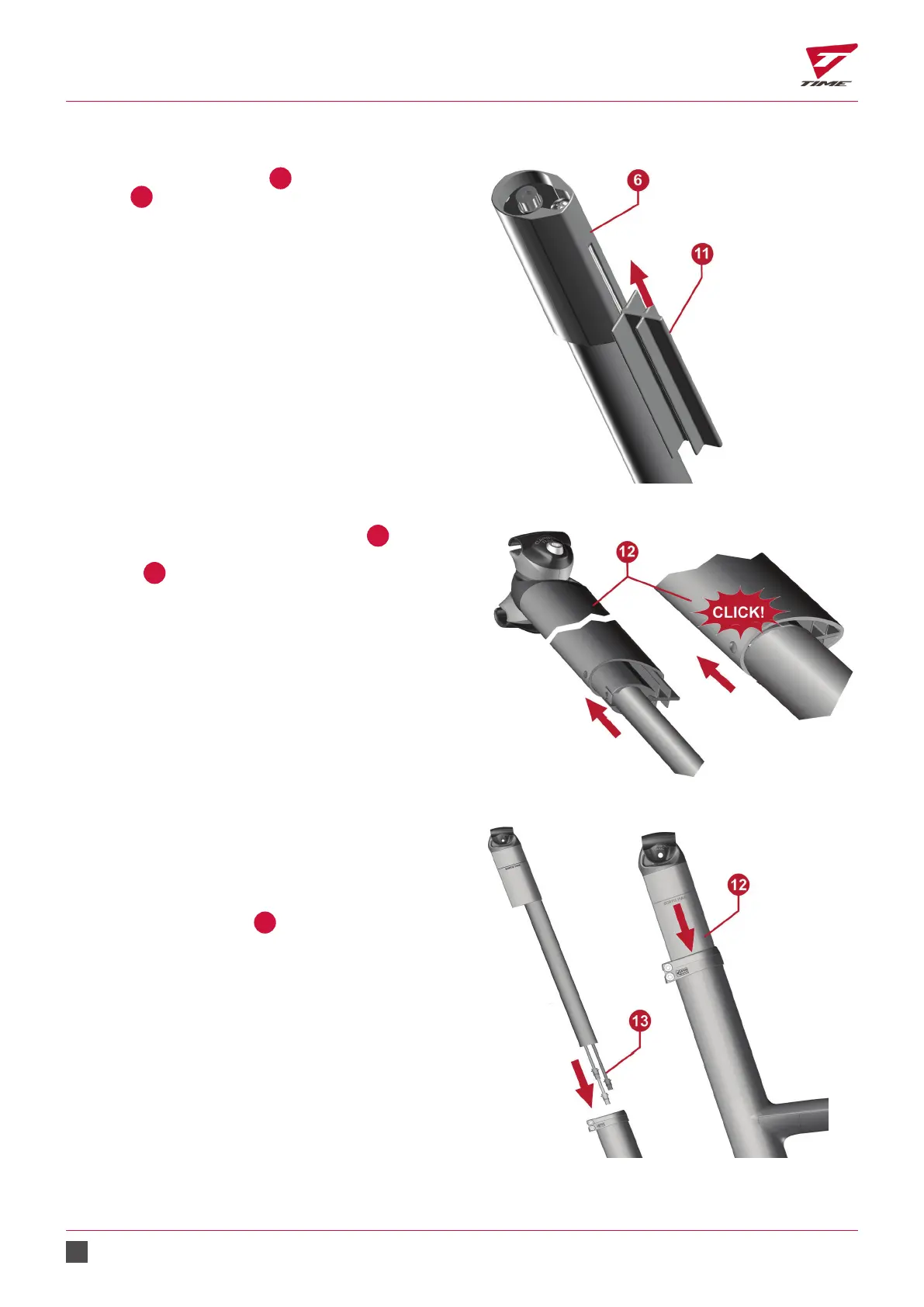

Assembly instructions
- Position the 22 mm setting
11
on the Multi-Fit
bracket
6
.
Scylon 56.jpg
- Slide the assembly into the seat post tube
12
.
- Clip the assembly into the drilled hole of the seat
post tube
12
.
Scylon 57.jpg
Your CAMPAGNOLO PU16IEPS power unit is now
secured to the seat post.
Once this operation has been performed, you can
start the frame wiring procedure.
- Feed the 3 control cables
13
into the seat tube and
pull them out at the bottom bracket (yellow, red and
green).
For this operation, you can use either the TIME
nylon threads already positioned or the magnetic
tool provided by CAMPAGNOLO.
Scylon 58.jpg
