Assembly instructions

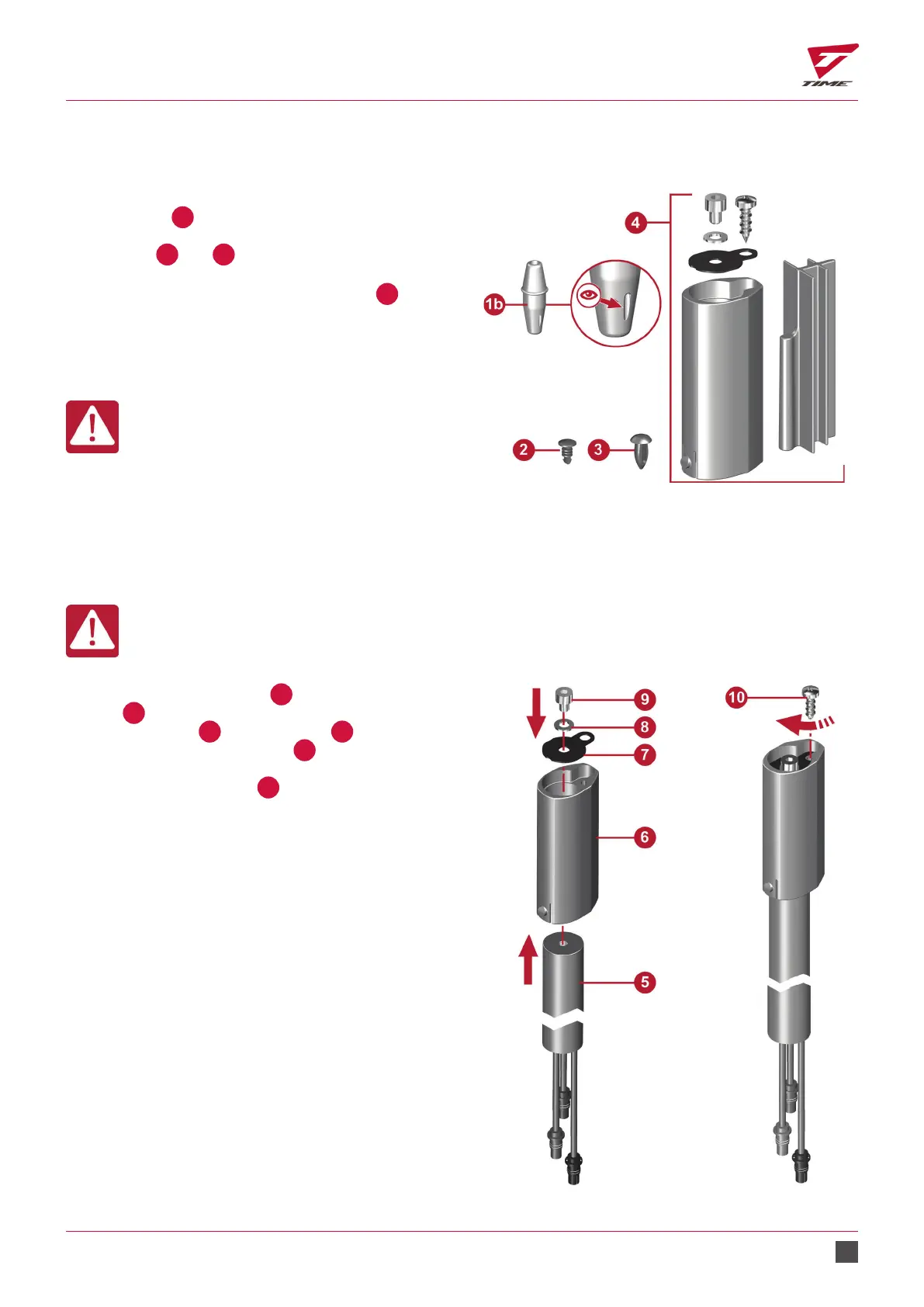

Assembly procedure for a CAMPAGNOLO EPS unit
These specic TIME components must be kept:
- The grommet
1b
with a diameter Ø 3.1 mm (part
with marking).
- The 2 caps
2
and
3
diagonal tube.
- The Multi-Fit battery holder with plate and retaining
screw, as well as the 22 mm holding spacer
4
.
Material not provided but necessary necessary
for installing the CAMPAGNOLO unit:
- Internal battery: Ref Power Unit PU16IEPS.
The rest of the components must be
chosen by the end user according to the
intended use of the bike, and will be
compatible with the cabling carried out.
Scylon 48.jpg
Battery assembly on the seat post:
The CAMPAGNOLO power unit PU16IEPS battery must be assembled on the TIME seat post using the supplied
Multi-Fit components.
This procedure di󰀨ers signicantly from the installation recommended by CAMPAGNOLO.
- Slide the PU16IEPS battery
5
into the Multi-Fit
holder
6
.
- Position the plate
7
and the washer
8
, then
x the assembly with the screw
9
(moderate
tightening).
- Screw the retaining screw
10
(moderate tightening).
