Assembly instructions

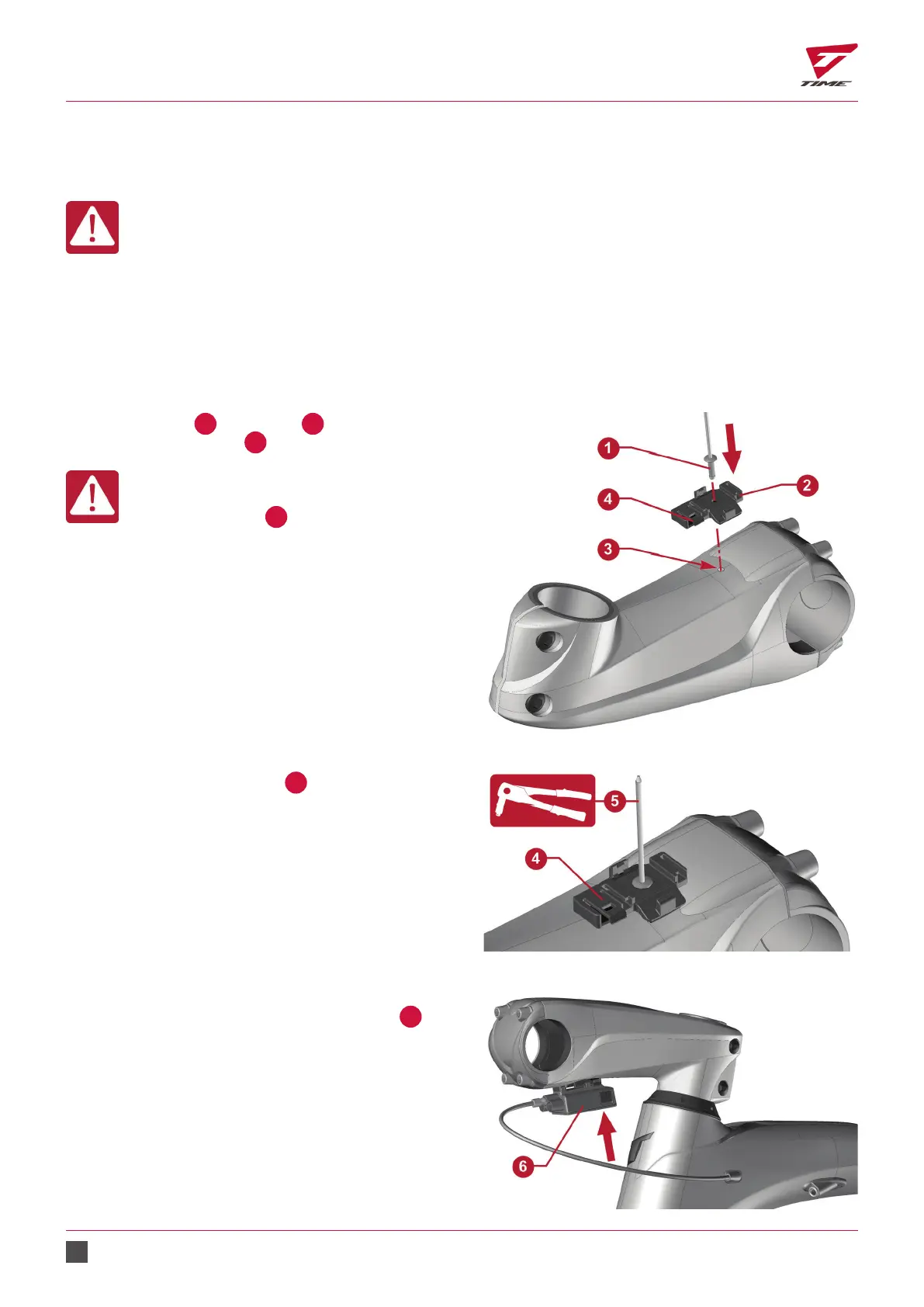

Mounting the SHIMANO junction box KSMEW90A or KSMEW90B
This mounting procedure applies only to frames delivered with a TIME MONOLINK Ulteam stem.
For its stem, TIME o󰀨ers a solution for mounting the Junction B to eliminate the unsightly retaining clamp.
A Junction B holder and a fastening rivet have been delivered to you with your Scylon Electric Kit.
TIME MONOLINK Ulteam brackets are pre-drilled to receive this assembly.
Proceed as follows:
- Position the rivet
1
and bracket
2
under the
stem, on the drilled hole
3
.
Pay attention to the direction of the
bracket:
The retention clip
4
must be on the left
side of the bike (direction of travel).
Scylon 45.jpg
- Rivet with a suitable rivet plier
5
.
Scylon 46.jpg
- Once your stem is placed on your frame, you can x
your KSMEW90A or KSMEW90B junction box
6
.
Scylon 47.jpg
