Assembly instructions
Assembling the
18
KSMGM02 SHIMANO grommets

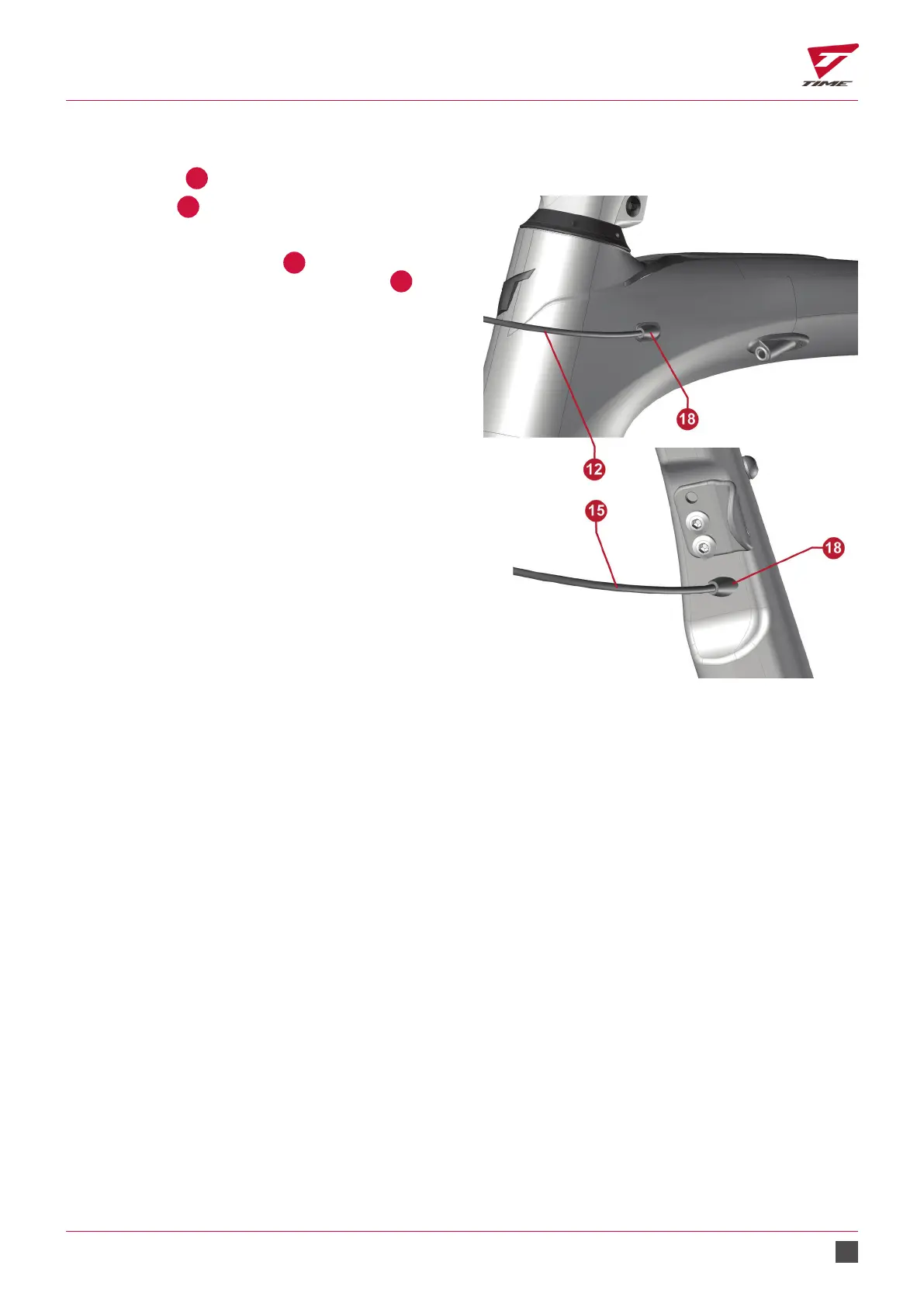

Place the set of
18
SHIMANO grommets on the
entry holes of the front and rear derailleur wires (top
of the diagonal tube):
- Direction sleeve, on the cable
12
.
- Seat tube to front derailleur foot, on the cable
15
.
Scylon 44.jpg
The unit is now ready to be installed. Refer to SHIMANO'S recommendations for derailleur installation and
adjustments. Similarly, the setting of the knobs and the cable connection KEWSD50IL100 (using any SHIMANO
compatible link beam) can be done according to SHIMANO procedures.
