Assembly instructions

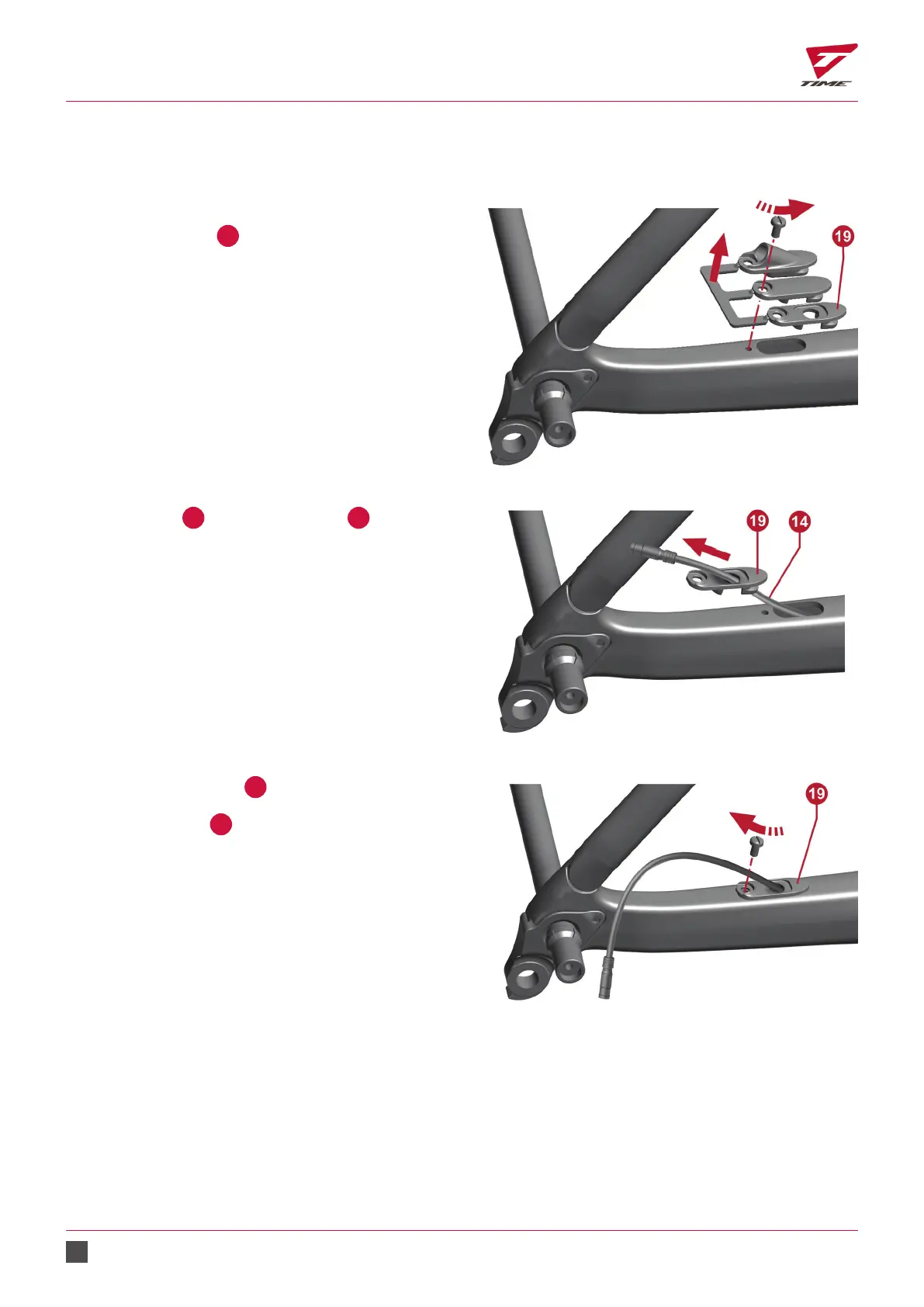

Scylon frame rear derailleur disc:
- Remove the array of guides and the sheath stopper
from the rear base.
- Use the cable guide
19
as well as the SHIMANO
KSMGM01 grommet.
Scylon 54.jpg
- Feed the cable
14
into the cable guide
19
.
Scylon 52.jpg
- Position the cable guide
19
in its housing on the
rear base.
- Fix the cable guide
19
on the rear base, and tighten
moderately.
Scylon 53.jpg
