Assembly instructions

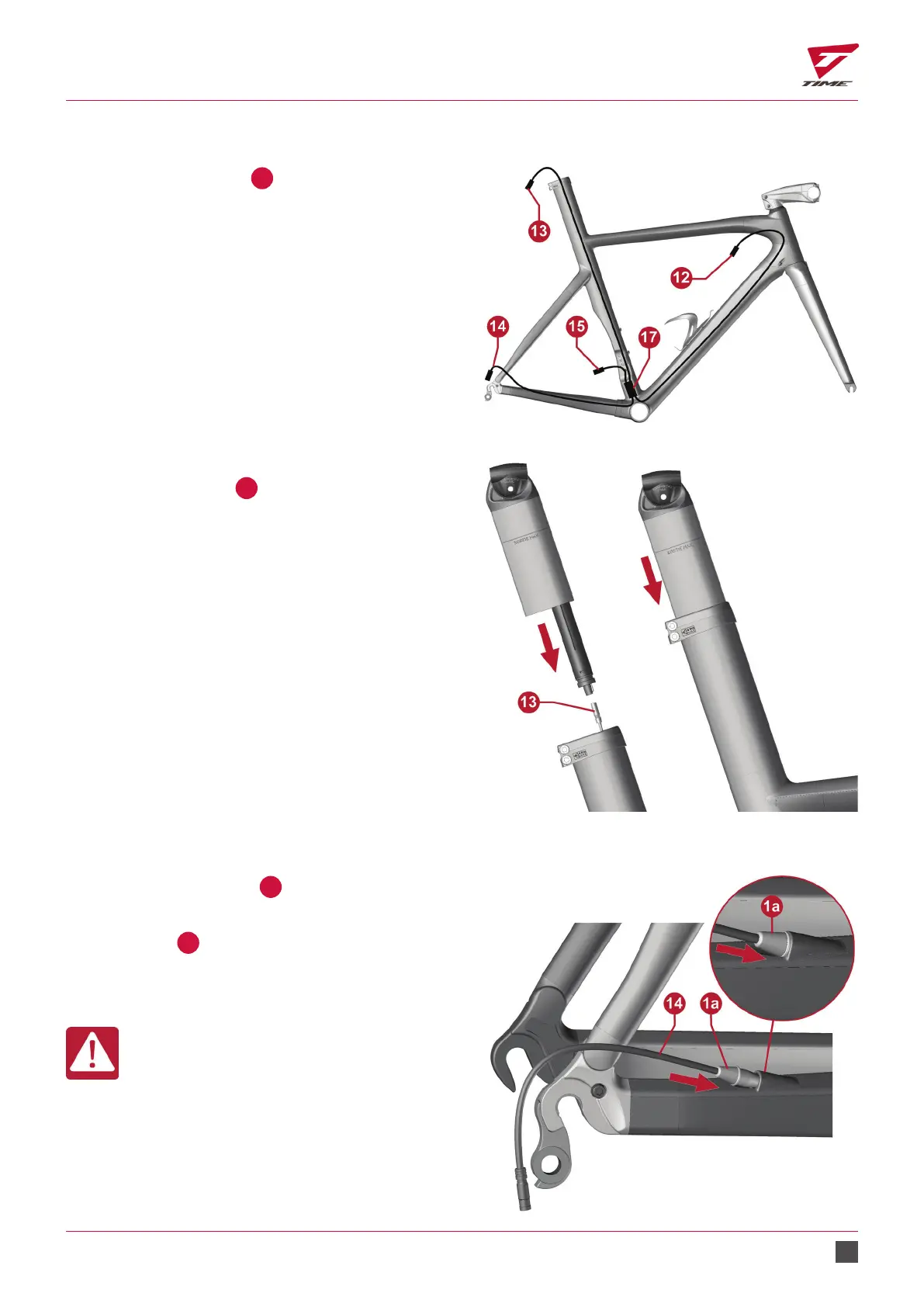

- Then feed the KSMJC41
17
, connected in this
manner, back into the seat tube so that the cables
run as shown opposite.
Scylon 40.jpg
- You can then connect the battery to the
KEWSD50IL100 cable
13
, then attach the seat
post assembly to the seat post (see chapter 5.2).
Scylon 42.jpg
Scylon frame rear derailleur:
- Place the TIME Ø 2.5 mm
1a
grommet on the right
rear base.
- Open the grommet at the slot and slide the piece
onto the cable
14
.
- Position the grommet at the desired distance.
- Moisten or lightly grease the grommet to facilitate its
positioning in the housing.
Orient the grommet (slot towards the
base), then push it rmly into its
housing.
Scylon 43.jpg
