Assembly instructions

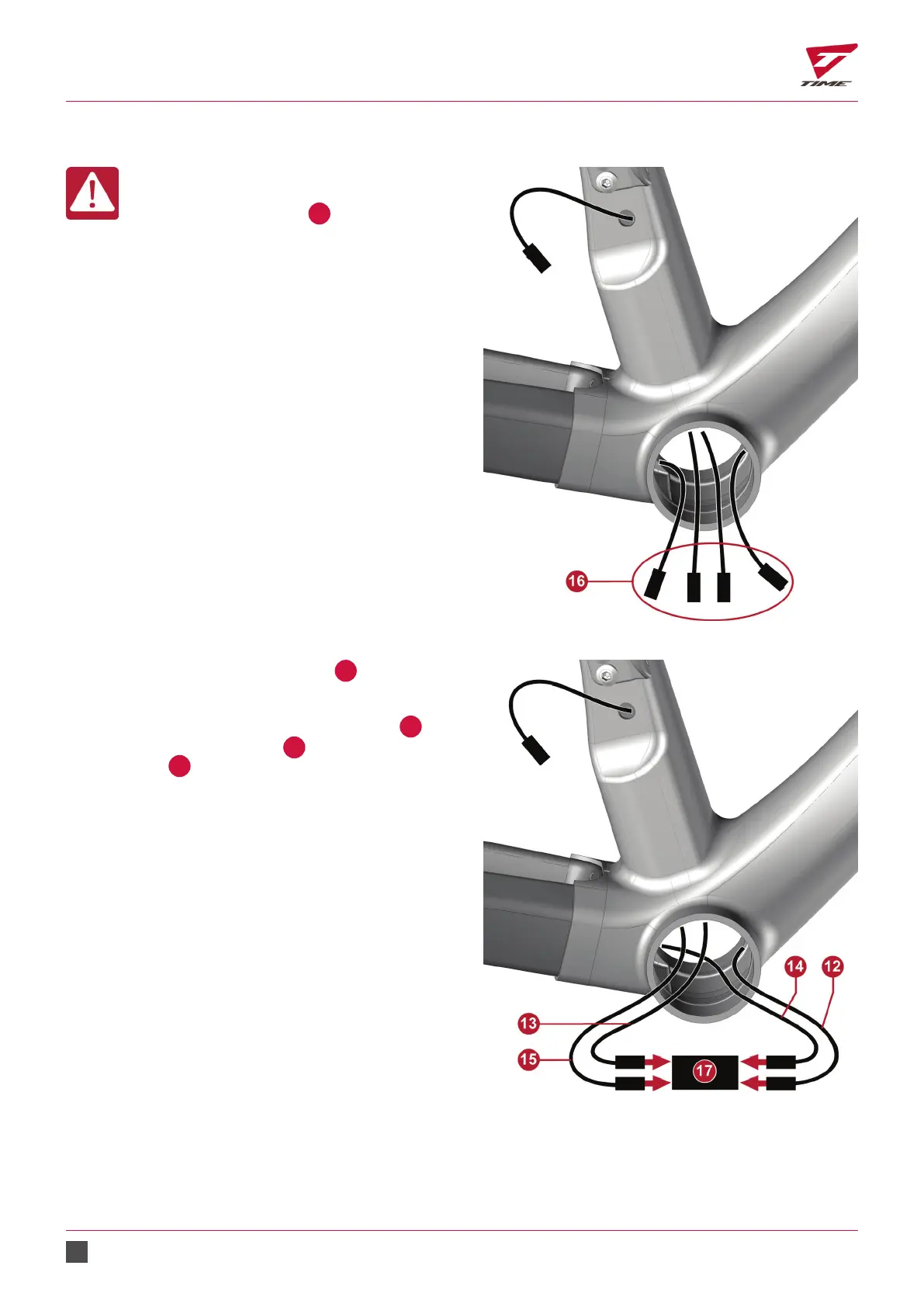

At this point you must have four ends of
KEWSD50 electrical cable coming out
into the bottom bracket
16
.
Scylon 38.jpg
- Then connect the element KSMJC41
17
to the four
cables present in the bottom bracket. The order of
the cables makes no di󰀨erence.
- Preferably connect the cable KEWSD50IL100
13
and the cable KEWSD50IL40
15
on the same side
of KSMJC41
17
.
Scylon 39.jpg
NIM_Scylon-01
