Assembly instructions

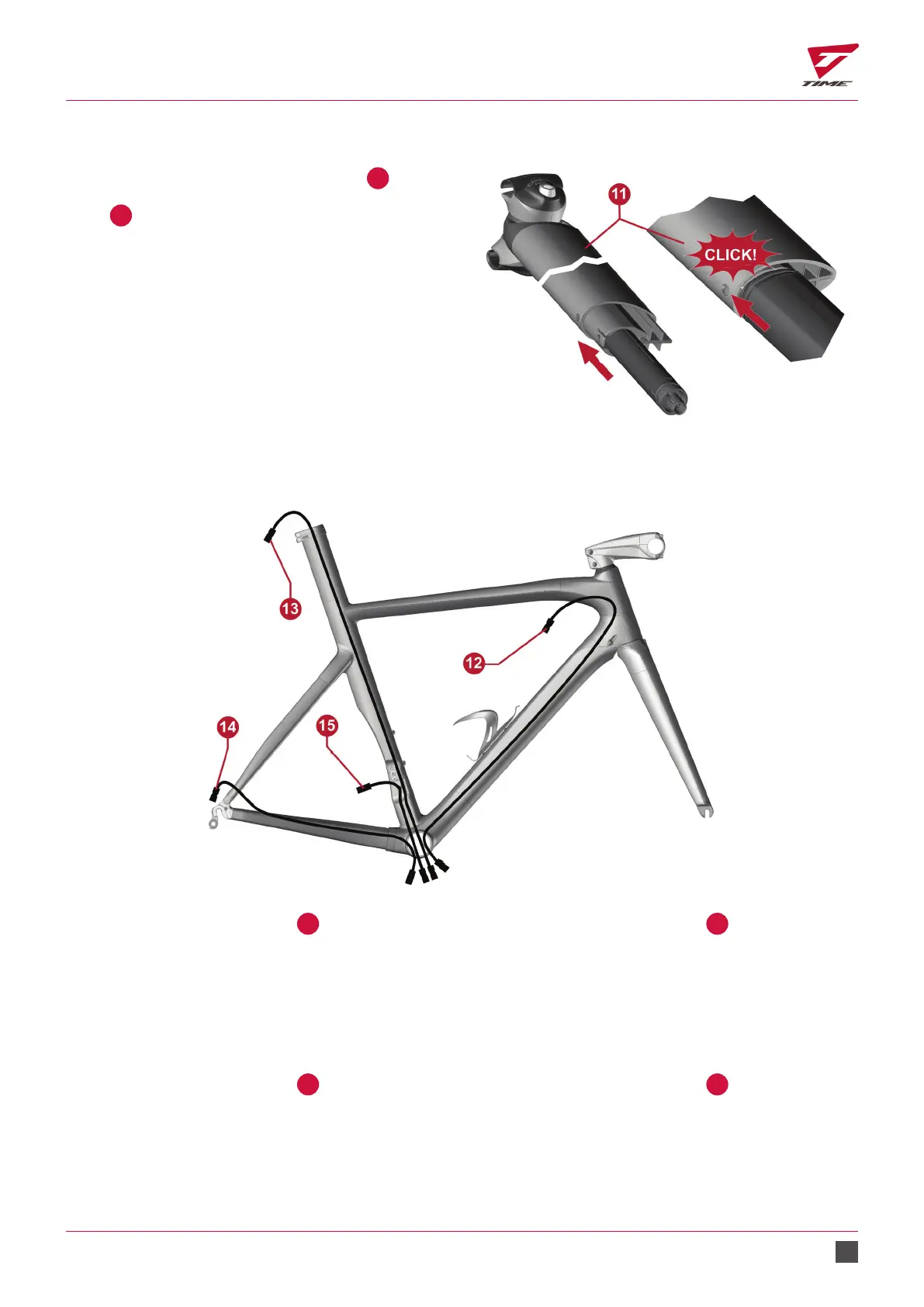

- Slide the assembly into the seat post tube
11
.
- Clip the assembly into the drilling of the seat post
tube
11
.
Scylon 37.jpg
Your SHIMANO KBTDN 1101 battery is now secured to the seatpost.
Scylon 41.jpg
Wiring of KEWSD50 wires in the frame:
Feed the cable KEWSD50IL100
12
(length 1000 mm) into the diagonal tube.
To do this, use to the thread already fed into the
frame:
- Tie the connector to the end of the fed wire on the
top of the diagonal tube.
- Pull the bottom bracket side wire so that it is
replaced by the power cable.
Feed the cable KEWSD50IL100
13
(length 1000 mm) in the seat tube.
To do this, use to the thread already fed into the
frame:
- Tie the connector to the end of the fed wire on the
side of the front derailleur.
- Pull the bottom bracket side wire so that it is
replaced by the power cable.
Feed the cable KEWSD50IL60
14
(length 600 mm) into the right base.
To do this, use to the thread already fed into the
frame:
- Tie the connector at the end of the fed wire on the
right-hand side leg (rear derailleur).
- Pull the bottom bracket side wire so that it is
replaced by the power cable.
Feed the cable KEWSD50IL40
15
(length 400 mm) into the seat tube.
To do this, use to the thread already fed into the
frame:
- Tie the connector to the end of the fed wire on the
side of the front derailleur.
- Pull the bottom bracket side wire so that it is
replaced by the power cable.
