Assembly instructions

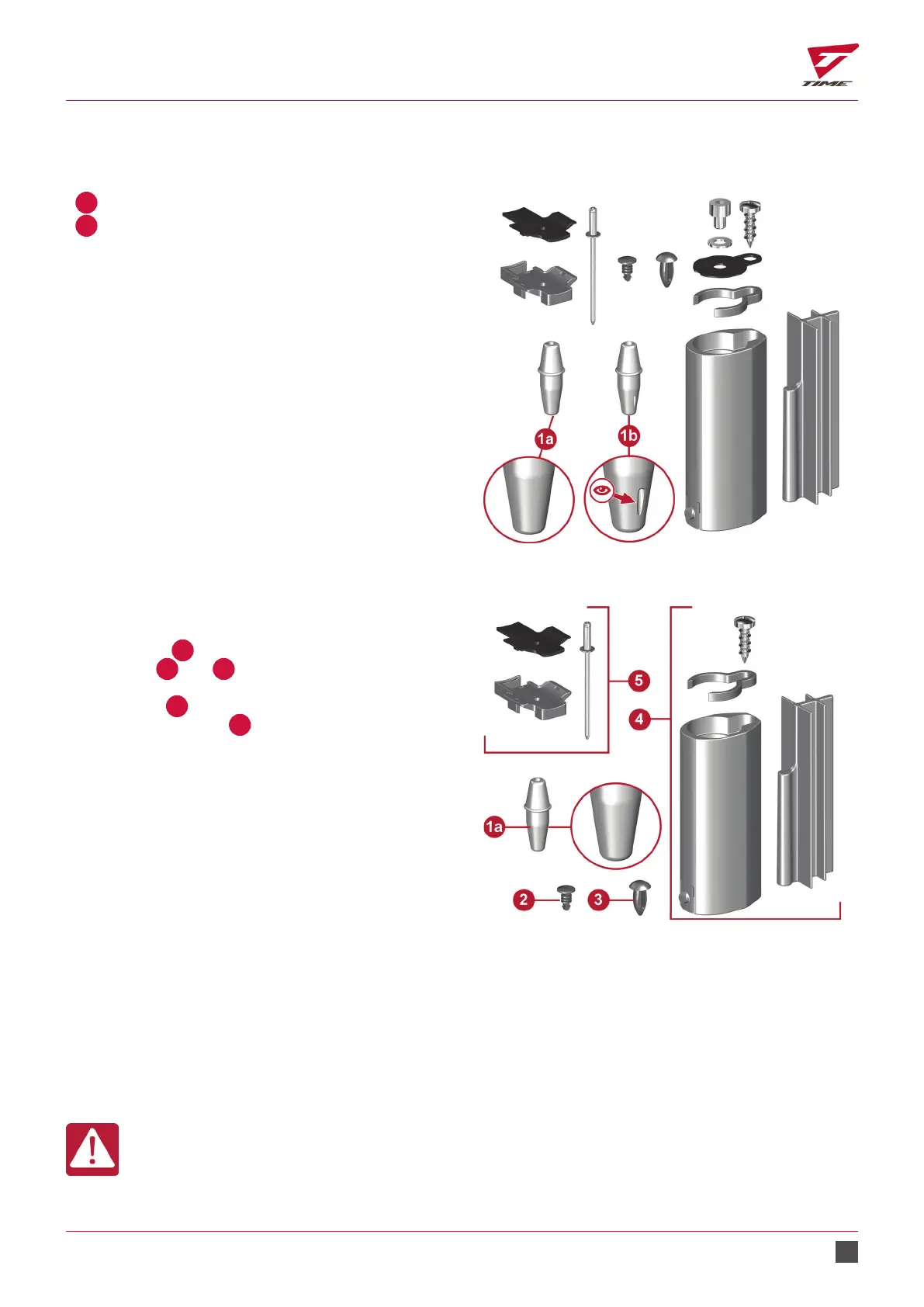

Composition of the specic kit ref: 55007941 required for installing electronic units:
-
1a
: specic grommet SHIMANO Di2.
-
1b
: specic grommet CAMPAGNOLO EPS.
Scylon 32.jpg
Material not provided but necessary for installing SHIMANO reference:
- Internal battery: ref KBTDN1101.
- Seat tube / battery cable: ref KEWSD50IL100 (1000 mm).
- Diagonal tube / box cable: ref KEWSD50IL100 (1000 mm).
- Basic cable / box: ref KEWSD50IL60 (600 mm).
- Front derailleur cable: ref KEWSD50IL40 (400 mm).
- Junction box for bottom bracket: ref KSMJC41.
- Junction box to controls: KSMEW90A ref (3 ports) or KSMEW90B (5 ports).
- SHIMANO grommet: ref KSMGM02 (2 pieces).
The rest of the components must be chosen by the end user according to the intended use of the
bike, and will be compatible with the cabling carried out.
installation procedure for a SHIMANO Di2 unit
The components of the kit ref: 55007941 which
are specic to TIME must be kept:
- The grommet
1a
of diameter Ø 2.5 mm.
- The 2 caps
2
and
3
diagonal tube.
- Multi Fit support with clamp and retaining screw and
22 mm shim
4
.
- JUNCTION B support
5
(only with TIME
MONOLINK stem).
