Assembly instructions

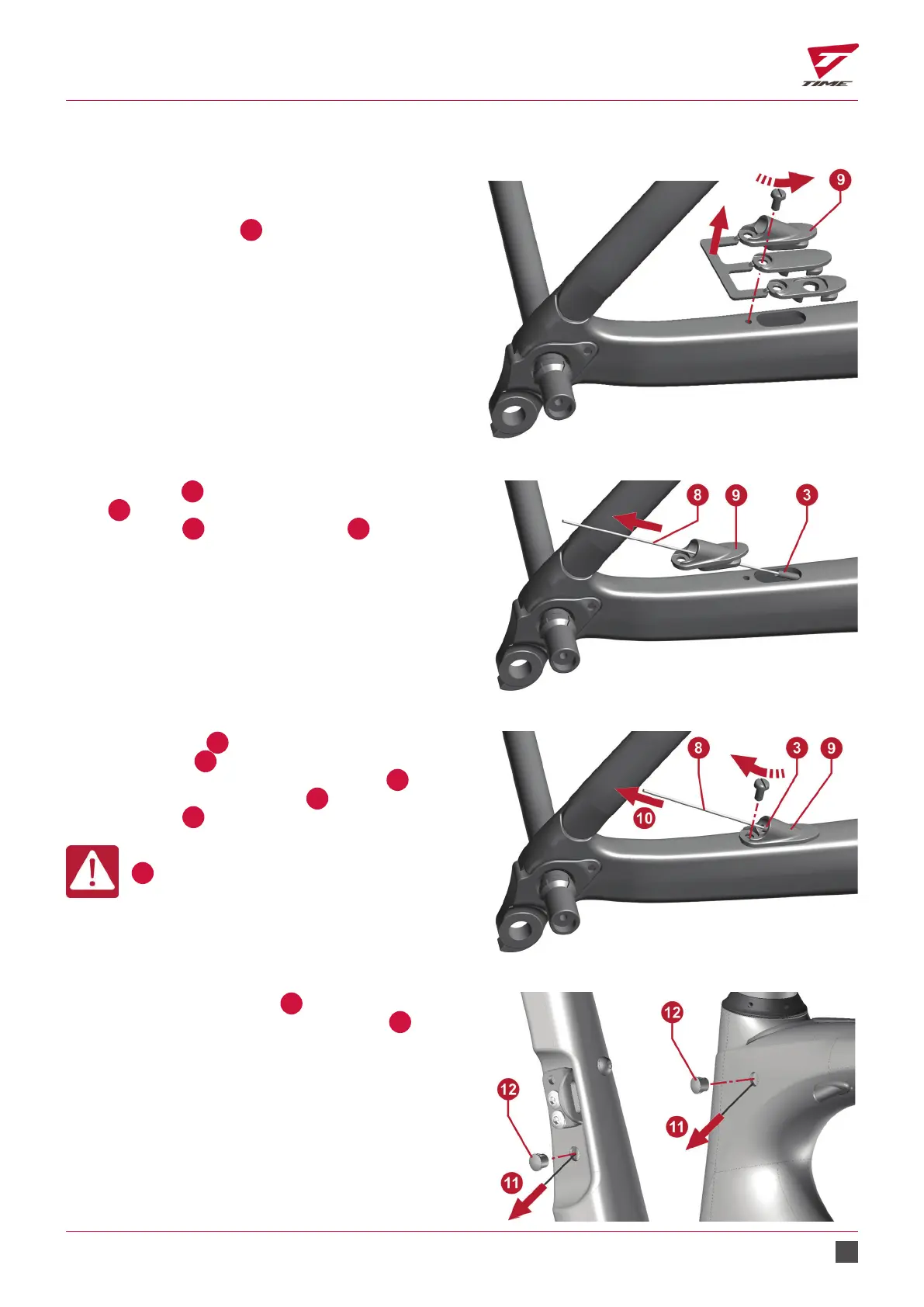

Scylon frame rear derailleur discs:
- Remove the array of sheath stopper guides from the
rear base.
- Use the sheath stopper
9
.
Scylon 49.jpg
- Slide the cable
8
into the cable guide on the right
side
3
and pull it out at the back of the right base.
- Feed the cable
8
into the cable guide
9
.
Scylon 50.jpg
- Pull the cable tight
8
to cut the functional length of
the sheath guide
3
.
- Then position the sheath stopper on the base
9
,
and lay the derailleur cable aside
10
.
- Fix the stopper
9
onto the base.
It is important that the cable guide tube
3
is su󰀩ciently short, so as not to be
constrained once the derailleur has been
assembled and adjusted.
Scylon 51.jpg
- Then remove the cable guide
11
(nylon threads) of
the electronic versions and position the plugs
12
for
closing the orices.
Scylon 61.jpg
