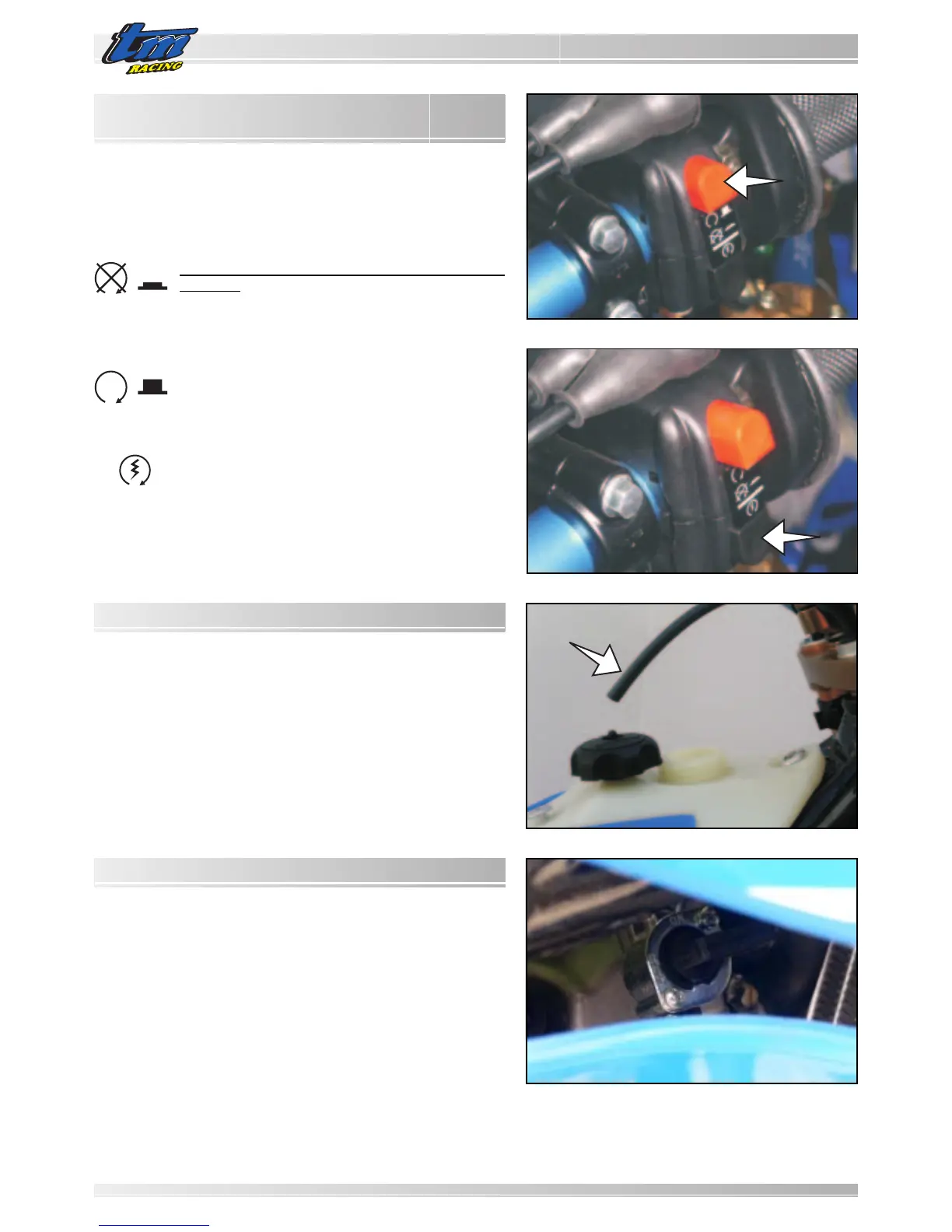

In the models with battery and electric ignition, a two-button command
is found at the side of the throttle command, one button is red, the other
black.
The red button (1) has two positions. Positioned inwards, it interrupts
contact with the battery, removing the current from all services
consumers/ancilleries. The engine will not start even with the pedal.
On these models, position it like this to switch the
engine off.
It is advised to leave it like this until the engine is started-up again,
otherwise the battery will go flat.
Positioned outwards, it closes the contact with the battery,
enables the use of all services, including electric starter.
For this reason, never leave it like this with the engine
switched off, otherwise the ignition control unit, which
absorbs current even when the engine is switched off,
can make the battery flat.
The black button (2) activates the starter. Press to start-
up the engine and release once running.
Activate this command for a maximum of 8/10 sec. at a
time and wait a few seconds before re-trying.
Do not insist for more than 3/4 times: look for the probable
fault.
Never press this button when the engine is running.
FUEL FILLER CAPFUEL FILLER CAP
FUEL FILLER CAPFUEL FILLER CAP
FUEL FILLER CAP
The fuel fill cap is found on top of the tank.
Open: turn the cap in an anti-clockwise direction
Close: place the cap on the inlet well and tighten it in a clockwise
direction.
Position the tank’s open vent pipe (1) preventing bends or crushing
and making sure that it is inserted correctly.
FUEL FUEL
FUEL FUEL
FUEL
TT
TT
T
APAP
APAP
AP
The tap is located on the right hand side of the tank base.
OFF On the OFF position, the fuel tap is closed.
ON On the ON position, the fuel tap is open.
When the motorcycle is used, turn the tap to the ON position. In
this way the fuel flows to the carburetor and the tank empties up
to reserve.
RES On the RES position, the reserve is used. After having filled up
the tank, do not forget to move the tap back to the ON position.
Tank capacity (all models)............ 8 Lt. + reserve 1 Lt.
