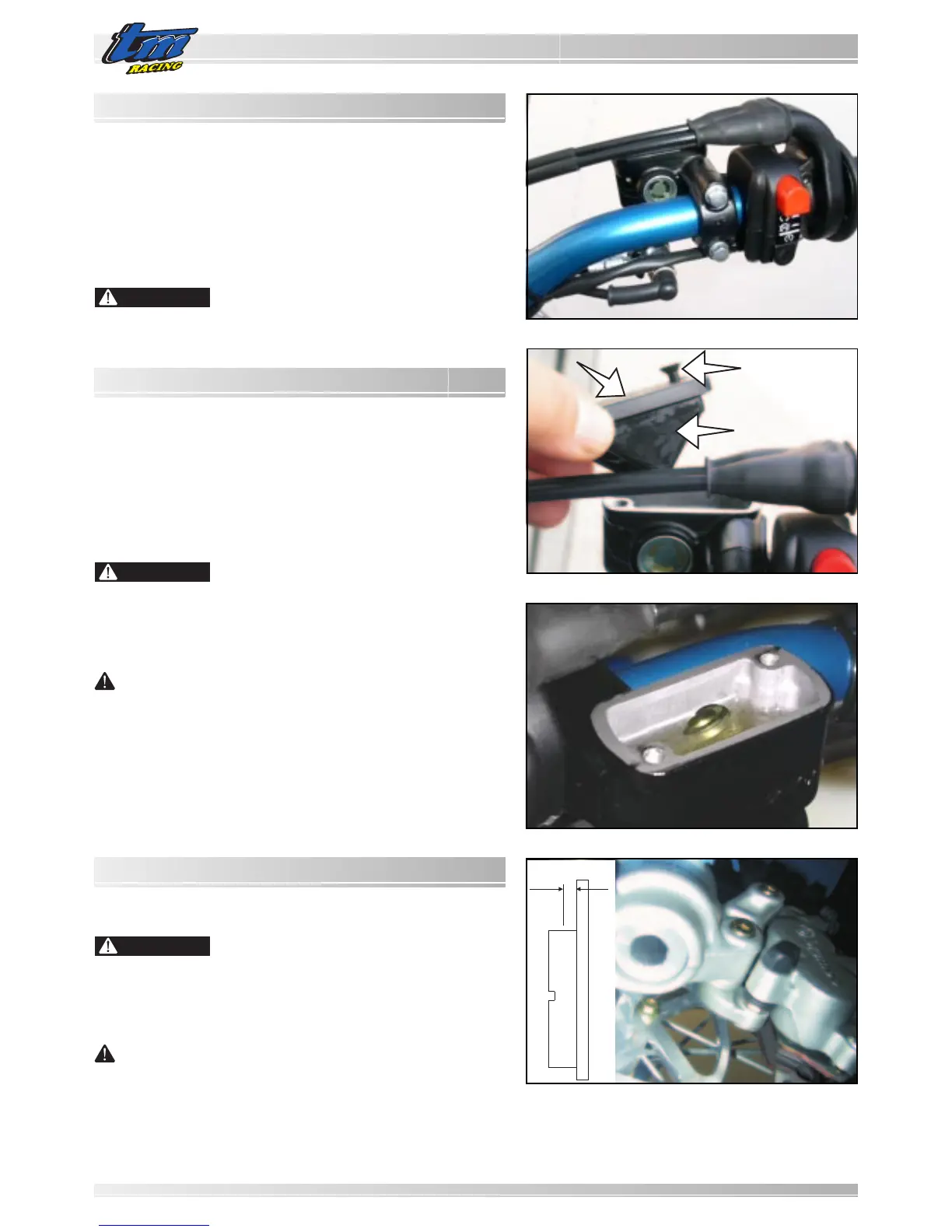

CHECK FRONT BRAKE FLUID LEVELCHECK FRONT BRAKE FLUID LEVEL
CHECK FRONT BRAKE FLUID LEVELCHECK FRONT BRAKE FLUID LEVEL
CHECK FRONT BRAKE FLUID LEVEL
The reservoir is part of the front brake pump positioned on the
handlebar and has an inspection window: with the tank in the horizontal
position, the fluid level must never fall below the centreline on the
inspection window.
The SMR/SMM/SMX models are an exception as they have an
independent transparent plastic tank .
Also in this case, the fluid level must never fall below half of the tank .
IF THE LEVEL OF BRAKE LIQUID FALLS BELOW THE MINIMUM VALUE, IT
INDICATES A LEAK IN THE BRAKING SYSTEM OR CONSUMPTION OF BRAKE
PADS BEYOND THE ACCEPTED LIMITS.
TOP-UP FRONT BRAKE FLUID (A)TOP-UP FRONT BRAKE FLUID (A)
TOP-UP FRONT BRAKE FLUID (A)TOP-UP FRONT BRAKE FLUID (A)
TOP-UP FRONT BRAKE FLUID (A)
Remove the screws (2) and remove the lid (3) and the membrane (4).
Place the front brake pump in a horizontal position and top-up the
brake fluid to 5 mm below the upper edge of the container. Re-mount
membrane, lid and screws. Wash any spilled brake fluid away with
water.
Where the tank is separate, unscrew the cap and remove the membra-
ne. Repeat the top-up operation as mentioned above.
Wash any spilled brake fluid away with water.
- KEEP BRAKE FLUID OUT OF THE REACH OF CHILDREN.
- BRAKE FLUID MAY IRRITATE THE SKIN. DO NOT ALLOW IT TO TOUCH
SKIN OR EYES. IF THE BRAKE FLUID SHOULD ACCIDENTLY SPRAY INTO
THE EYES, RINSE WELL WITH WATER AND SEEK MEDICAL ASSISTANCE.
WARNING
- DO NOT ALLOW BRAKE FLUID TO COME INTO CONTACT WITH PAINTED
PARTS, THE BRAKE FLUID CORRODES PAINT.
- USE ONLY CLEAN BRAKE FLUID OUT OF A HERMETICALLY SEALED
CONTAINER.
CHECK FRCHECK FR
CHECK FRCHECK FR
CHECK FR
ONT BRAKE PONT BRAKE P
ONT BRAKE PONT BRAKE P
ONT BRAKE P
ADSADS
ADSADS
ADS
The brake pads can be checked from below. The thickness of the pad
friction material must not be less than1 mm.
THE THICKNESS OF THE BRAKE PAD THICKNESS MATERIAL MUST NOT BE
LESS THAN 1 MM, OTHERWISE THERE COULD BE A FAULT IN THE BRAKES.
IN THE INTEREST OF YOUR SAFETY HAVE THE THE PADS REPLACED IN
TIME.
WARNING
IF THE BRAKE PADS ARE REPLACED TOO LATE AND ARE COMPLETELY WORN,
THE STEELPARTS OF THE PADS RUB ON THE DISC. THIS LEADS TO A NOTABLE
DECREASE IN THE BRAKING EFFECT AND DAMAGE OF THE BRAKE DISC.
DANGER
DANGER
DANGER
FRAME AND ENGINE MAINTENANCEFRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCEFRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCEFRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCEFRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCE
