ENGLISH
ENGLISH
42

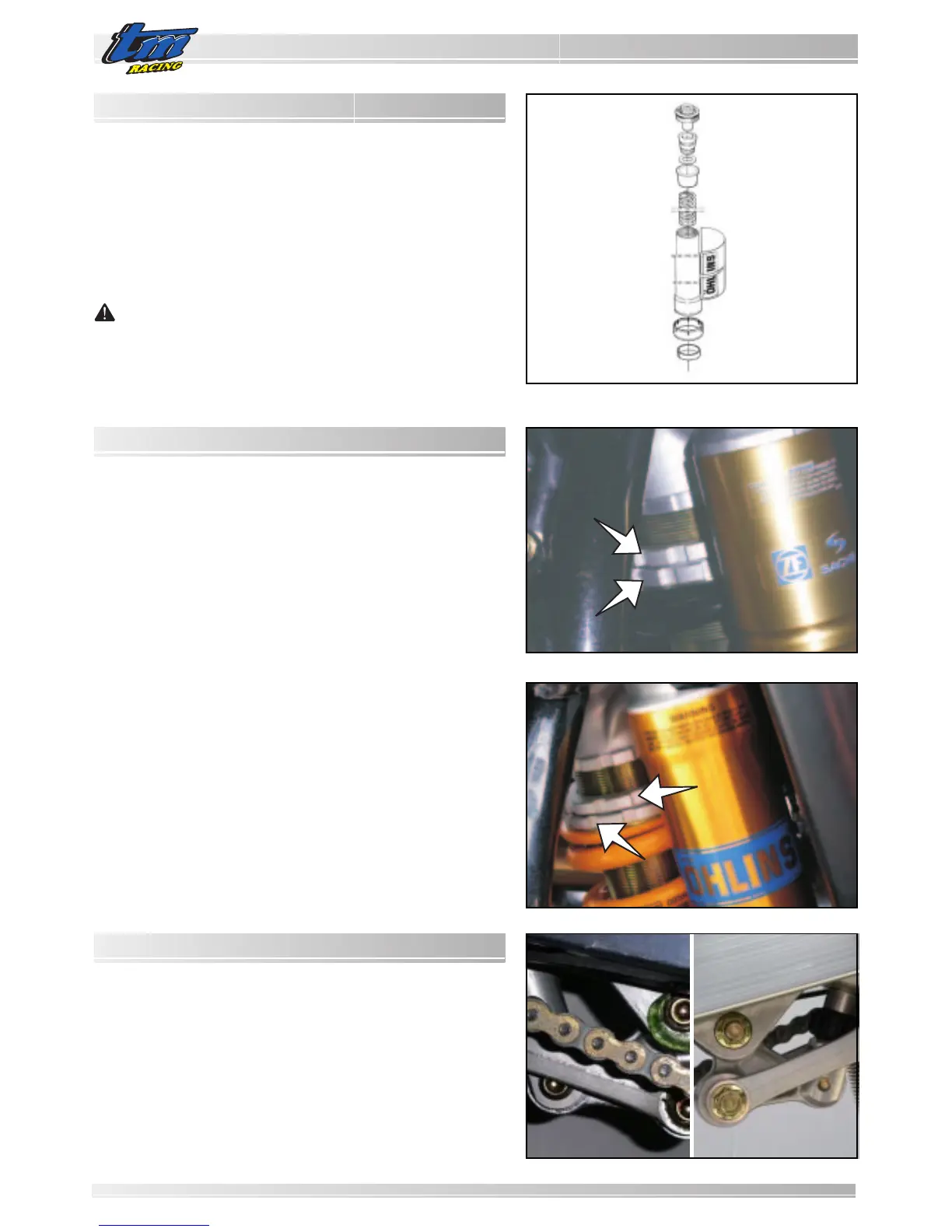

REPLACEMENT OF FORK SPRINGSREPLACEMENT OF FORK SPRINGS
REPLACEMENT OF FORK SPRINGSREPLACEMENT OF FORK SPRINGS
REPLACEMENT OF FORK SPRINGS
If your body weight is less than 70 kg or exceeds 80 kg, adequate fork
springs must be used.
If you are in doubt or have any questions, please contact your authorised
TM dealer.
According to our experience, the dampening grade in compression
can remain unvaried. With a softer spring, the dampening grade in
rebound can be reduced by some clicks, with a harder spring, increased
by some clicks.
WARNING
FOR FURTHER AND MORE DETAILED INFORMATION REGARDING THE
STANDARD AND OPTIONAL FORK, REFER TO THE INSTRUCTION BOOK
SUPPLIED BY THE MANUFACTURER OF THE FORK AND GIVEN BY TM
ACCOMPANYING THE MOTORCYCLE.
VV
VV
V
ARIAARIA
ARIAARIA
ARIA
TION OF REAR SHOCK SPRING PRELTION OF REAR SHOCK SPRING PREL
TION OF REAR SHOCK SPRING PRELTION OF REAR SHOCK SPRING PREL
TION OF REAR SHOCK SPRING PREL
OO
OO
O
ADAD
ADAD
AD
The pre-loading of the spring can be varied by turning the adjustment
ring (5). With this aim, it is advised to disassemble the rear shock and
clean it well.
INDICATION:
- Before varying the spring pre-load you should make note of te basic
adjustment - for example how many thread turns are visible above
the adjustment ring nut.
- By 1 turn of the adjustment ring 5) the spring pre-load varies by 1.5
mm.
Loosen the lock ring nut (6) and turn the adjustment ring nut. By turning
it anti-clockwise (viewed from top) the pre-load decreases, by turning it
clockwise the pre-load increases.
After the adjustment, tighten the lock ring nut (6).
REAR SUSPENSION MECHANICAL LINKAGEREAR SUSPENSION MECHANICAL LINKAGE
REAR SUSPENSION MECHANICAL LINKAGEREAR SUSPENSION MECHANICAL LINKAGE
REAR SUSPENSION MECHANICAL LINKAGE
The rear suspension of all TM motorcycles has a link-rod and rocker
mechanism that progressively changes the lever relationship between
the wheel and the rear shock.
This mechanism works on bearings, which must be cleaned and
greased at the envisioned intervals to maintain the working of the
suspension efficient.
When cleaning the motorcycle with high pressure cleaning devices,
do not aim the jet completely onto the suspension mechanical linkage.
FRAME AND ENGINE MAINTENANCEFRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCEFRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCEFRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCEFRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCE
6
5
6
5
