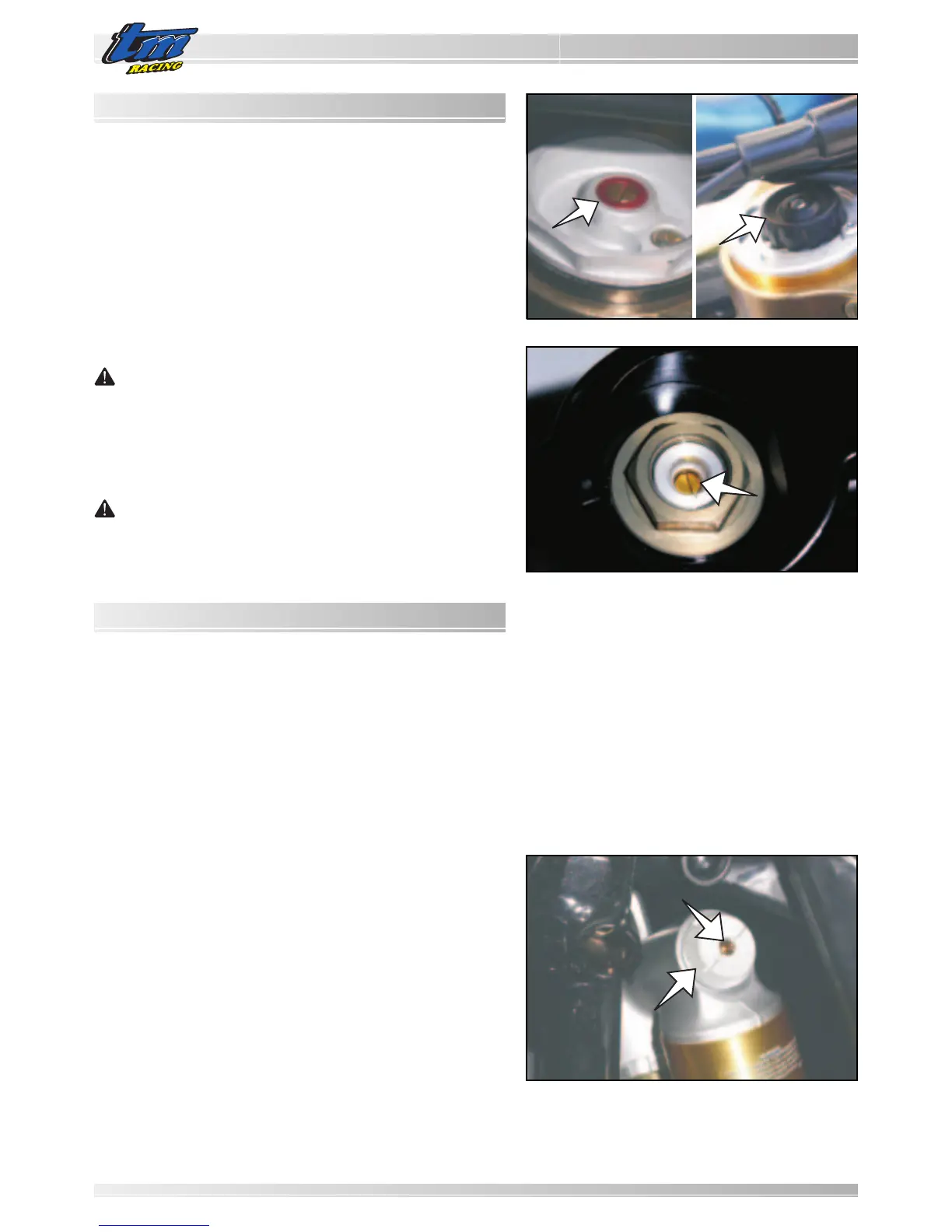

FORK ADJUSTMENT IN REBOUNDFORK ADJUSTMENT IN REBOUND
FORK ADJUSTMENT IN REBOUNDFORK ADJUSTMENT IN REBOUND
FORK ADJUSTMENT IN REBOUND
The hydraulic brake system in extension determines the behaviour of
the fork in the rebound stroke.
The degree of hydraulic braking in rebound can be adjusted on the
basis of pilot preferences and/or hardness of the spring installed.
PAIOLI USD FORK (STANDARD)
The adjustment screw is located in the upper side of the fork cap (4). By
turning it clockwise, braking increases, anticlockwise it decreases. A
total of 28 clicks are available
MARZOCCHI USD FORK (STANDARD)
The adjustment screw is located in the lower part of the fork leg (8). For this
operation, use a screwdriver. By turning the screw clockwise, braking increases,
while turning it anticlockwise, braking decreases. 28 clicks are available in all.
WARNING
BEFORE STARTING IT IS ADVISED TO TIGHTEN THE ADJUSTER FROM THE
STANDARD POSITION TO THE “TOTALLY CLOSED” POSITION AND COUNT THE
CLICKS DETECTED SO THAT THE STANDARD POSITION CAN BE RESTORED.
FOR CONVENTION, THE NUMBER OF CLICKS IS INDICATED FROM THE “TOTALLY
CLOSED” POSITION.
BOTH LEGS MUST HAVE THE SAME ADJUSTMENT.
WARNING
FOR FURTHER AND MORE DETAILED INFORMATION REGARDING THE FORK,
BOTH STANDARD AND OPTIONAL, REFER TO THE “OWNERS MANUAL”
SUPPLIED BY THE MANUFACTURER OF THE FORK SUPPLIED BY TM
ACCOMPANYING THE MOTORCYCLE.
SHOCK SHOCK
SHOCK SHOCK
SHOCK
ABSORBER ABSORBER
ABSORBER ABSORBER
ABSORBER
ADJUSTADJUST
ADJUSTADJUST
ADJUST
..
..
.
IN COMPRESSION IN COMPRESSION
IN COMPRESSION IN COMPRESSION
IN COMPRESSION
The hydraulic brake system in compression determines the behaviour
of the shock absorber in the compression stroke.The degree of hydraulic
braking in compression can be adjusted on the basis of pilot
preferences and/or hardness of the spring installed.
Both standard and optional shock absorbers mounted on the TM offer
the possibility of double adjustment in compression for low and high
speeds.
Low and high speeds mean the movement speed of the damper in
compression and not the speed of the motorcycle.
SACHS SHOCK ABSORBER (STANDARD)
Low speeds- The adjustment screw (6) is located on the top of the
damper gas tank. Use a screwdriver. By turning clockwise, braking
increase, anticlockwise it decreases. A total of 24 clicks are available
High speeds - The adjuster is a knob (7) and is concentric to the low
speed adjustment screw. Act manually. By turning clockwise, braking
increase, anticlockwise it decreases. A total of 20 clicks are available
OPERAOPERA
OPERAOPERA
OPERA
TING CONTRTING CONTR
TING CONTRTING CONTR
TING CONTR
OLSOLS
OLSOLS
OLS
OPERAOPERA
OPERAOPERA
OPERA
TING CONTRTING CONTR
TING CONTRTING CONTR
TING CONTR
OLSOLS
OLSOLS
OLS
