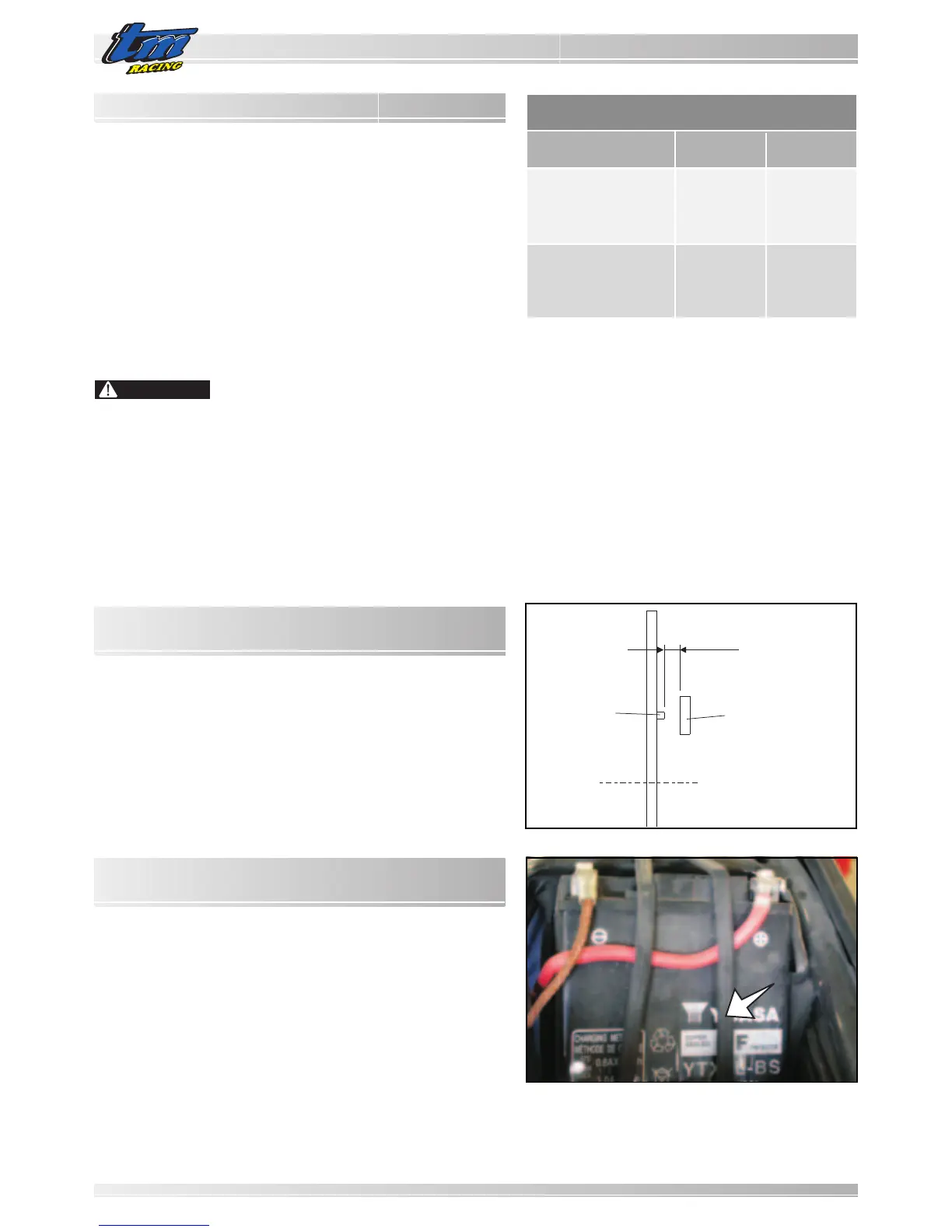

TYRES, TYRE PRESSURETYRES, TYRE PRESSURE
TYRES, TYRE PRESSURETYRES, TYRE PRESSURE
TYRES, TYRE PRESSURE
The type, the state and the pressure of the tyres condition the
motorcycle’s behaviour on the road and they must be checked before
every journey.
- The dimension of the tyres is indicated in the technical data and in
the registration paper.
- The state of the tyres must be controlled before every journey.
Check the tyres by verifying that they are not cut, have nails or other
sharp objects pushed into them.
Regarding the minimum depth of the profile, respect the regulations
in force in your country. We recommend that the tyres are changed at
the latest, when the profile has reached a depth of 2 mm.
- The tyre air pressure must be checked regularly when the tyres are
“cold”. Correct adjustment of the pressure guarantees optimal
comfort when travelling and maximum duration of the tyre.
- HAVE EXCLUSIVELY TYRES OF APPROVED TYPE AND DIMENSIONS
MOUNTED ON YOUR VEHICLE AND HOWEVER ESTABLISHED BY TM.
DIFFERENT TYRES CAN NEGATIVELY CONDITION THE BEHAVIOUR OF
THE MOTORCYCLE ON THE ROAD AND BE THE CAUSE OF FINES
ENVISIONED BY THE REGULATIONS IN FORCE IN YOUR COUNTRY .
- TO GUARANTEE YOUR SAFETY AND THAT OF OTHERS, DAMAGED TYRES
MUST BE REPLACED IMMEDIATELY.
- EXCESSIVELY WORN TYRES NEGATIVELY CONDITION THE BEHAVIOUR
OF THE MOTORCYCLE, MOST OF ALL ON WET SURFACES.
- INCORRECT PRESSURE LEADS TO ANOMALOUS WEAR AND
OVERHEATING OF THE TYRE.
CHECK/ADJUSTMENT OF MAGNET SENSORCHECK/ADJUSTMENT OF MAGNET SENSOR
CHECK/ADJUSTMENT OF MAGNET SENSORCHECK/ADJUSTMENT OF MAGNET SENSOR
CHECK/ADJUSTMENT OF MAGNET SENSOR
DISTDIST
DISTDIST
DIST
ANCE (A)ANCE (A)
ANCE (A)ANCE (A)
ANCE (A)
The distance between magnet (2) and sensor (1) must be 2-4mm.
Otherwise the tachometer may work irregularly.
In the END versions, the magnet is positioned in the rear wheel, while
in the SMR,SMM versions in the front one.
BABA
BABA
BA
TTERY (END/MX/SMR/SMM/SMX)TTERY (END/MX/SMR/SMM/SMX)
TTERY (END/MX/SMR/SMM/SMX)TTERY (END/MX/SMR/SMM/SMX)
TTERY (END/MX/SMR/SMM/SMX)
(ALL MODELS WITH E.S.)(ALL MODELS WITH E.S.)
(ALL MODELS WITH E.S.)(ALL MODELS WITH E.S.)
(ALL MODELS WITH E.S.)
The saddle must be removed to access the battery.
The battery does not require maintenance.
It is not necessary to check the level of the electrolyte or top-up with
water.
The battery poles only must be cleaned and, if necessary, slightly
greased using grease that does not contain acids.
Battery disassembly:
First remove the negative pole and then the positive pole from the
battery.
Disconnect the elastic stripes (1).
Remove the battery.
When mounting the battery, insert it with the poles toward front (see
figure), first connect the positive pole and then the negative pole to the
battery.
DANGER
2-4 mm
1
2
FRAME AND ENGINE MAINTENANCEFRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCEFRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCEFRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCEFRAME AND ENGINE MAINTENANCE
FRAME AND ENGINE MAINTENANCE
TYRE PRESSURETYRE PRESSURE
TYRE PRESSURETYRE PRESSURE
TYRE PRESSURE
TYRE PRESSURETYRE PRESSURE
TYRE PRESSURETYRE PRESSURE
TYRE PRESSURE
FRONTFRONT
FRONTFRONT
FRONT
REARREAR
REARREAR
REAR
Off-road
Road, rider only
1.1 bar
1.7 bar
1.1 bar
1.7 bar
