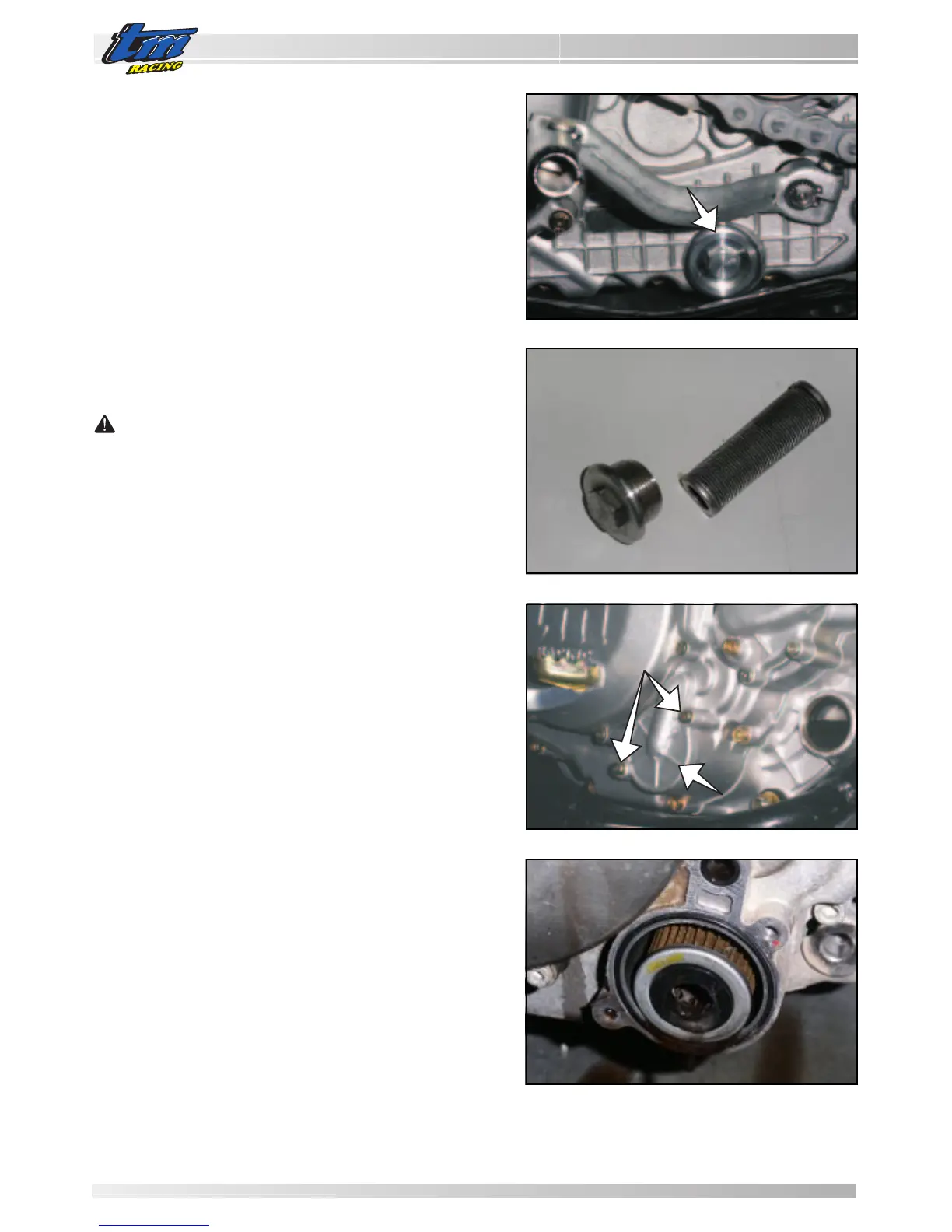

CLEANING NET OIL FILTER (after having emptied the oil from the
engine)
The net oil filter is located in the lower part of the engine and is
accessible through the cap (2) situated in the left side, under the gear
lever.
Unscrew the cap and remove the filter. Wash with petrol or other solvent
and blow.
Remount, taking care to place the filter correctly in its seats on the
base of the engine and in the cap. Tighten at 20 Nm.
WARNING
THE NET OIL FILTER MUST BE MOUNTED CAREFULLY. INCORRECT MOUNTING
PREVENTS FILTERING OF THE OIL SUCKED BY THE DELIVERY PUMP WITH THE
RISK OF DAMAGING BOTH THE PUMP AND OTHER ENGINE COMPONENTS.
REPLACEMENT OF OIL FILTER CARTRIDGE
(after having emptied the oil from the engine)
The cartridge oil filter is situated on the right side of the motorcycle
underneath the cover(1). Place a container under the engine to collect
the oil that escapes from the filter compartment. Loosen the two screws
(2), remove the cover and extract the filter cartridge.
Wait until the oil has drained completely, then clean the sealing surfaces
of the transmission cover and filter cover, check the O-Ring and replace
it if necessary.
Insert a new filter cartridge, making sure that the open side is towards
the outside of the engine. The filter must slide into the transmission
cover as far as possible in its seat.
