Each Function Setting
1. Memory Selection

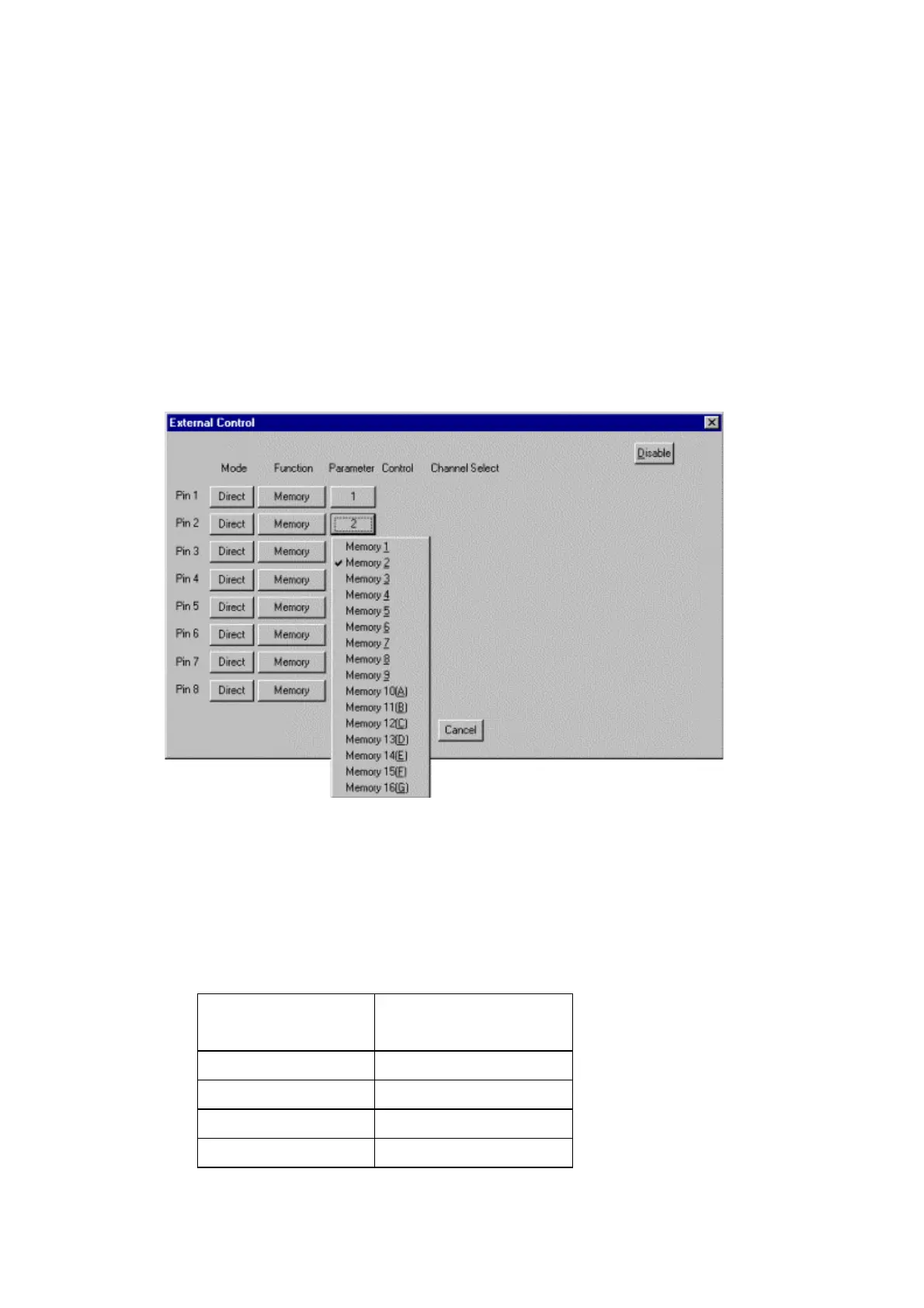

(A) Direct Mode Memory Selection
Select arbitrary memory numbers (1 - 16) and assign them to the terminals.
(1) Set Mode for “Direct.”
(2) Set Function for “Memory.”
(3) Set memory numbers 1 - 16 at Parameter.
(B) Binary Mode Memory Selection
When selecting 9 or more memories with a single DQ-C01 unit but the number of function
terminals is insufficient, you can increase the number of memories to be selected with the
small number of terminals by selecting Binary Mode.
(1) Depending on the number of memories to be used, set mode of necessary terminals to
"Binary".
Number of memories
to be used
Terminals to be set for
Binary Mode
Memories 1 and 2 Terminal 8
Memories 1–4 Terminal 7 (and 8)
Memories 1–8 Terminal 6 (7 and 8)
Memories 1–16 Terminal 5 (6, 7 and 8)
(2) Register the function into "Memory".
To Next Page
