10. Contents Viewer
This section explains about each Contents Viewer.
To display the Contents Viewer, click the desired box of the Flow Viewer.
Matrix
- The symbols in the matrix-control boxes indicate the input/output routing.
- Double-clicking a matrix-control box toggles the display between on/off.
- The bold line framing a matrix-control box indicates the selected matrix point.
- By moving the fader switch up or down, you can change the level of the selected matrix point.
- The level for the selected matrix point is indicated as a numerical value on the level-setting
button. Clicking this button enables you to directly input a numerical value. The spin button on the
right allows you to increase or decrease the level in increments of 1 dB.
- The polarity-inversion button displays the polarity status of the selected matrix point. Click this
button to invert the polarity.
- Click the value-display-switching button to display the level setting of each matrix point.

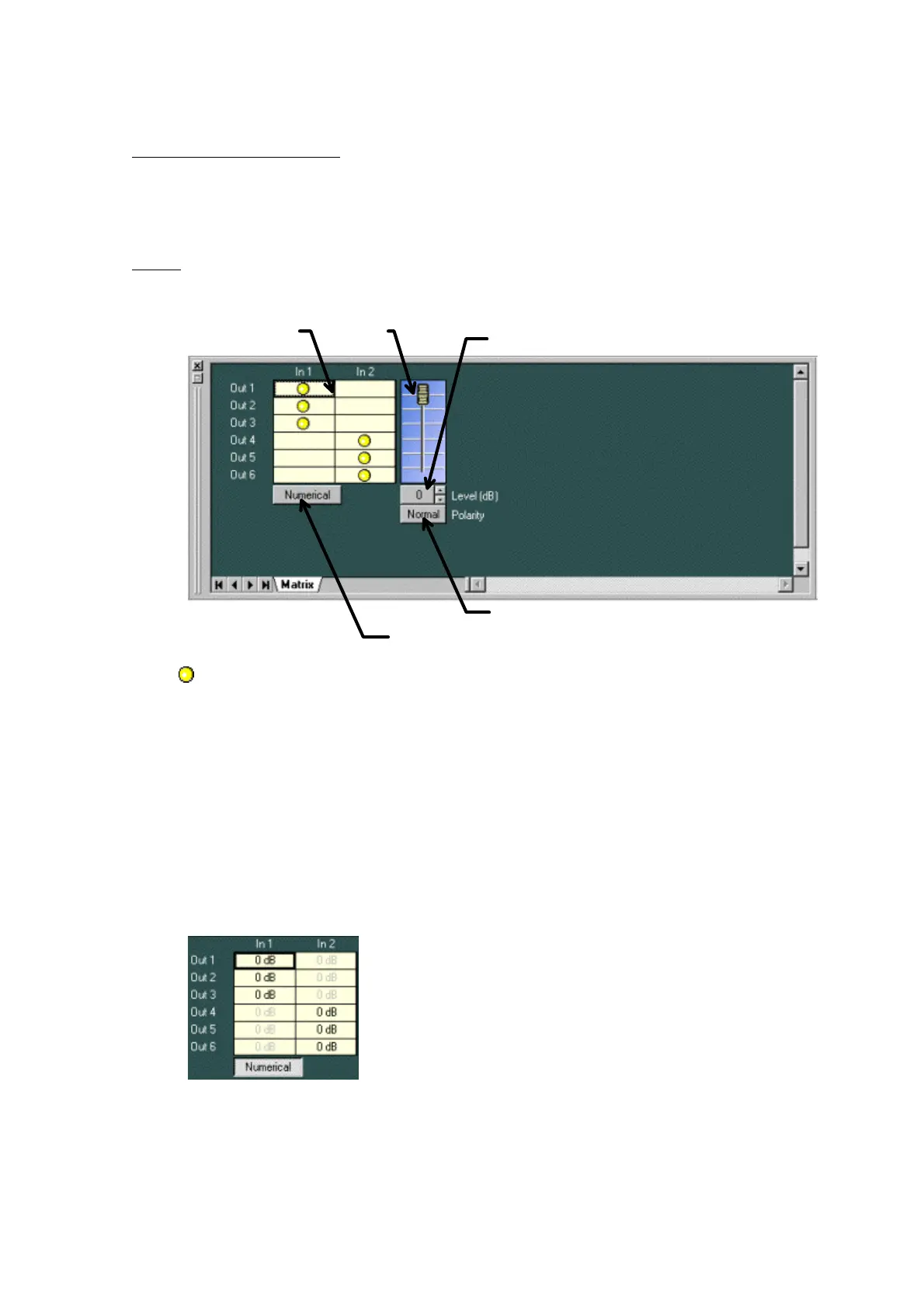

Fader
Value-display-switching button
Polarity inversion button
Level-setting button
Matrix control
