DIGITAL TORQUE WRENCH “DATA TORK” MODEL CEM3-G
(6) Power saving function
If not used for 1 minute, 7-segment LED darkens to save power. Touch any key then it returns.
(7) Auto power off function
If not used for 3 minutes, it automatically turns off.
(8) Residual battery indication

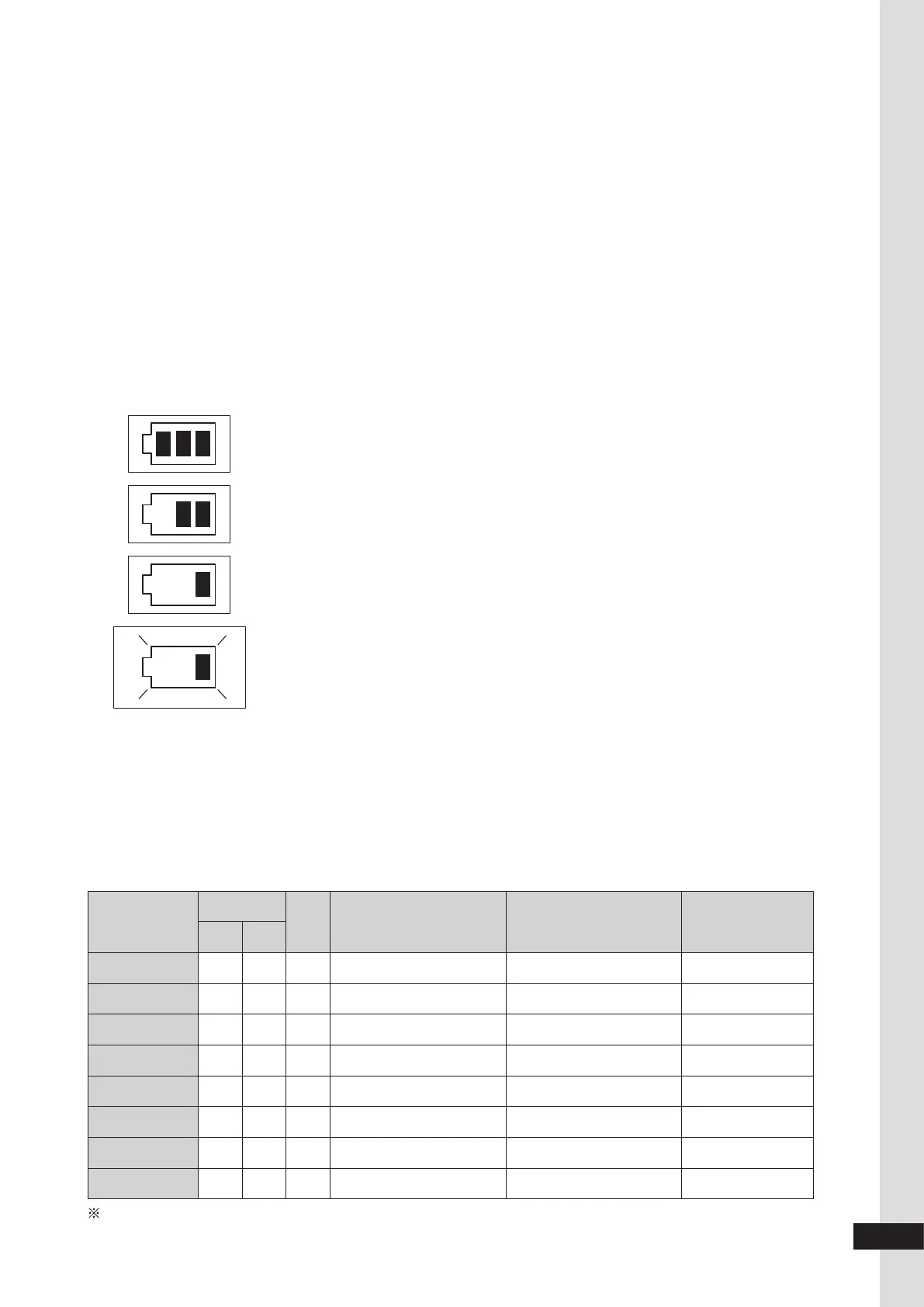

Battery condition is indicated on LDC by the following 4-step indicator.
Enough battery remains.
About half the battery is gone.
It is time to charge battery.
"LoBATT" alarm condition
No battery. Charge immediately.
No key operation works, and it automatically turns off in 1 minute.
(Saved data will not be deleted)
(9) Over torque alarm
If it exceeds 105% of max capacity torque, the display shows torque value and "- - -"
alternately, and buzzer sounds.
(10) Table: Over torque alarm, peak hold starting torque table.
MODEL
TORQUE RANGE
1 digit
Over torque alarm Minimum Peak hold torque Auto zero adjustment
MIN MAX
(105% of max capacity torque) (7.5% of max capacity torque) workable torque
CEM10N3-G 2.00 10.00 0.01 10.50 0.75 0.75
CEM20N3-G 4.00 20.00 0.02 21.00 1.50 1.50
CEM50N3-G 10.00 50.00 0.05 52.50 3.75 3.75
CEM100N3-G 20.0 100.0 0.1 105.0 7.5 7.5
CEM200N3-G 40.0 200.0 0.2 210.0 15.0 15.0
CEM360N3-G 72.0 360.0 0.4 378.0 27.0 27.0
CEM500N3-G 100.0 500.0 0.5 525.0 37.5 37.5
CEM850N3-G 170 850 1 893 64 64
For the units other than N·m, calculate the torque value based on the unit conversion table on "Page 22".
