Tohnichi DATA TORK CEM3-G User Manual

This chapter shows operation examples on case-by-case basis.
LCD and LED displays are respectively shown. If you select LCD for display mode, LED display
will be kept off (Refer to P24 (11) Display mode setting.). For detailed setting method, refer to
10. Settings on P22.
(1) Inspection mode (Without OK/NG judgement)
Setting
Measurement mode: MODE-M
DUAL MODE LCD MODE
13
 DIGITAL TORQUE WRENCH “DATA TORK” MODEL CEM3-G
8

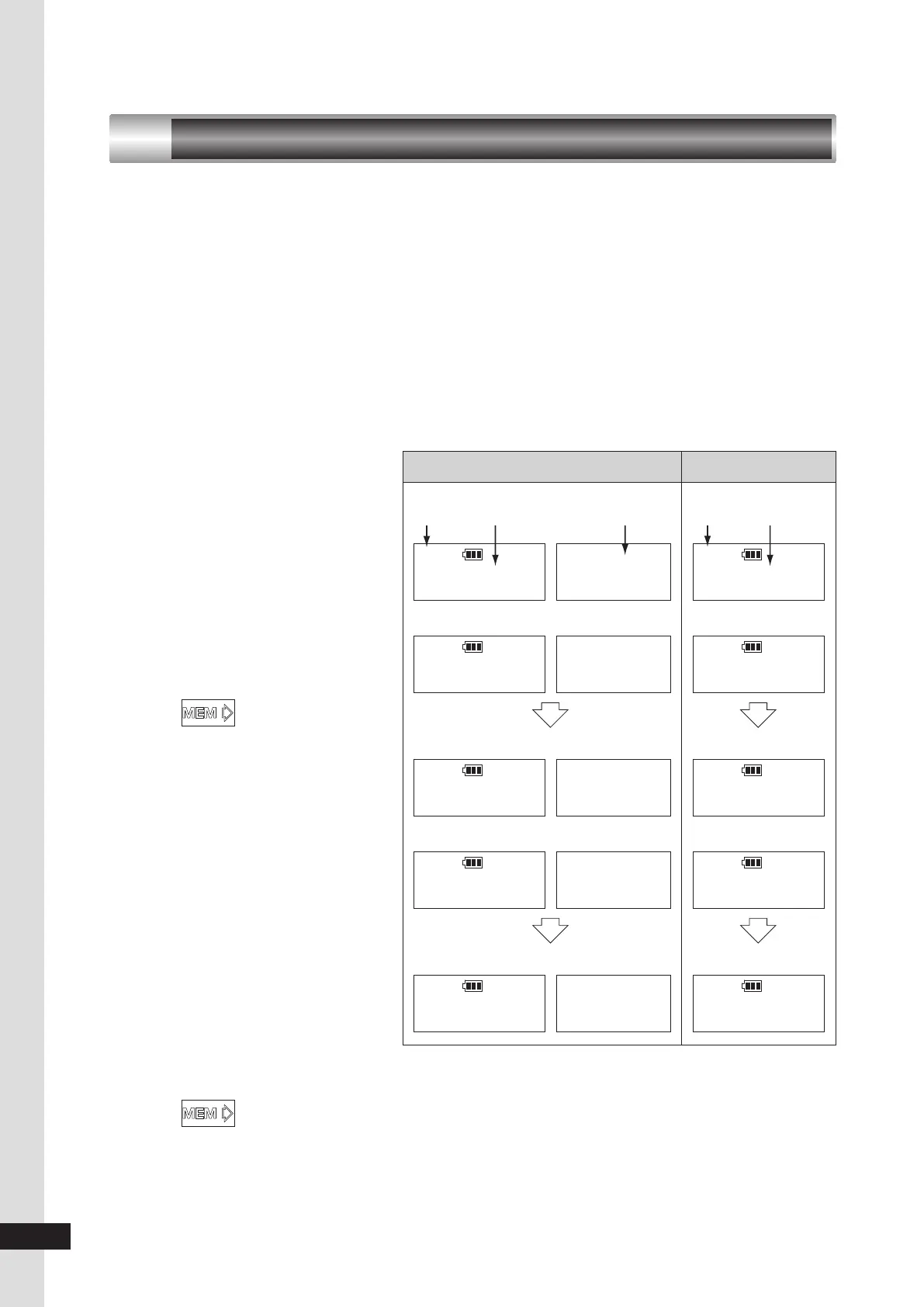

Operation examples (Dual display mode)
N·m
0.0
09 : 30
001
N·m
001
0.0
Set the counter to 001
N·m
100.0
09 : 30
001
N·m
001
100.0
Apply torque
N·m
0.0
09 : 30
002
N·m
002
0.0
Proceed to the next counter
N·m
100.0
09 : 30
002
N·m
002
100.0
Apply torque
Proceed to the next counter
N·m
0.0
09 : 30
003
N·m
003
0.0
Upper limit setting: 0
Lower limit setting: 0
1. Set the counter to 001-999 (M-
3 mode) or 01-99 (M-2 mode).
2. As you apply torque, it captures
the peak value.
Note) Peak hold function works only
when it reaches over 7.5% of
the max capacity torque.
3. Push to save the peak
value and the measured time
and proceed to the next counter
(If Auto memory/reset is set, it
proceeds automatically.). When
connected to PC or printer,it
outputs the measured data.
4. Apply torque for the next
counter in the same way.
Note) Old data may remain on the
counter. In this case, the data
will be renewed when the applied
torque exceeds the old data.
5. Push to save the peak
value and the measured time
and proceed to the next counter
(If Auto memory/reset is set, it
proceeds automatically.).
Time Counter Torque Counter Torque
