DIGITAL TORQUE WRENCH “DATA TORK” MODEL CEM3-G
(1) Interchangeable head
Picture above shows attached QH interchangeable head. Tohnichi head SH, RH, QH,
RQH, DH, HH, FH are also available.
PH cannot be used.
(2) Protection cover
This cover protects from scratch and breakage.
(3) Liquid crystal display (LCD)
It shows clock, remaining battery, counter, and auto memory condition on dual display mode. It
shows counter, auto memory, remaining battery, unit, and torque value on LCD display mode.
(4) 7segment LED display
It shows torque value on dual mode. LED will be off in LCD mode.
(5) Unit display
It shows torque unit.
(6) Tightening completion, judgment OK/NG LED
Green LED turns on for tightening completion (OK) and red LED turns on for NG.
(7) : Power button
Switch to power on and off.When power is on, do zero check on torque measurement.
(8) : Counter send key
Send a counter one by one or continuously to read out the measured data.
Keep pushing to fast-forward.
(9) : Counter return key
Reverse one counter or continuously to read out the measured.
Keep pushing to fast-forward.
(10) Terminal cover
This cover protects each terminal from dust and debris.
(11) : Mode key
When counter 000: Push it for 2 seconds to enter settings.
When counter 001-999: Push it to process the measured data (max, min, ave, etc).
4

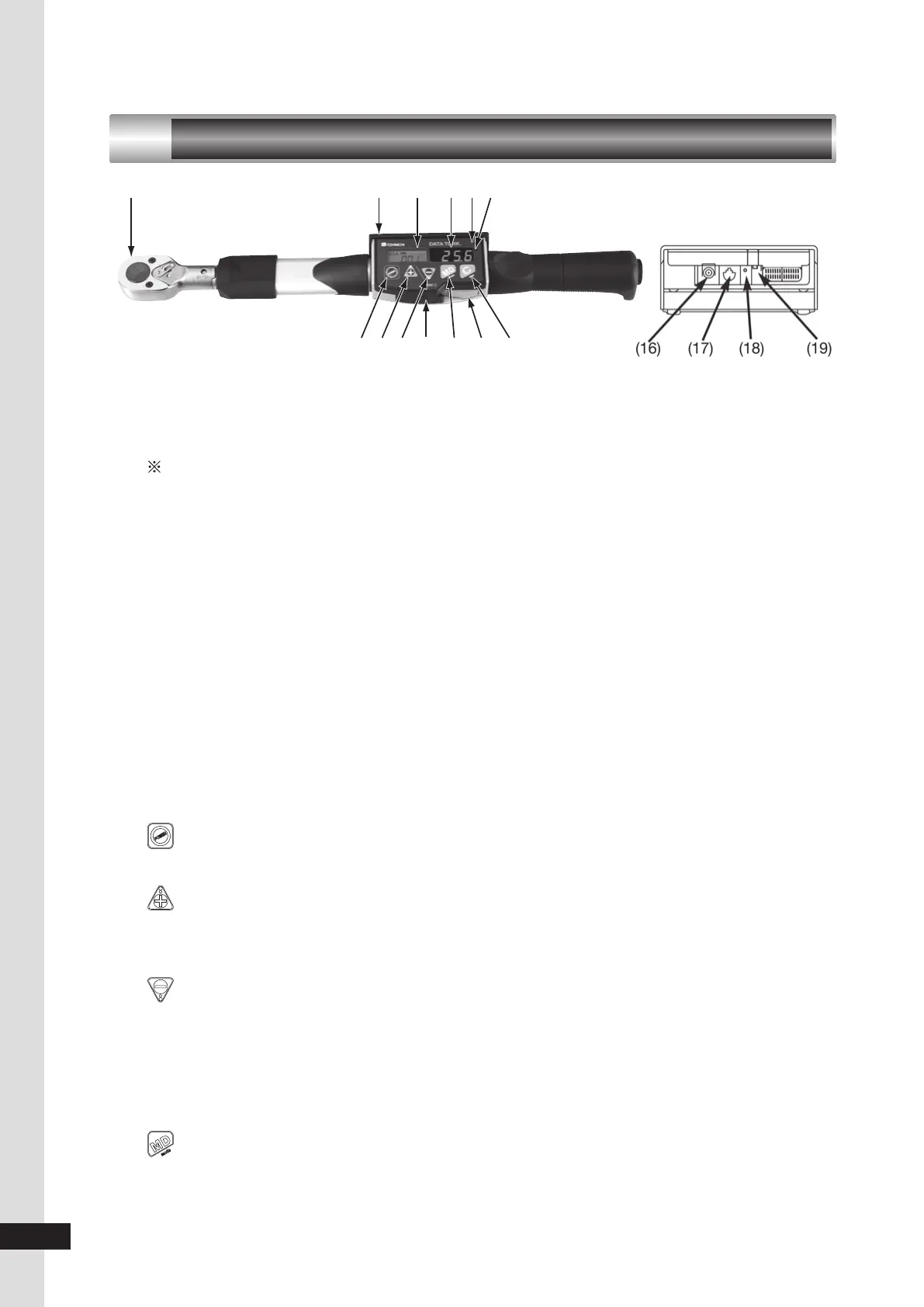

Components
(1) (2) (3) (4) (5) (6)
(7) (8) (9) (10) (11) (12) (13)
