 DIGITAL TORQUE WRENCH “DATA TORK” MODEL CEM3-G
(12) : Memory key
Saves the measured data and proceed to the next counter. Transfers the data to external device.
(13) : Clear key
Clear saved measurement data (measurement value,date). On run mode do auto zero
adjustment.
(14) Grip
Battery pack (BP-5) is stored inside.
(15) Cap
Remove this cap when exchanging batteries (counter clockwise).
(16) Charge jack
Connect BC-3-G charger to this jack for charging.
(17) External output terminal
Connect USB cable (No. 584) to this terminal.
(18) Infrared output window
Terminal to transfer data to Tohnichi infrared data receiver R-DT999.
(19) Reset button
Push reset button display error or malfunction happens.
No need to push every time after charging.

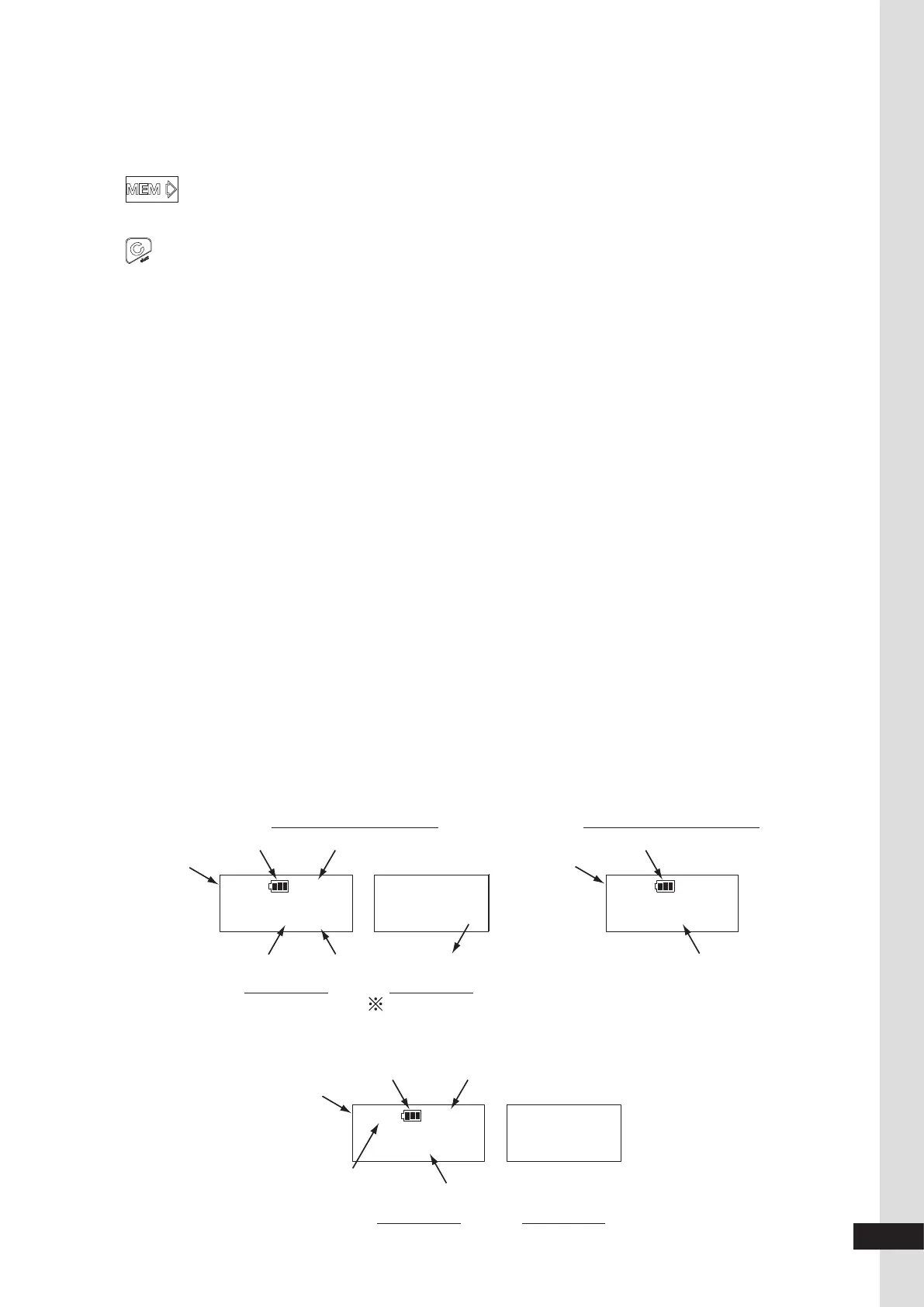

• LCD display mode (Power saving mode)
[Display details]
• Dual display mode (Delivery condition)
12 : 45
N·m
120_
LCD display LED display
Auto memory ON
TorqueCounter
Clock display
(T:M:S)
Battery remaining Unit
Display of measurement
100.0
120_
N·m
12:45:50
Clock display (T:M:S)
Counter
Battery remaining
LCD on memory read out
7 segment LED
120_
N·m
100.0
LCD display LED display
Torque
Auto memory ON
Counter
Battery remaining Unit
