 DIGITAL TORQUE WRENCH “DATA TORK” MODEL CEM3-G
(6) Output data at a time (PC, Printer)
Outputs the selected range of measured data (measured value/measured time) to an external
device at a time. According to the external device, select the communication settings as follows
(Refer to P23 (8) Communication mode setting).
To PC through RS232C (No.575): select "PC"
To use USB cable (No.584): select "USB"
To printer (EPP16M2): select "PRN"
Note) Make sure to set the output baud rate in advance (Refer to P24 (9) Communication baud
rate setting).

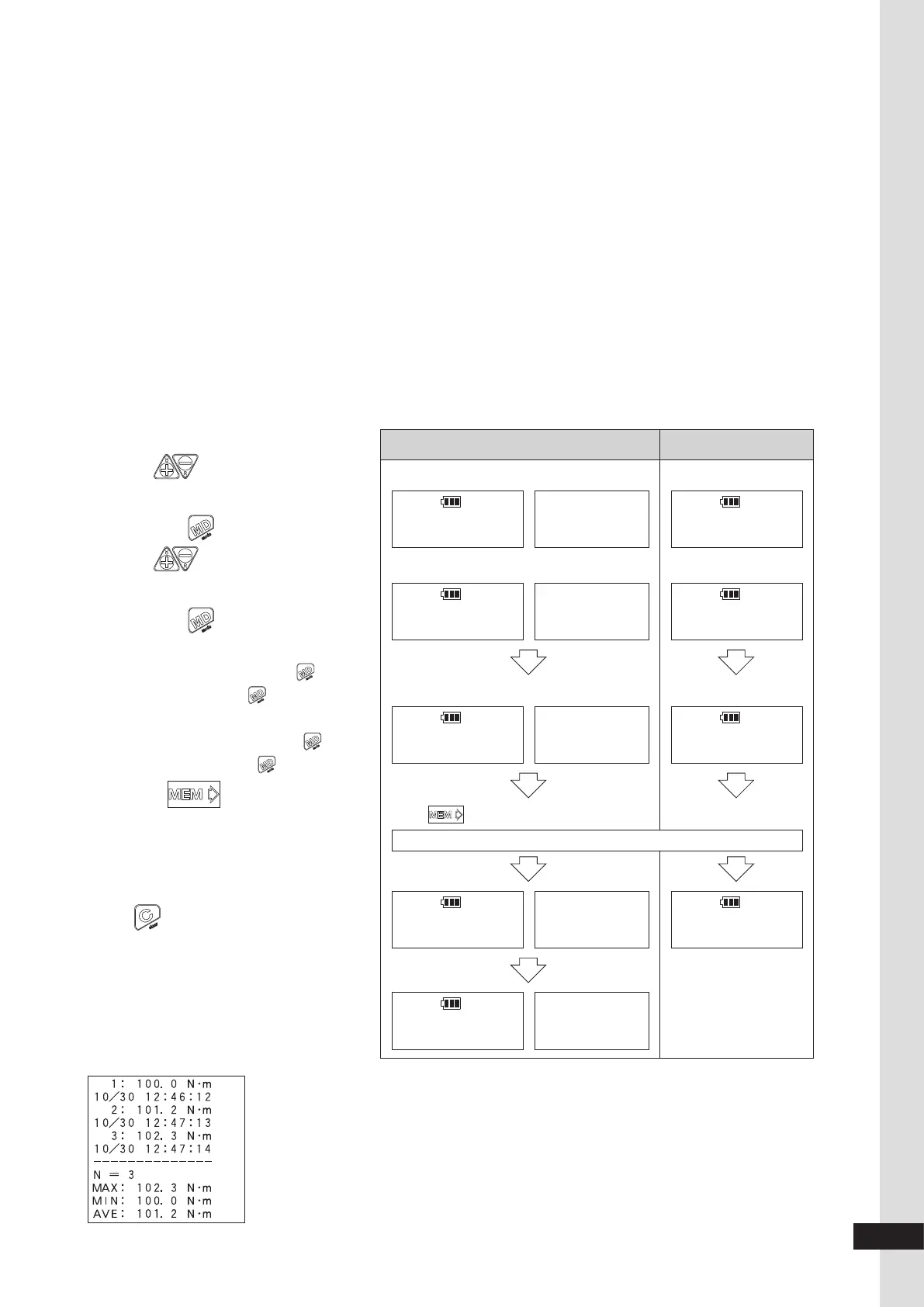

DUAL MODE LCD MODE
N·m
52.0
10 : 30
200
N·m
200
30.0
Set the upper end of data
N·m
1
200
STT
N·m
200
STT 1
Set the lower end of data
N·m
200
200
N
N·m
n
200
N·m
n
200
The number of data to output
Push to start output
N·m
200
N
N·m
200
200
N
1. Use key to set to the
upper end of the data to output
and push .
2. Use key to set to the
lower end of the data to output
and push .
Example 1) To output the data 001-200:
Set the counter to 200 and push . Check
STT shows 1 and push to confirm.
Example 2) To output the data 101-200:
Set the counter to 200 and push . Then
set STT to 101 and push to confirm.
3. Push to output the
measured data to the external
device.
Note) To cancel the operation, push
key during the above
process. (You cannot cancel
when the data is being
output.)
Data to output start
Printing Sample
