Tomey AL-4000 User Manual

3-11 䕔 

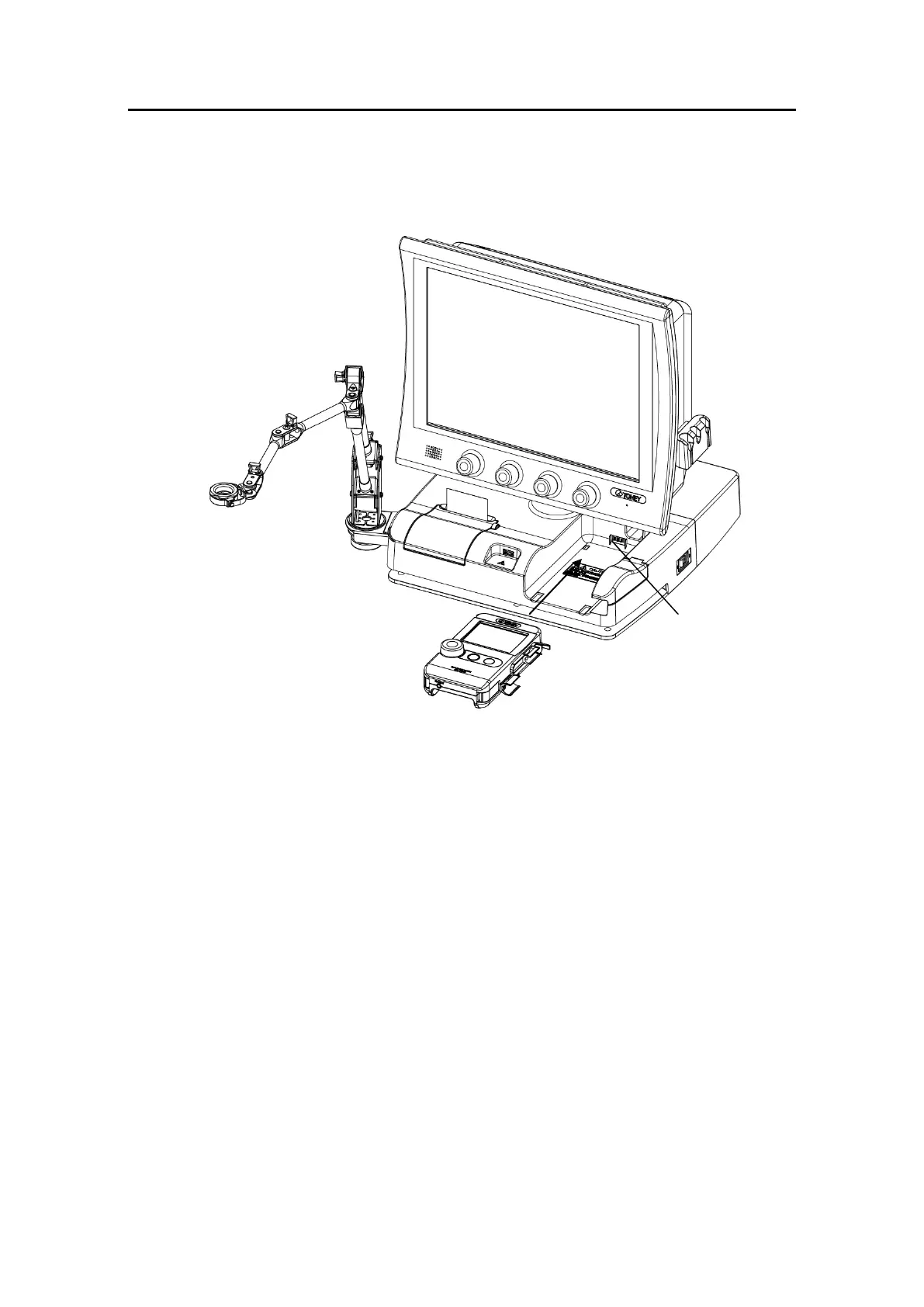

[Built-in connection]
Directly connect the instrument to UD-8000.
Slowly push and slide the instrument to the back.
When the instrument is assembled in the UD-8000 main unit, power
is supplied to the instrument via the UD-8000 power terminal (1).
Slowly pull out the instrument toward you to remove it.
The measurement data is communicated via wired connection or
wireless connection. Refer to “Wired connection” and “Wireless
connection” in this section for details.
(1)
(Fig.
1)
