Tonghui TH1953 - Setting the GPIB Address; General Bus Commands

41
GPIB System Interconnection for Double-piggyback Connector
Method 2 of GPIB cable connection:

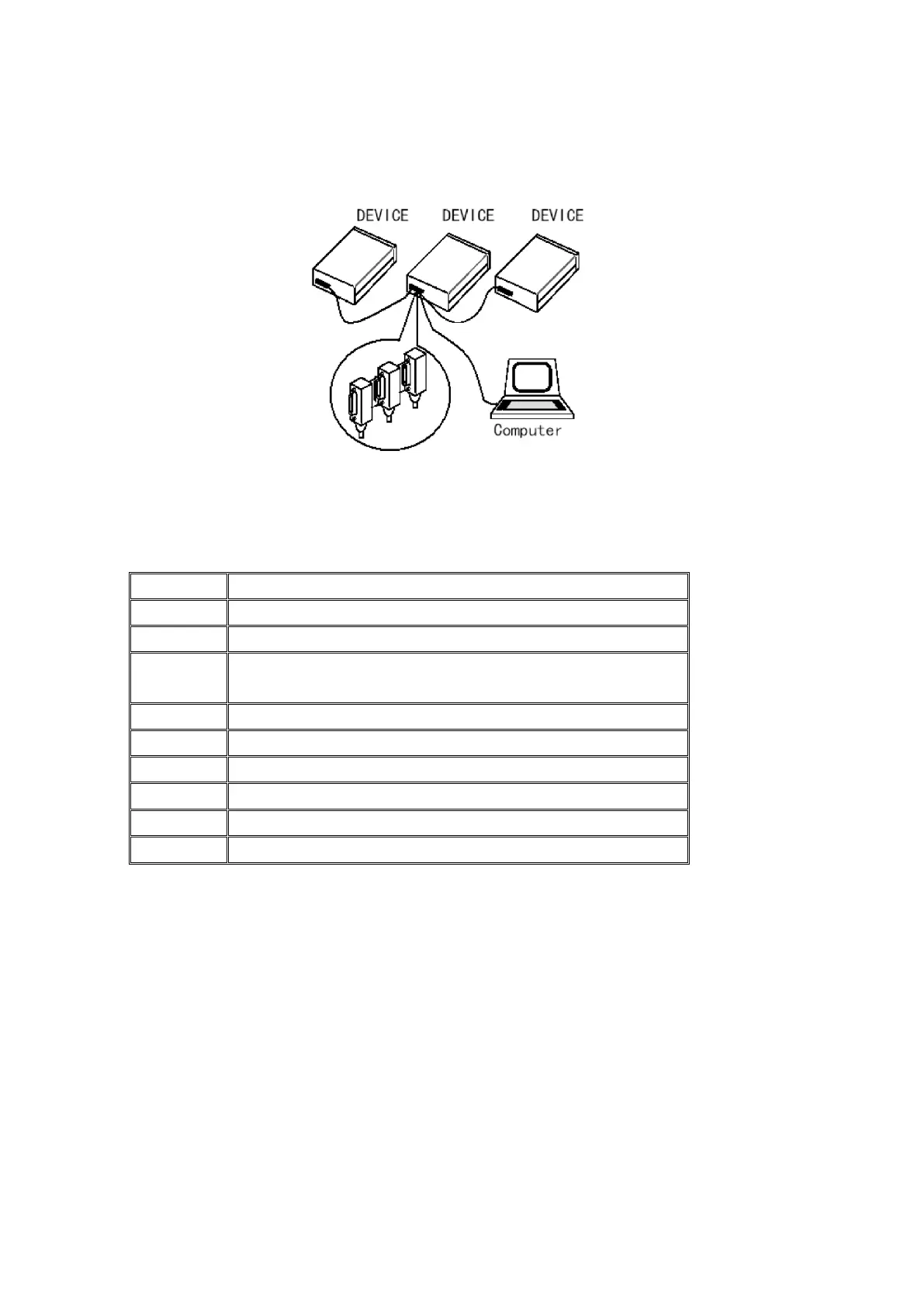

GPIB System Interconnection for 3-piggyback Connector
GPIB interface function
This instrument provides most of the general functions of GPIB except the controller, see the following table:
Code name
Function
SH1
Support all data source contact function
AH1
Support all receiver contact function
T5
Basic talker function, talk only function, talk is cancelled when in
MLA, serial point name is not supported
L4
Basic Listener function, the MTA is cancelled, no listening function
RL1
Remote control / local function
DC1
Device clear function
DT1
Device trigger function
C0
No controller function
E1
Open collector drive
6.5.2 Setting the GPIB Address
The instrument's GPIB is addressed in a single address mode with no secondary address; the default GPIB address
of the TH1963 is 8. Users can set their own GPIB address (0~30), and the address value can be automatically
saved in non-volatile memory. In a GPIB bus system, it is not allowed to assign the same address as other devices
or controllers (computers).
6.5.3 General Bus Commands
General bus commands (like DCL) are the same meaning regardless of the machine. General commands and
auxiliary instructions:
