ESC measurement
After selecting [ESC] function in the main interface
of measurement, press [OK] to enter the function
and display the following interface.

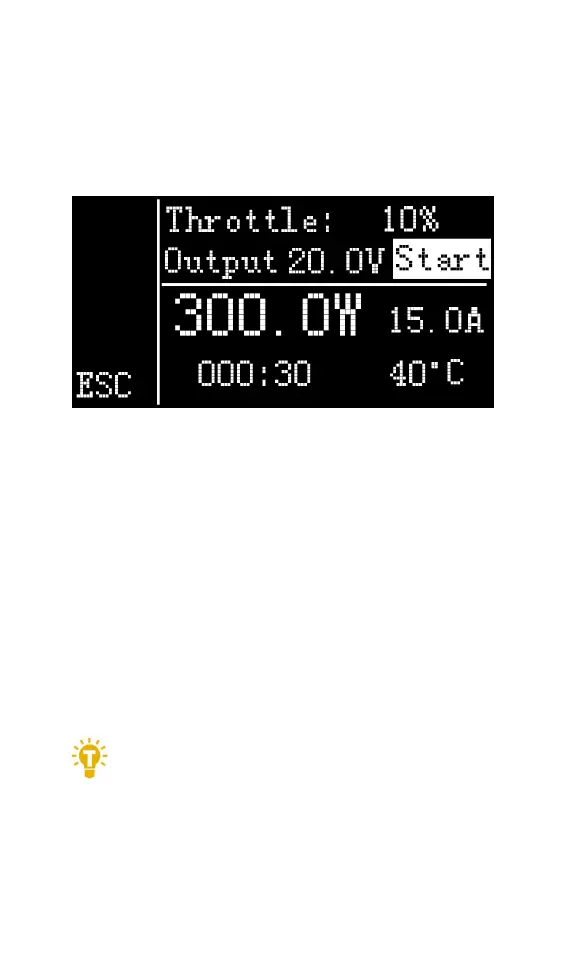

Display instructions:
Throttle signal 10% : PWM signal value to be output
from the signal
Output 20.0V: Input voltage value, straight output
from the main port
Start: After pressing the OK button, the output signal
and the main port voltage are started.
300W: The power being output
15.0A: Current being output
000:30: Working time
40°C: current internal temperature of the device
=================================
Tip: 1, please do not connect the battery
under this mode, otherwise it may damage
the device
2. Please adjust the throttle value slowly during the
test to avoid the current being too large.
=================================
