Capturing OCT

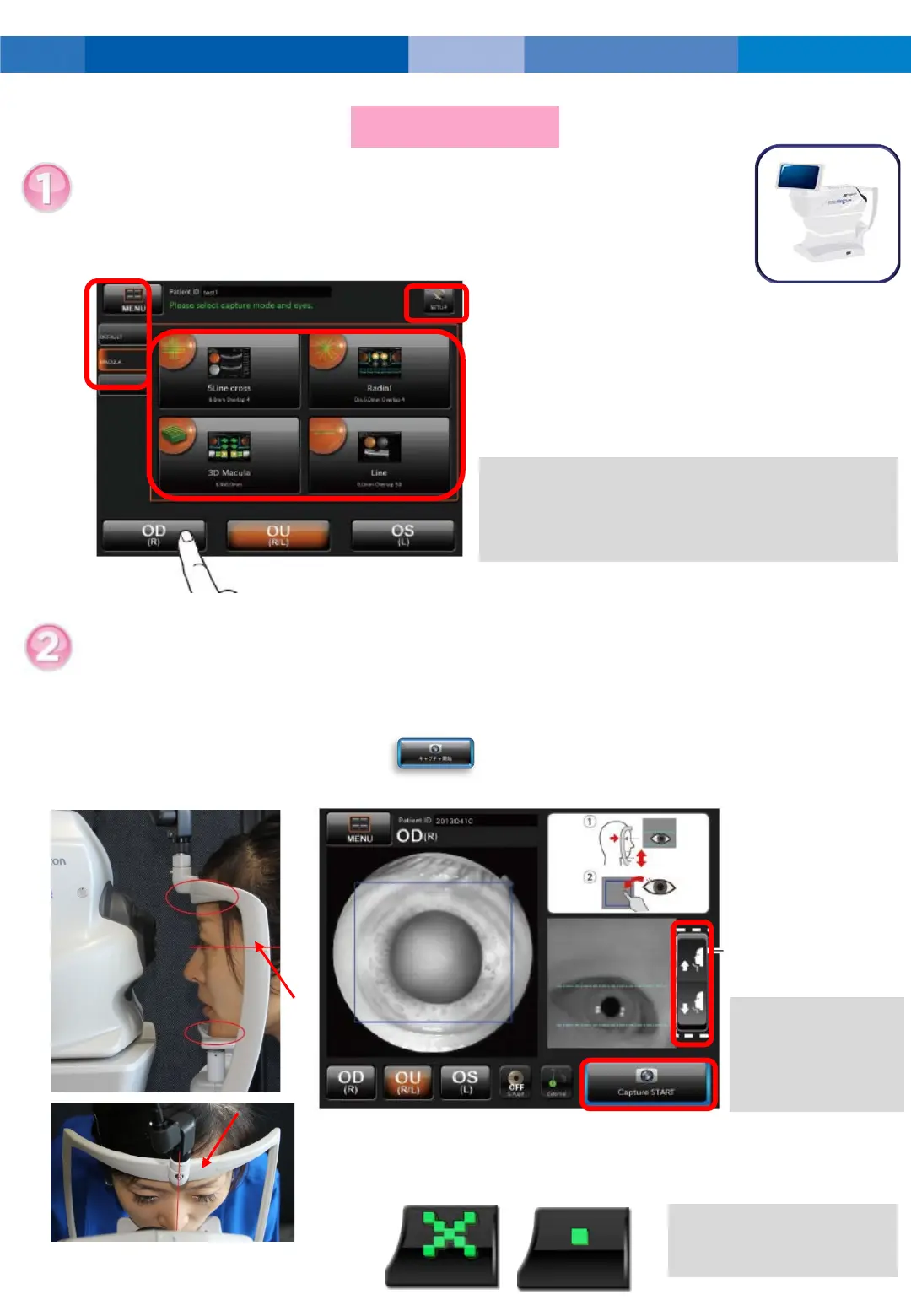

Select the eye to capture OD(Right), OU (both) or OS(Left).
Select one of the scans in the Capture icons menu on OCT monitor.
It is possible to change the tab name, scan
patterns (max 4 a tab), scan protocols, in
[SETUP].
Please see users manual for the detail.
MENU
Set the patient face on chinrest. Keep the chin and forehead stable.
Be sure to adjust the chinrest height to align the “eye marker” and the
corner of eye.
Then, touch [Capture START] .
Capture Icons
SETUP
Chinrest UP-DOWN
button
It is OK to touch
[Capture START]
if the pupil comes
roughly inside
light-blue lines.
Capture START
button
OCT
Please tell the patient to
look at the fixation
target.
Internal Fixation Target
