Topcon LS-B4 User Manual

1NOMENCLATURE AND FUNCTIONS
1-3

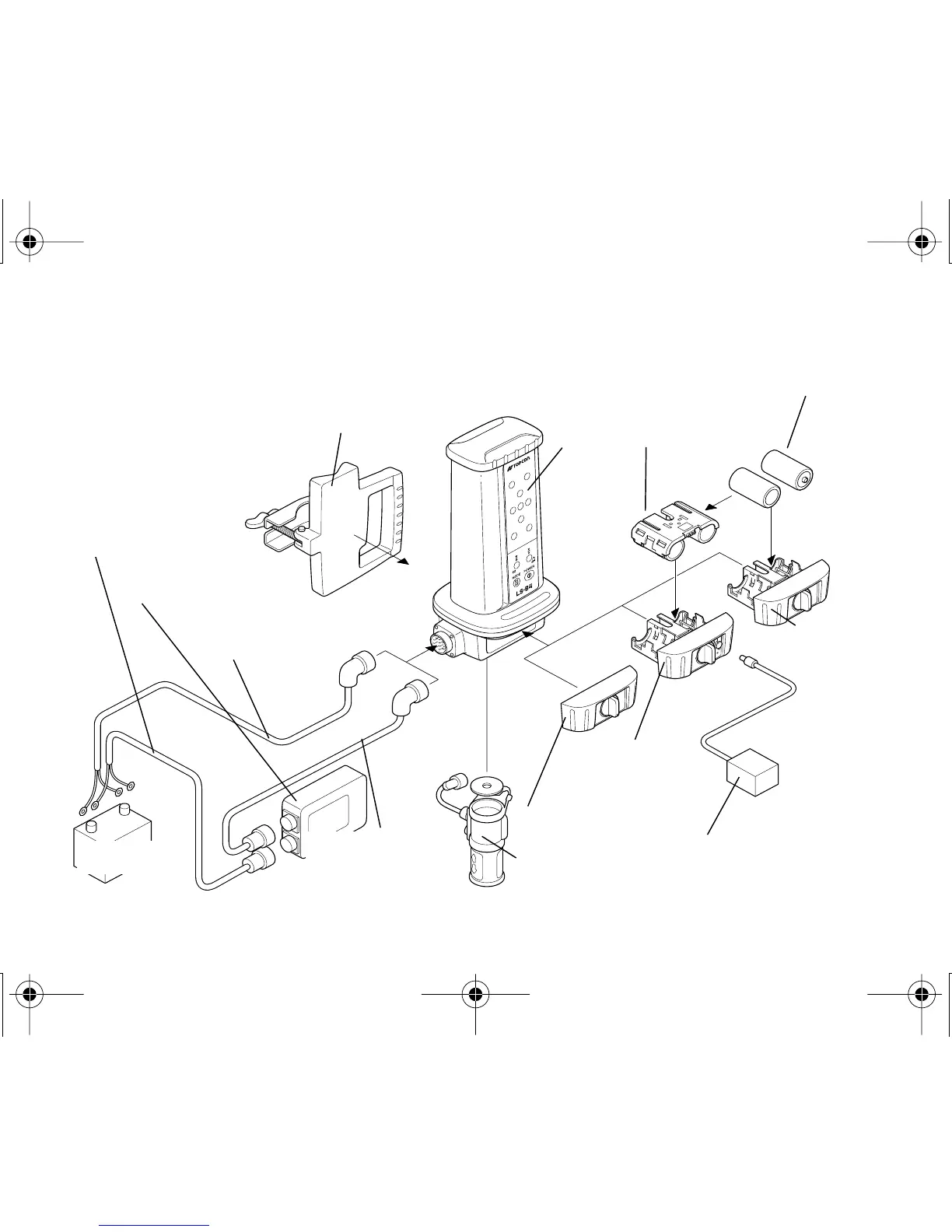

1.3 Connection diagram
LOCK
LOCK
LOCK
LS-B4
Hand Grip / Mast Clamp
Battery cable PC-18
(#9060-5033)
(Optional accessory)
Remote display RD-2
(Optional accessory)
Trackerjack
(Optional accessory)
Battery cover
Battery holder
DB-54C
Battery holder
DB-54
AC/DC converter
AD-9B/7C
Battery cable PC-20
(#9060-5087)
(Optional accessory)
Joint cable JC-7
(#9063-1035-20)
(Optional accessory)
Battery of
the machine
D-size Dry cell
Battery Pack
BT-54Q
