Topcon LS-B4 User Manual

5 OPTIONAL ACCESSORIES
5-2
5.1 Connection to other instruments
Connect LS-B4 to other instruments and power supply as follows.
When connecting LS-B4 to the battery of a machine, connect the red clip of the power
cable (PC-18 or PC-20) to the positive side of the battery and the black clip to the
negative side (or ground).
5.1.1 Connecting the RD-2 and LS-B4
MODE
POWER
PC-18
(#9060-5033)
JC-7
(#9063-1035-20)
RD-2

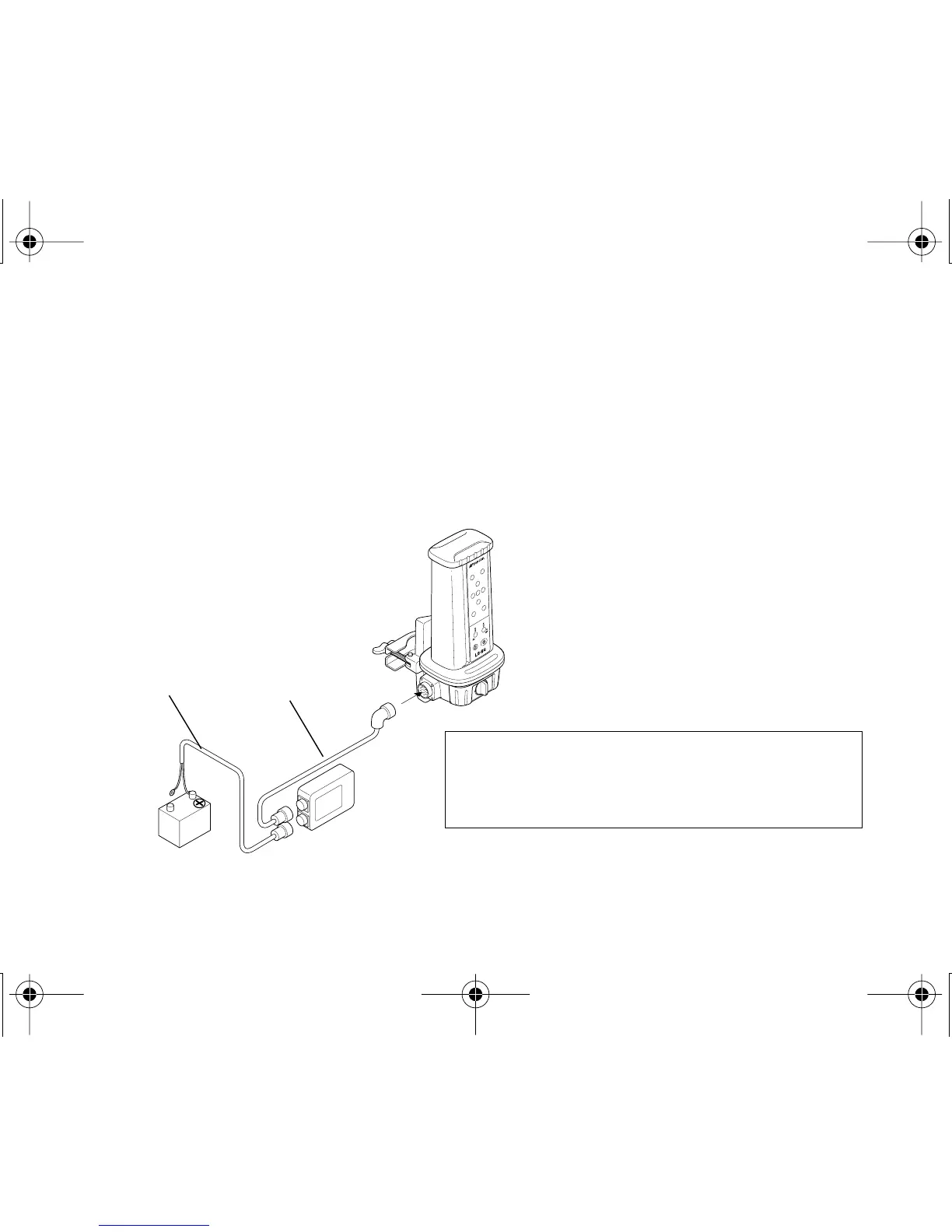

Connect the RD-2 remote display to the LS-B4 with
the JC-7 junction cable as shown. Connect the PC-
18 power cable to the machine battery. When RD-2
is connected, LS-B4 power switch is disabled.
RedBlack
Battery of
the machine
LS-B4E-1.book2 ページ ２００１年５月１８日 金曜日 午前１１時５９分
